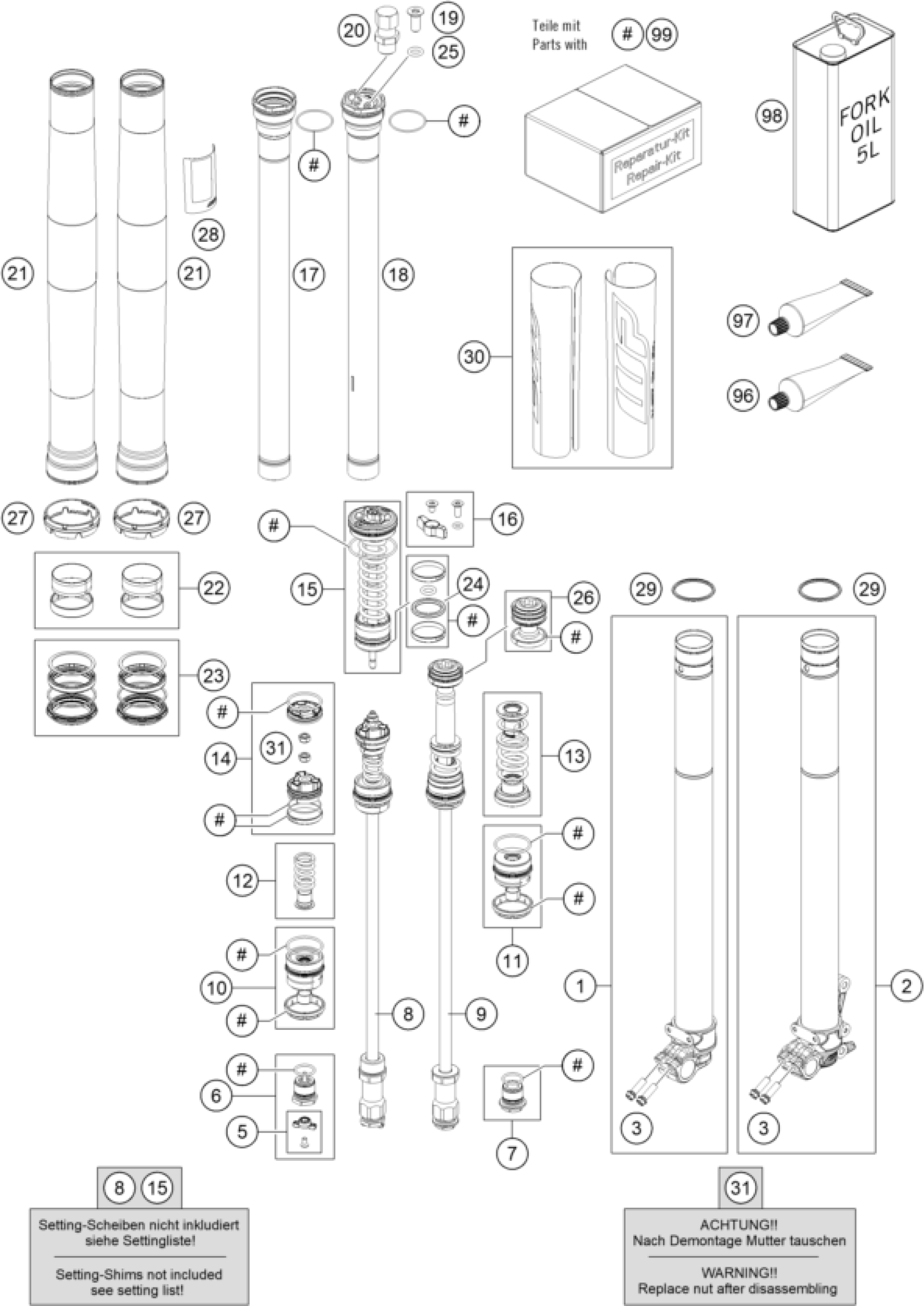

KTM 125 XC 2021 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp ri. with inner tube

48602046S2

$357.72

2

Axle clamp le. with inner tube

48602045S2

$378.76

3

HH collar screw M8x25

0025080256

$2.05

6

adjuster housing M20x1 cpl.

48602052S

$31.78

7

HH collar screw M20x1x18 cpl.

48601533S

$21.31

8

Pistonrod D12 M9x1 L385 cpl.

48601574S5

$355.57

9

piston rod 12x470 cpl.

48601501S2

$290.31

10

Screw sleeve M35,5x0,8 cpl

48602131S2

$54.03

11

Screw sleeve M35,5x0,8 cpl.

48602138S2

$47.86

12

Spring (13,9) 37-32 rebound cp

48600578S

$4.11

13

Spring (22) 60-30 rebound cpl.

48601820S

$25.89

14

Repair kit piston air fork

RP10035T

Unavailable

15

Basevalve cpl.

48602049S2

$159.78

16

adjuster kit screw cap compres

RP10029

Unavailable

17

screw cap M51x1,5 cpl.

48602048S1

$227.20

18

screw cap M51x1,5 cpl.

48602047S2

$270.77

19

ISA countersunk head screw M4x

00600003

$1.49

20

Schrader valve M8x1 cmpl.

48601494S

$24.98

21

fork outer tube 49.13x577 dt54

48602096

$257.40

22

Guide bushing set fork 48mm

R14047

Unavailable

23

Sealkit 48mm SKF black

RP10012

Unavailable

24

X-ring 26,57x3,53 FKM80

04100002

$5.23

25

O-ring 4x1,5 NBR70

50180222

$1.49

26

Piston 33,6x35,4 cpl.

48602135S

$51.98

27

Fork protection ring 60,1mm

48601948

$2.05

28

sticker "warning"

52000248

$16.73

29

Stroke indicator 48mm red

48602007

$4.11

30

Sticker set XACT 5 AER CC 182.

52000235SET

$37.77

96

Fuchs grease IPR (250g)

T14034

Unavailable

97

special grease AER Fork 400g

00062010053

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

99

Gasket kit air fork

RP10034T

Unavailable

5

Repair kit adjuster rebound re

RP10033T

Unavailable

31

Nut M6 h5,4 SW10

48602128

$1.49
