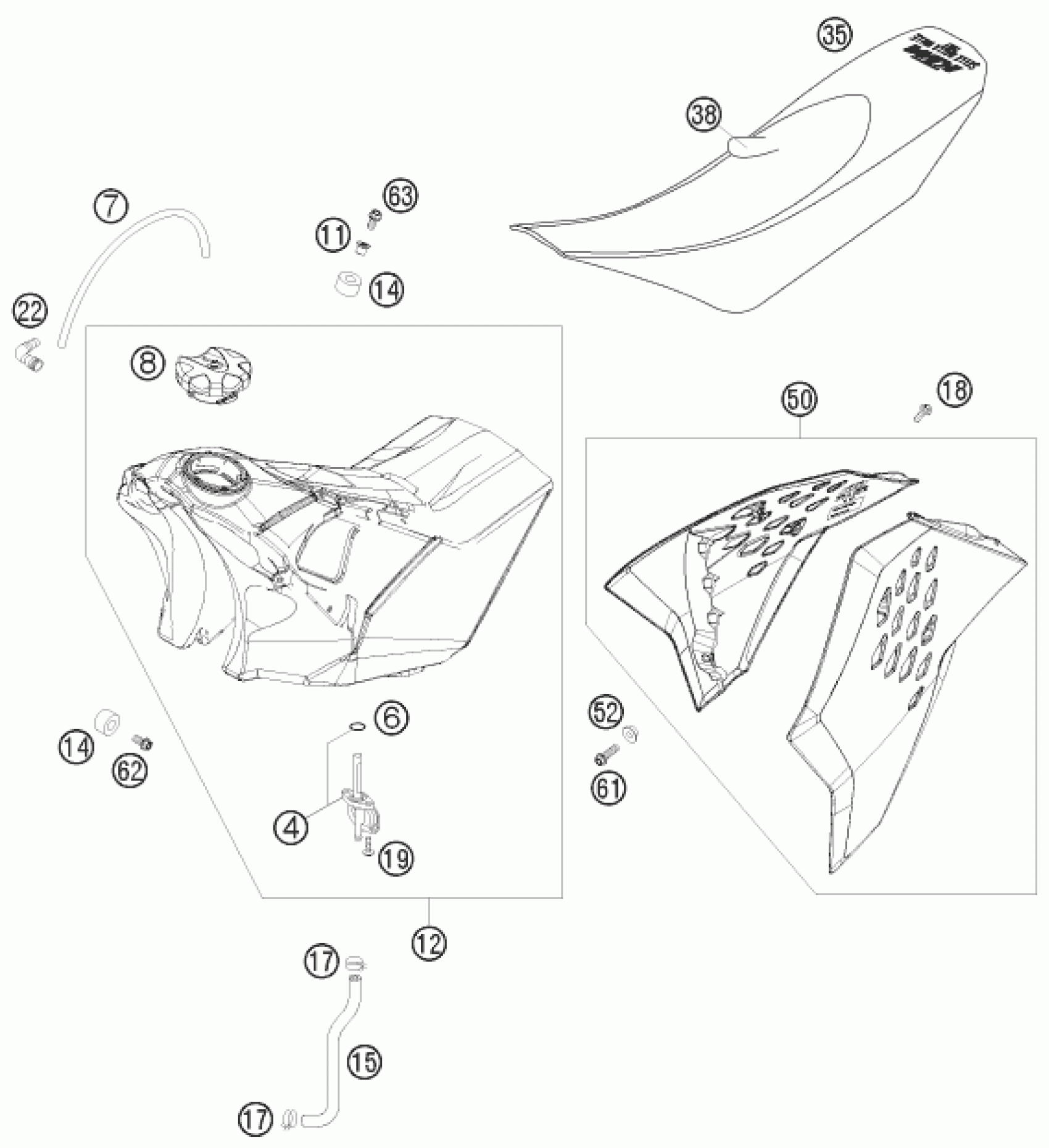

KTM 125 SXS 2008 TANK, SEAT Diagram

#

Description
Price

4

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

6

O-RING 13,00X2,30

0770130023

$4.11

11

TANK BUSHING 07

77307026000

$4.11

7

PVC-hose 5.6X10X270MM

78007000270

$2.61

8

TANK PLUG ORANGE/BLACK

7800700804404

$29.07

12

FUEL TANK CPL. SX 7,5L 08

7730701313330

$314.14

14

TANK ROLLER 12X26X12 '98

50307014000

$11.02

15

FUEL PREFORMED HOSE 2STROKE 07

54807016000

$12.33

17

CLAMP YDNAC 10128 12MM

58031005000

$3.08

18

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

19

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

35

SEAT SXS 08

77307140000

Unavailable

38

SEAT COVER 08

77307140050

Unavailable

50

SPOILER KIT BLACK SXS 2008

7730805400030G

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

61

HH collar screw M6x20 TX30

0025060206

$3.08

62

HH collar screw M6x12 TX30

0025060126

$3.08

63

COLLAR SCREW M6X27 TX

0024060273

$3.08
