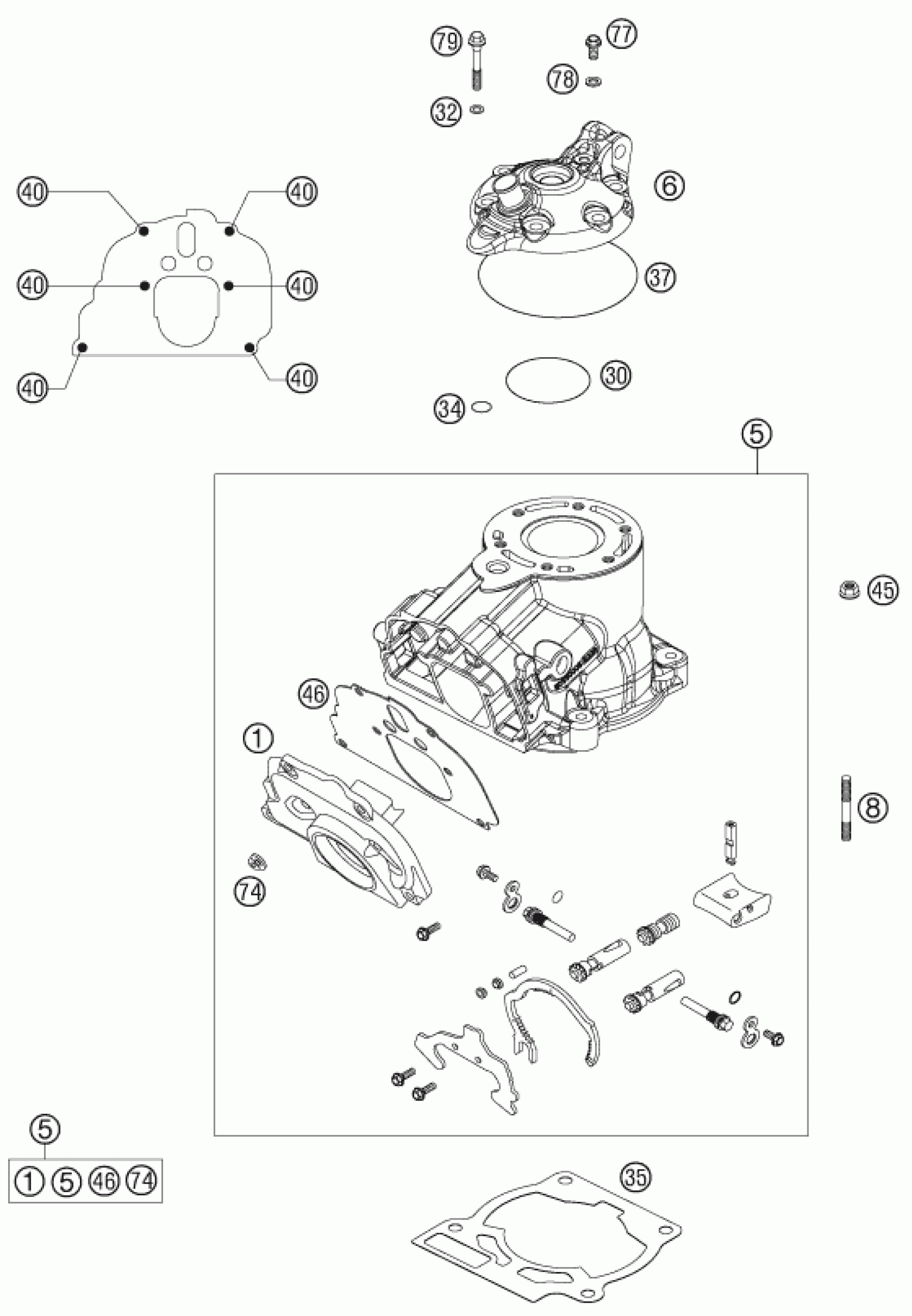

KTM 125 SXS 2007 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

INTERMEDIATE FLANGE 125 06

50337001200

$49.02

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

5

CYLINDER CPL. 07

SXS07125002

Unavailable

6

CYLINDER HEAD 125 SX/EXC 07

50330006500

$173.53

8

STUD DIN0835-M 8X27

0835080273

$3.08

30

O-RING 62,00X2,00 VITON

0770062020

$9.34

34

O-RING 12X2 VITON GREEN

0770012021

$2.05

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

37

O-RING 86X2 VITON75SHORE GREEN

0770086020

$6.07

40

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

45

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

46

INTERMED. GASKET 125 06

50337046200

$8.03

74

RETAINING PLATE

51005074000

$3.08

77

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

78

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

79

CYL. HEAD BOLT M 7X30 WS=10

50330079000

$3.08
