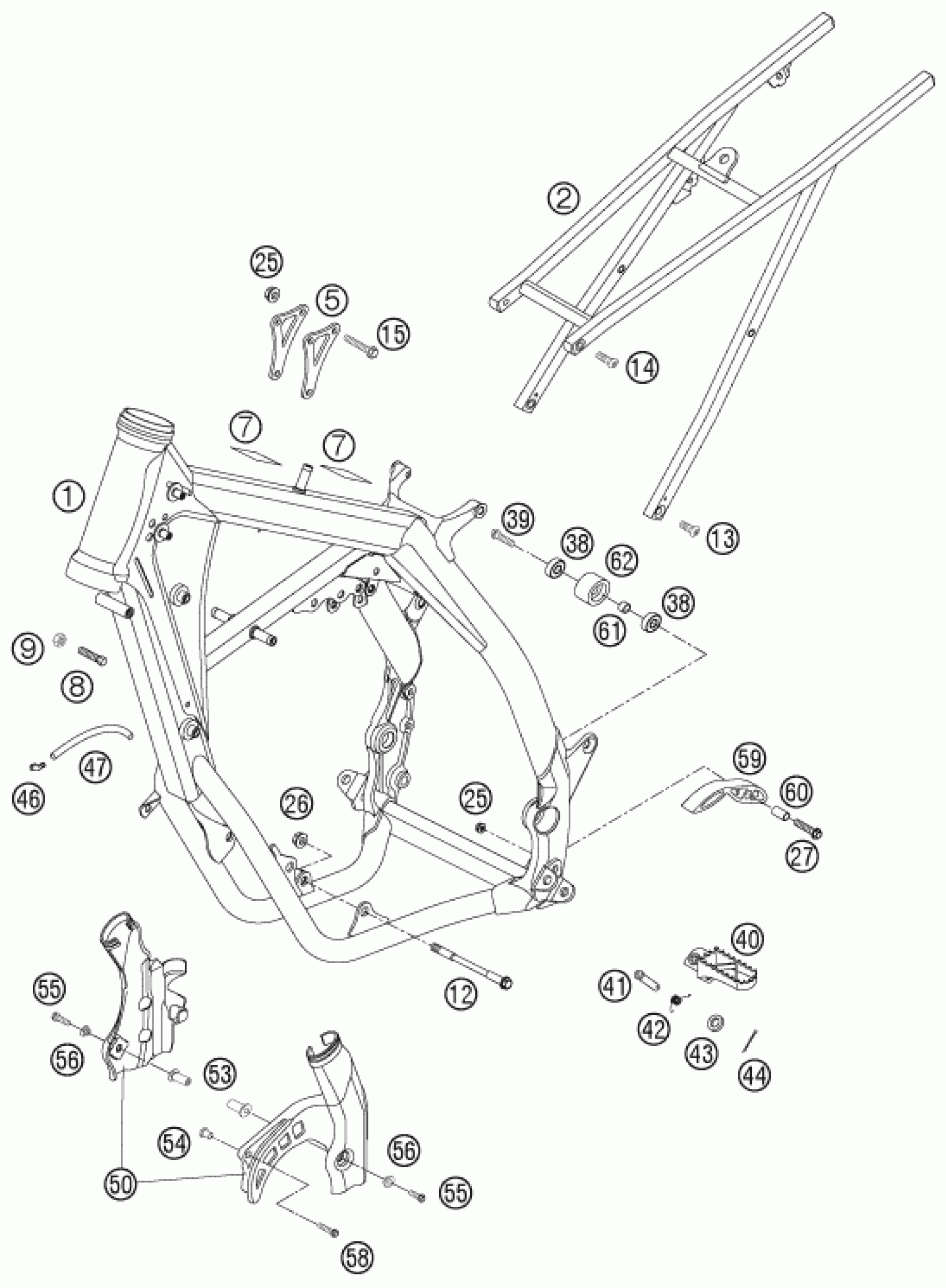

KTM 125 SXS 2006 FRAME Diagram

#

Description
Price

1

FRAME 125 SXS ''BD05''

SXS05125550

Unavailable

2

SUB FRAME CPL. 125 SX ''D4''

50303002344

$265.14

5

REINFORCING BRACKET 125 '98

50303013000

$14.15

7

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

12

engine brac.scr. M10x105 WS13

54603013000

$12.15

13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

14

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

25

Self locking nut M8 10.9

54310086200

$3.08

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

38

Grooved ball bearing 608 2RS C

0625006087

$21.40

39

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

40

FOOT PEG R/S SILVER 02

59003041250

$43.66

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

FRAME PROTECTION SET 05

54803094100

$20.94

53

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

54

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

55

HH COLLAR SCREW M 5X25 WS=6

0014050253

$3.08

56

Bush f. frame protection 03

54803092060

$4.11

58

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

59

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

60

BUSHING 8,2X10X20

51103053051

$4.11

61

BUSHING 8.2 X 12 X 6

74003021000

$3.08

62

CHAIN ROLL D=30MM

50203053000

$6.72
