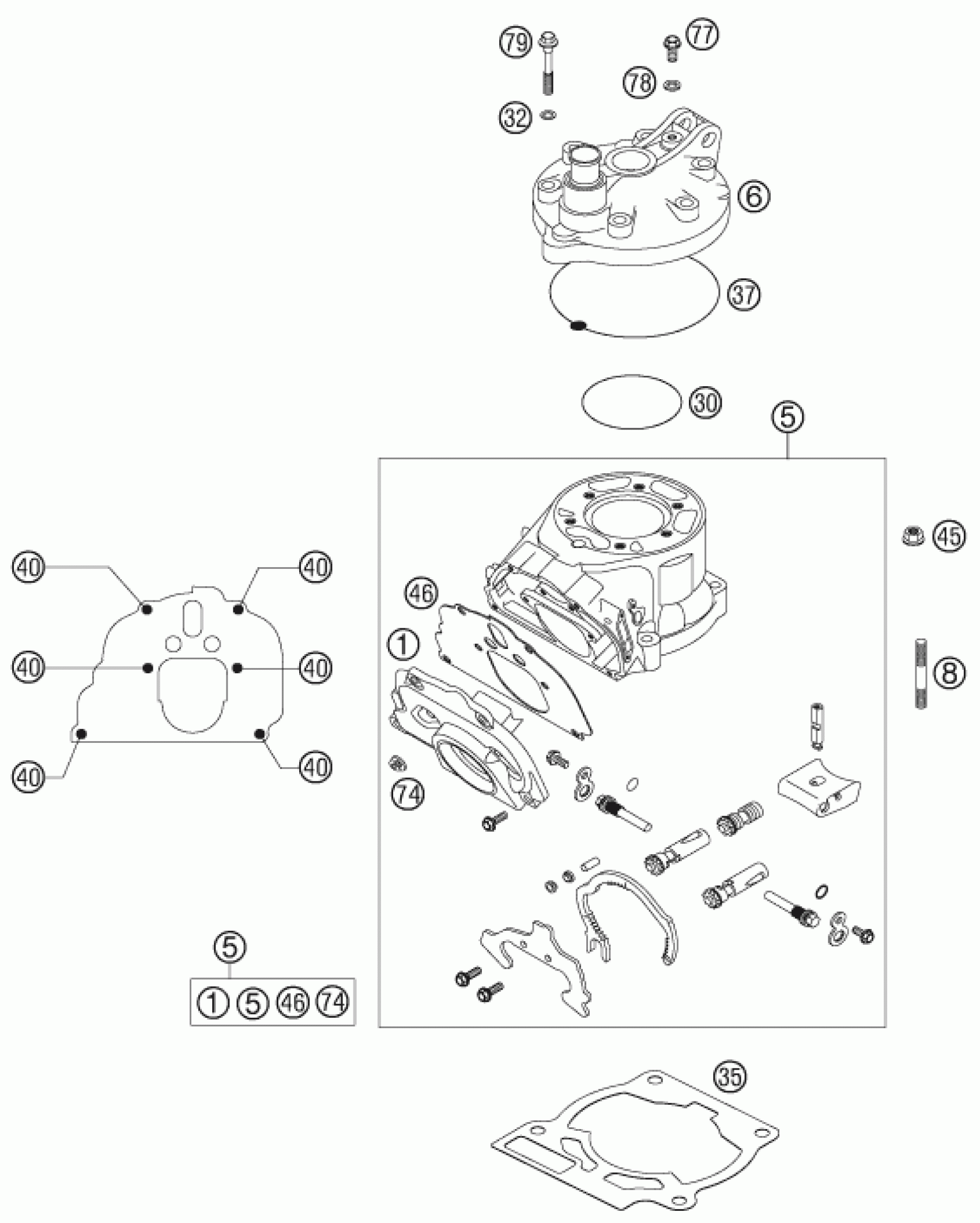

KTM 125 SXS 2006 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

INTERMEDIATE FLANGE 125 06

50337001200

$49.02

5

CYLINDER

SXS06125002

Unavailable

6

CYLINDER HEAD 125 SXS 05

SXS05125003

Unavailable

8

STUD DIN0835-M 8X27

0835080273

$3.08

30

O-RING 62,00X2,00 VITON

0770062020

$9.34

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

37

CYL.HEAD SEAL RING 125 2002

50330137000

$12.43

40

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

45

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

46

INTERMED. GASKET 125 06

50337046200

$8.03

74

RETAINING PLATE

51005074000

$3.08

77

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

78

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

$9.90
