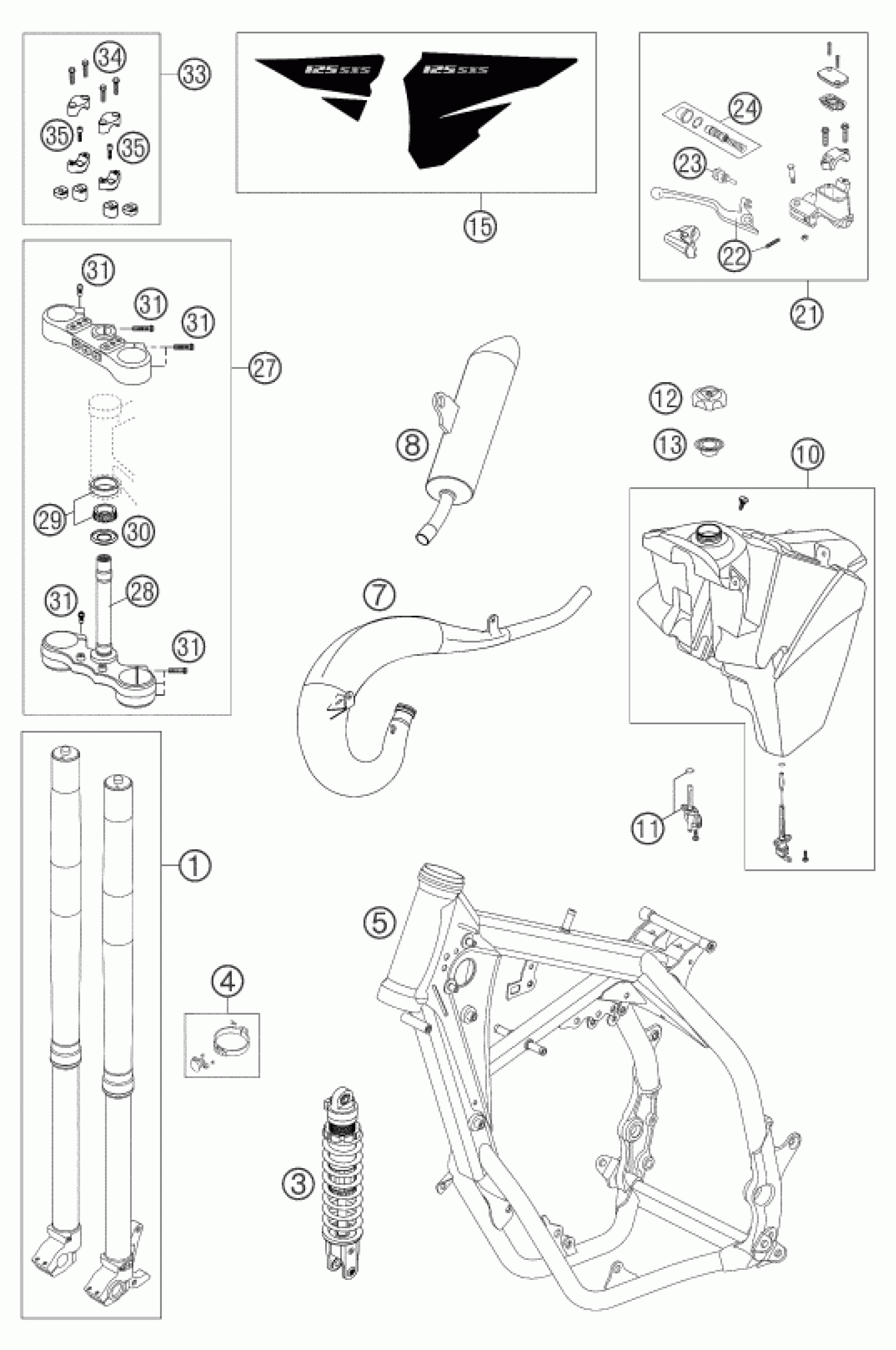

KTM 125 SXS 2004 NEW PARTS Diagram

#

Description
Price

1

% FORK 4860 MXMA 48MM

1418Y760

$1,522.47

3

% MONOSHOCK 5018 PDS SXS

1218Y778

$1,256.24

4

% FACTORY START

SXS04540100

Unavailable

5

FRAME 125 SXS 04

SXS04125050

Unavailable

7

EXHAUST PIPE 125 SXS 2001

SXS00125501

Unavailable

8

* SILENCER 125 SXS 2001

SXS00125551

Unavailable

10

FUEL TANK CPL. 9L 03

5030711320044

$236.22

11

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

12

SXS FUEL TANK CAP

SXS03540700

$12.44

13

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

15

DISPLACEME. STICKER 125 SXS 04

50308191500

Unavailable

21

HAND BRAKE CYLINDER CPL. SX 05

54813001000

$146.49

22

HAND BRAKE LEVER + SPRING '05

54813002000

$30.94

23

ADJUSTING SCREW CPL. SX 2005

54813007000

$28.88

24

REP.SET PISTON D=10MM SX 05

54813008000

$51.14

27

%TRIP.CLAMP KIT MILLED CPL18MM

59501099018

Unavailable

28

FORK TUBE L=244 '91

50101033100

$85.17

29

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

30

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

31

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

33

% HANDLEBAR SUPPORT CPL.D=28MM

59501039044

Unavailable

34

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

35

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

35

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

35

AH SCREW DIN6912-M10X45 10.9

0912100456

Unavailable
