Partiron

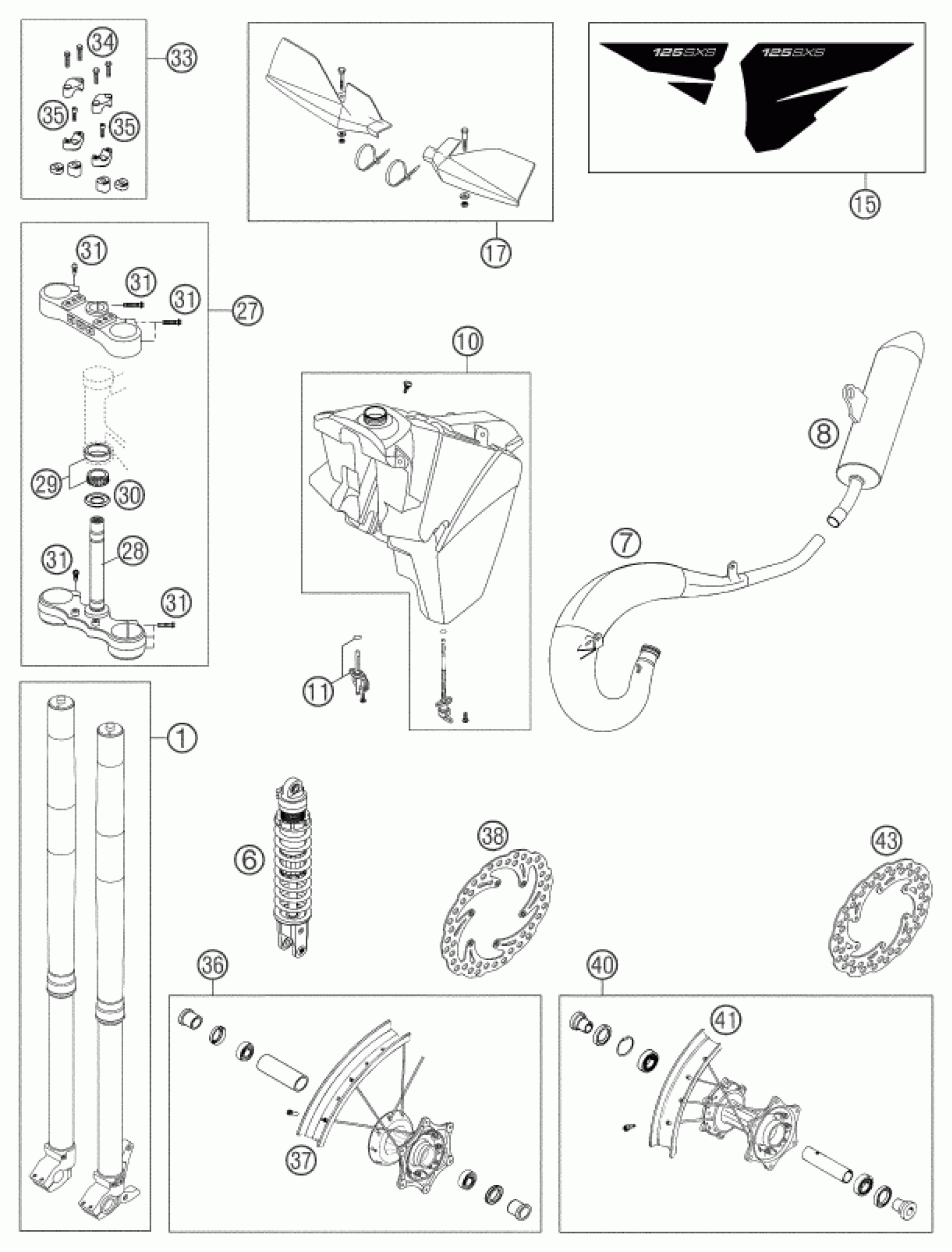

KTM 125 SXS 2003 NEW PARTS Diagram

#

Description
Price

1

% FRONT FORK 4860 MXMA D=48MM

1418X740

Unavailable

6

% MONOSHOCK 5018 PDS 125 SXS

1218X764

Unavailable

7

EXHAUST PIPE 125 SXS 2001

SXS00125501

Unavailable

8

* SILENCER 125 SXS 2001

SXS00125551

Unavailable

10

FUEL TANK CPL. 9L 03

5030711320044

$236.22

11

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

15

DISPLACEM. STICKER 125 SXS 03

50308191200

Unavailable

17

HAND GRD CPL. L/S+R/S ORA.03

5480207900004

Unavailable

17

HAND GUARD L/S+R/S BLA.03

5480207900030

Unavailable

27

*TRIP.CLAMP KIT MIL'D CPL.14MM

59501099014

Unavailable

28

FORK TUBE L=244 '91

50101033100

$85.17

29

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

30

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

31

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

33

% HANDLEBAR SUPPORT CPL.D=28MM

59501039044

Unavailable

34

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

35

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

35

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

35

AH SCREW DIN6912-M10X45 10.9

0912100456

Unavailable

36

* FRONT WHEEL 1,6X21"DID SCHW.

5480900104430

Unavailable

37

FRONT RIM U-SHAPE 1,6X21"DID

5900907000030

Unavailable

38

BRAKE DISC FRONT D=260MM 03

54809060100

$223.83

40

* REAR WHEEL CPL.2,15X19" BLA.

5481000114430

Unavailable

41

* RIM REAR U-SHAPE 2,15X19"DID

5901007010030

Unavailable

43

BRAKE DISC REAR D=220MM 03

54810060000

$141.27
