Description

Price

0

SIDE COVER R/S BLACK '99

5030804200030

$21.93

1

1418V714LS

Unavailable

2

1418V714RS

Unavailable

3

BOT.TRIP.CL.CPL.X=20MM/D=60M

59001032120

Unavailable

4

HANDLEBAR PAD 05

59002002000

$15.84

5

* CABLE TIE 290 X 3,8 MM

44011176290

Unavailable

6

* SHOCK ABSORBER PDS 125 SXS

1218V742

Unavailable

7

EXHAUST PIPE 125 SXS 2001

SXS00125501

Unavailable

8

* SILENCER 125 SXS 2001

SXS00125551

Unavailable

9

% FENDER REAR SX BLACK 02

5030801300030

Unavailable

10

SIDE COVER L/S BLACK '99

5030804100030

Unavailable

11

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

12

SPACER ALU 6,3X16X10 01

50307113150

Unavailable

15

DECAL SET 125 02

50308092100

$16.97

16

* STARTNUMBER PLATE WHITE SX

50308088401

Unavailable

20

59009001044

Unavailable

21

FRONT RIM U-SHAPE 1,6X21"DID

5900907000030

Unavailable

25

* REAR WHEEL 2,15X19" DID BLAC

59010001144

Unavailable

26

* RIM REAR U-SHAPE 2,15X19"DID

5901007010030

Unavailable

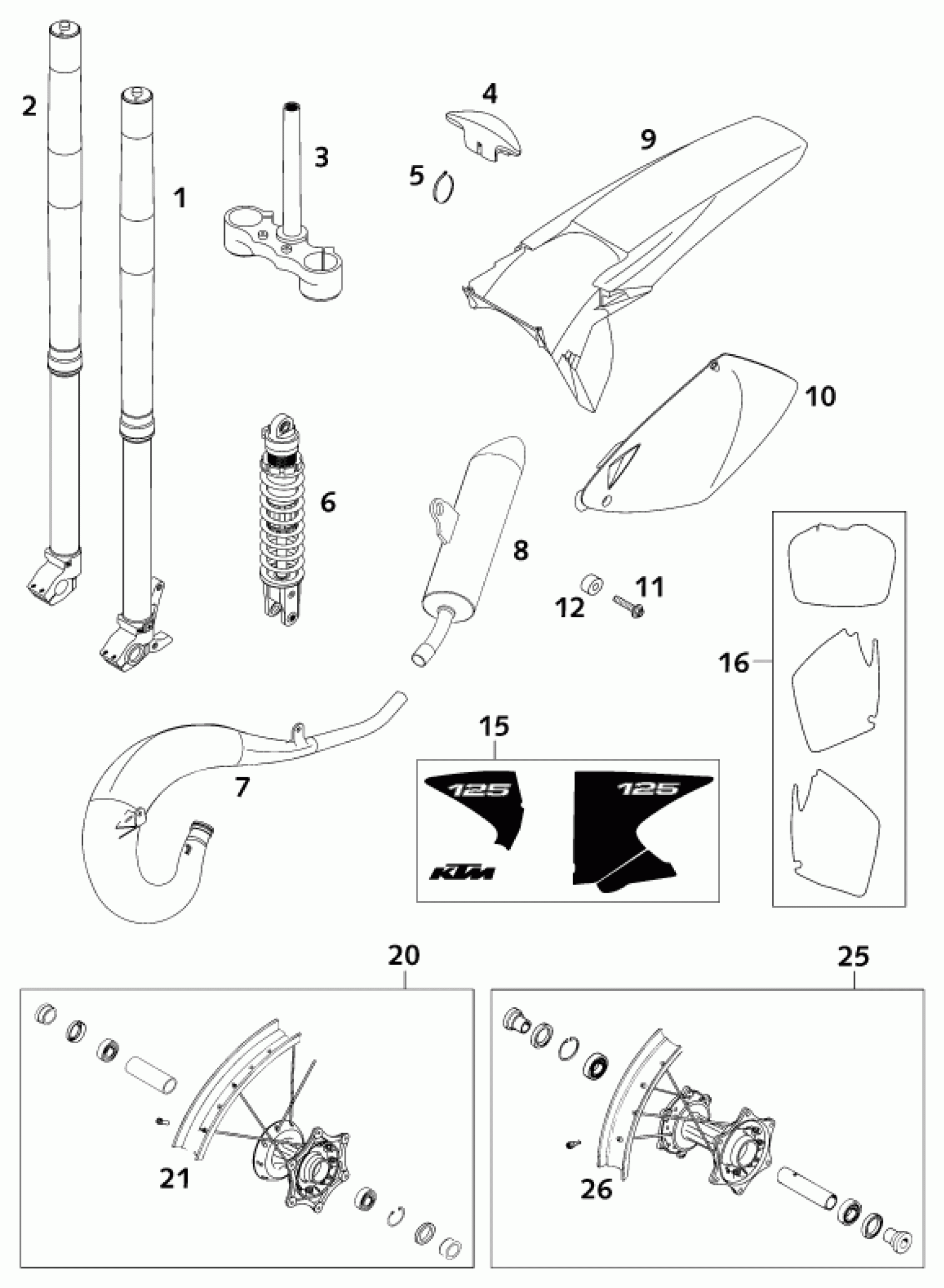

KTM 125 SXS 2001 NEW PARTS Diagram

SIDE COVER R/S BLACK '99

BOT.TRIP.CL.CPL.X=20MM/D=60M

HANDLEBAR PAD 05

* CABLE TIE 290 X 3,8 MM

* SHOCK ABSORBER PDS 125 SXS

EXHAUST PIPE 125 SXS 2001

* SILENCER 125 SXS 2001

% FENDER REAR SX BLACK 02

SIDE COVER L/S BLACK '99

SPECIAL SCREW T60 6X30 WS=6

SPACER ALU 6,3X16X10 01

DECAL SET 125 02

* STARTNUMBER PLATE WHITE SX

FRONT RIM U-SHAPE 1,6X21"DID

* REAR WHEEL 2,15X19" DID BLAC

* RIM REAR U-SHAPE 2,15X19"DID
