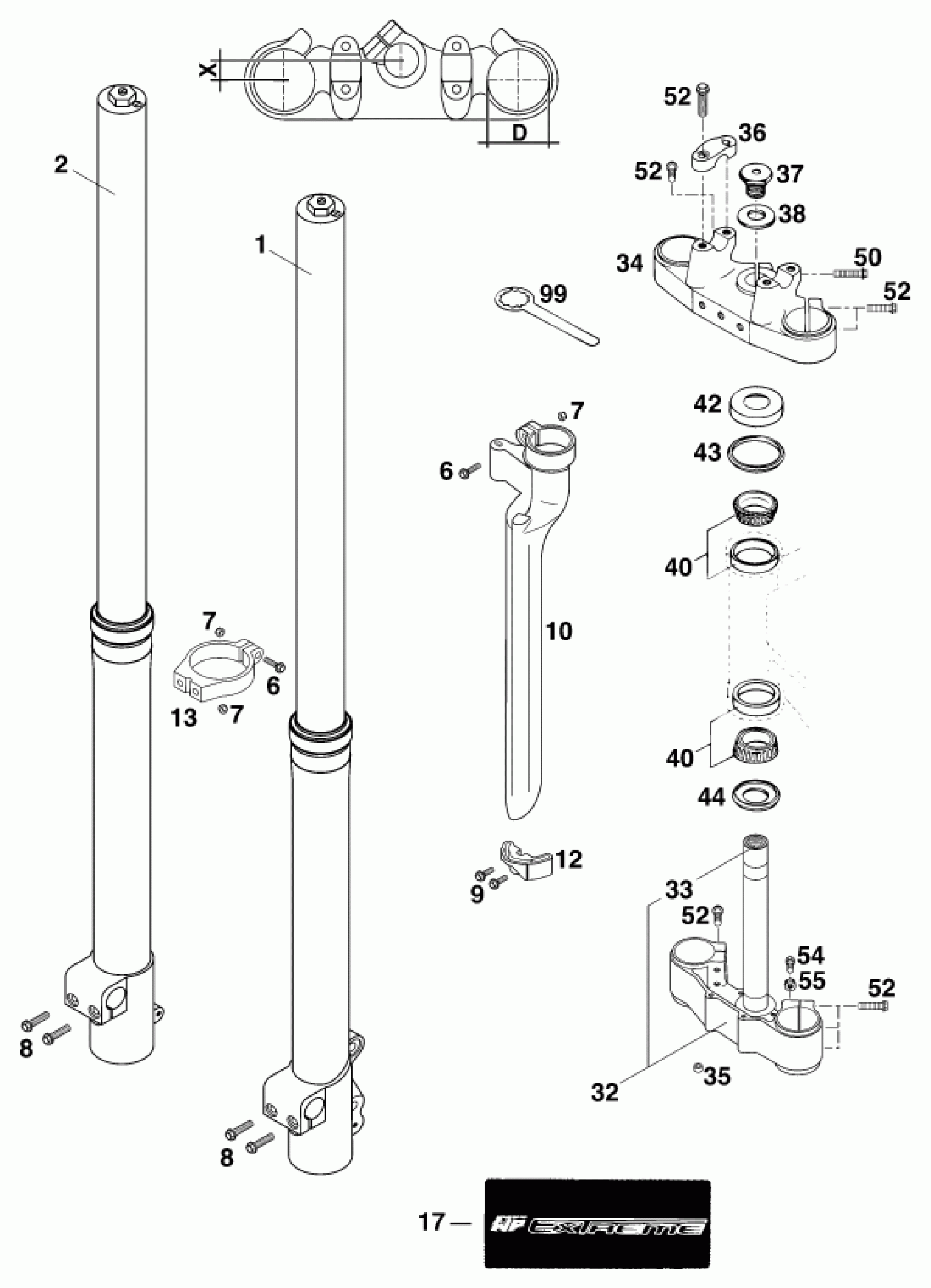

KTM 125 SX '99 <1999> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

0

FORK PROTECTOR R/S BLACK '97

50301093000

$10.03

0

FORK PROTECTION GUIDE R/S '97

5460139000030

$3.44

1

FORK LEG L/S WP 125 SX '99

0918T767LS

Unavailable

2

FORK LEG R/S WP 125 SX '99

0918T767RS

Unavailable

6

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

7

Self locking nut DIN 985 M5

0985050003

$2.05

8

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

9

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

10

FORK PROTECTOR L/S BLACK '97

50301092000

$10.03

12

FORK PROTECTION GUIDE L/S '97

5460129000030

$3.44

13

CLAMP PROTECTOR GUIDE '98

50301090250

$6.39

17

DECAL ''WP EXTREME''

50308093000

$16.70

32

BOTTOM TRIPLE CLAMP14MM/D=50MM

50301032014

$180.85

33

FORK TUBE L=244 '91

50101033100

$85.17

34

TOP TRIPLE CLAMP X=14MM/D=50MM

50301034014

$91.54

35

SPACER BUSHING 6X10X5

50301089000

$2.05

36

HANDLEBAR CLAMP '

54601038000

Unavailable

37

HH SCREW M20X1,5

56401043000

$19.86

38

WASHER 21X38X3

56401044000

$5.00

40

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

42

STEERING HEAD COVER

54201086000

$8.50

43

STEARING HEAD GASKET TOP

54601184000

$7.10

44

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

50

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

52

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

54

SPECIAL SCREW M8X21 WS=13

50301037000

$4.43

55

Hexagon nut DIN934 M8

0934080003

$2.05

99

RING WRENCH WS=32

54212035000

Unavailable
