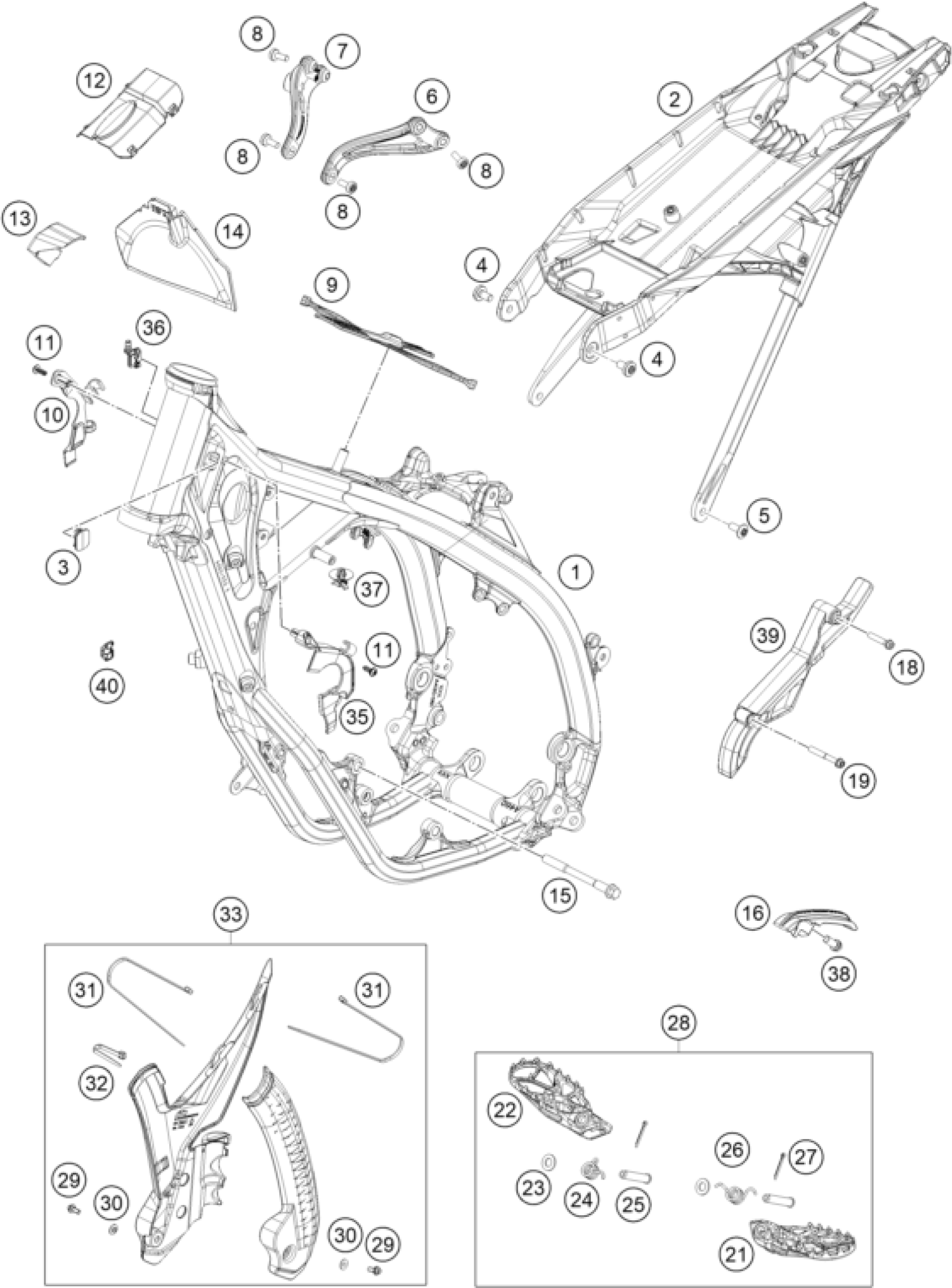

KTM 125 SX 2026 FRAME Diagram

#

Description
Price

1

Frame

A42003001200C1

$1,992.48

2

Subframe

A46003002000

$186.43

3

Cover control head sheet

79111013010

$2.05

4

Special screw M8x16 ISA45 self

09000008016U0

$1.49

5

Special screw M8X18 TORX45 SL

79003003000

$3.08

6

Engine brace left

A42003013000

$48.80

7

Engine brace right

A42003014000

$51.04

8

SHCS M8x20 TX45

0035080206S

$5.32

9

Fuel tank rubber

A46007012100

$9.90

10

Cable bracket/throttle cable g

A46003099020

$4.11

11

EJOT PT screw K50x14

0081050141

$1.49

15

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

16

Chain slider below

A46003053000

$6.35

18

HH collar screw M8x20

0025080206

$2.05

19

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

21

Footpeg left

A46003140000

$78.91

22

Footpeg right

A46003141000

$78.91

23

washer DIN 125 A 10.5

0125100003

$2.05

24

Footrest spring right

A46003045000

$1.49

25

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

26

Footrest spring left

A46003044000

$1.49

27

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

28

Footpeg set

A46003137033

$127.81

29

HH collar screw M5x10 TX30

0025050106

$1.49

30

Bush f. frame protection 03

54803092060

$4.11

31

Cable tie 200/4.6mm black

44011076200

$1.49

32

CABLE TIE 140/2,5MM BLACK

44011076140

$1.49

33

Frame protection set

A46003094000C1

$37.20

35

Cable bracket

A46003099010

$4.11

36

wire holder / fuel ventilation

79107013010

$1.49

37

Cable bracket d8

79711013010

$1.49

38

HH collar screw M8x20

0025080206

$2.05

39

Front sprocket cover

A42003096000

$19.44

40

Cable protection

A49003099030

$4.39

12

Intake air cover

A49003002050

$12.80

13

Cover FIM-compliance KTM

A46006006000

Unavailable

14

Cover FIM-compliance 2 KTM

A49003002060

Unavailable
