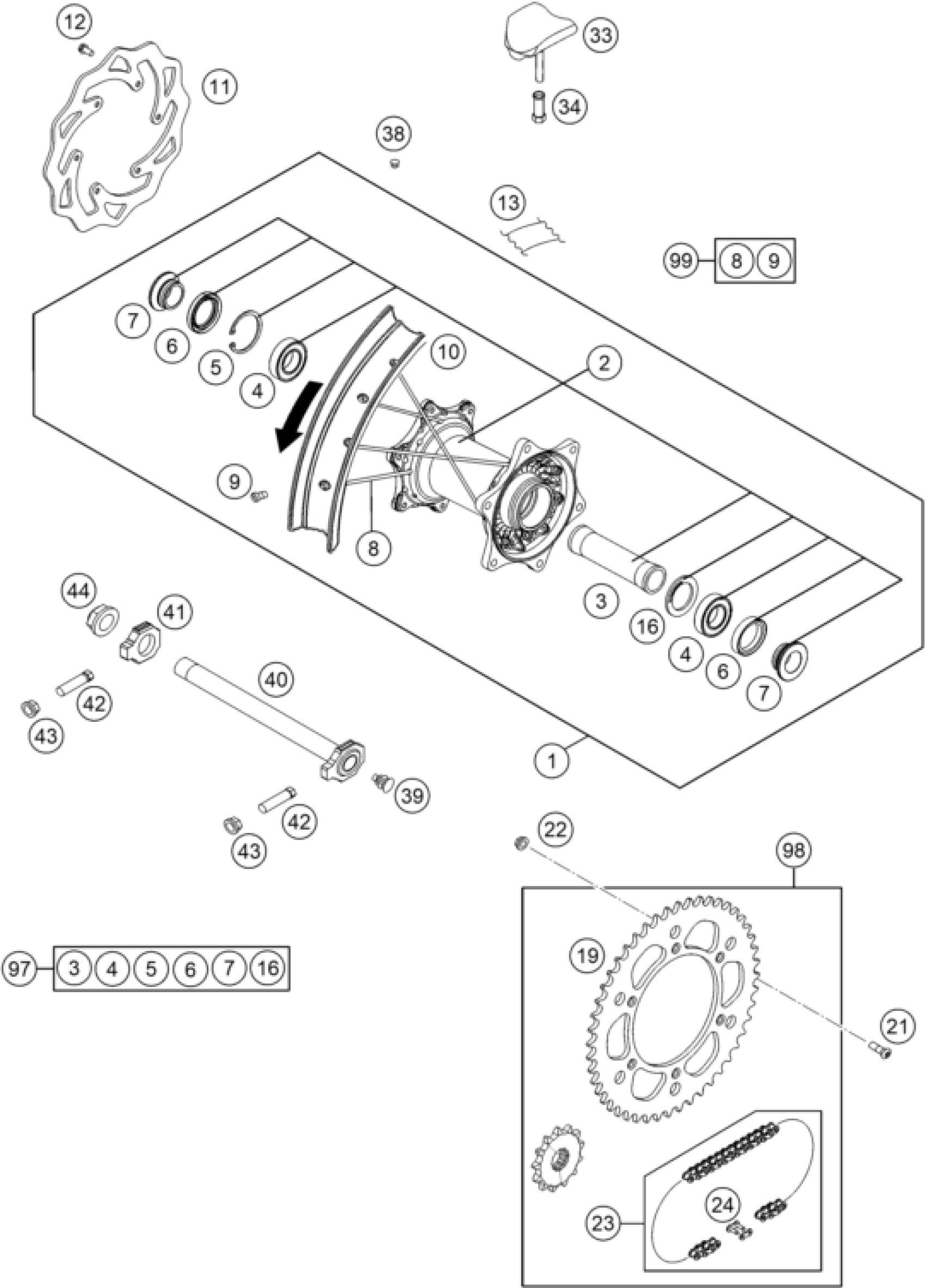

KTM 125 SX 2015 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL.2,15X19'' EXCEL

7771000114430

$799.42

2

REAR WHEEL HUB CPL. 2013

78010010244

$314.71

3

BEARING DISTANCE TUBE 121,5MM

77710011000

$22.34

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

DISTANCE BUSHING REAR WHEEL

77710016000

$31.97

8

SPOKE M4,5x205-19'' BLACK

7711007120530

$5.23

9

Spoke nipple M4.5 AL

77109072000

$3.08

10

RIM 2,15''X19'' EXCEL BLACK15

7711007000030

$257.30

11

BRAKE DISC REAR 220

77310060000

$127.62

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

Tube protector 18" and 19"

50310073200

$13.27

16

DISTANCE RING

77710015000

$3.08

19

REAR SPROCKET 48-T

7771015104801

Unavailable

19

REAR SPROCKET 50-T

7771015105001

$56.00

19

REAR SPROCKET 52-T

7771015105201

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

CHAIN 5/8X1/4'' MX

50310165118

$84.14

24

Connecting link for 5031016511

50310166000

$6.79

33

RIM LOCK 2,15''

78110090000

$20.56

34

NUT FOR WHEEL HOLDER

77110090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WHEEL SPINDLE CPL. '13

77710085044

$94.80

41

CHAIN TENSIONER R/S

77710084000

$19.72

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

97

REAR WHEEL REP. KIT

77710015010

Unavailable

98

DRIVETRAIN KIT SX 13T/50T

00050002037

Unavailable

99

SPOKE KIT REAR '19'

00050000963

Unavailable
