Description

Price

1

HANDLEBAR RENTHAL SX 28MM 08

7730200110017

$148.47

2

BAR PAD

77302002000

$29.74

10

THROTTLE GRIP CPL. 09

54802010100

$67.31

12

PROTECTION COVER '97

50302020000

$19.16

14

THROTTLE C. 2STROKE DOM./KEIH

51502091000

$39.45

15

Kill switch

50311089200

$37.58

17

GRIP-SET GRAY/ORANGE 09

54802021200

$22.71

18

Cable tie 200/4.6mm black

44011076200

$1.49

30

MASTER CYLINDER CPL. 9,5MM 09

50302030300

$350.95

31

CLUTCH LEVER CPL. 2009

50302031300

$45.15

32

REP.KIT PISTON 9,5MM 09

50302032100

$81.15

33

COVER HYDR. CLUTCH CPL. 09

50302033200

$28.14

34

RUBBER FOR RESERVOIR 09

50302034100

$19.16

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

37

MUD CAP 09

50302037100

$36.74

38

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

39

CLAMP, CYL. PIN, O-RING

83013005000

$53.85

40

PUSH ROD CPL. 09

50302046000

$31.78

41

HH collar screw M6x16 TX30

0025060166

$3.08

63

CLUTCH PIPE L=970MM 04

50332063200

$101.44

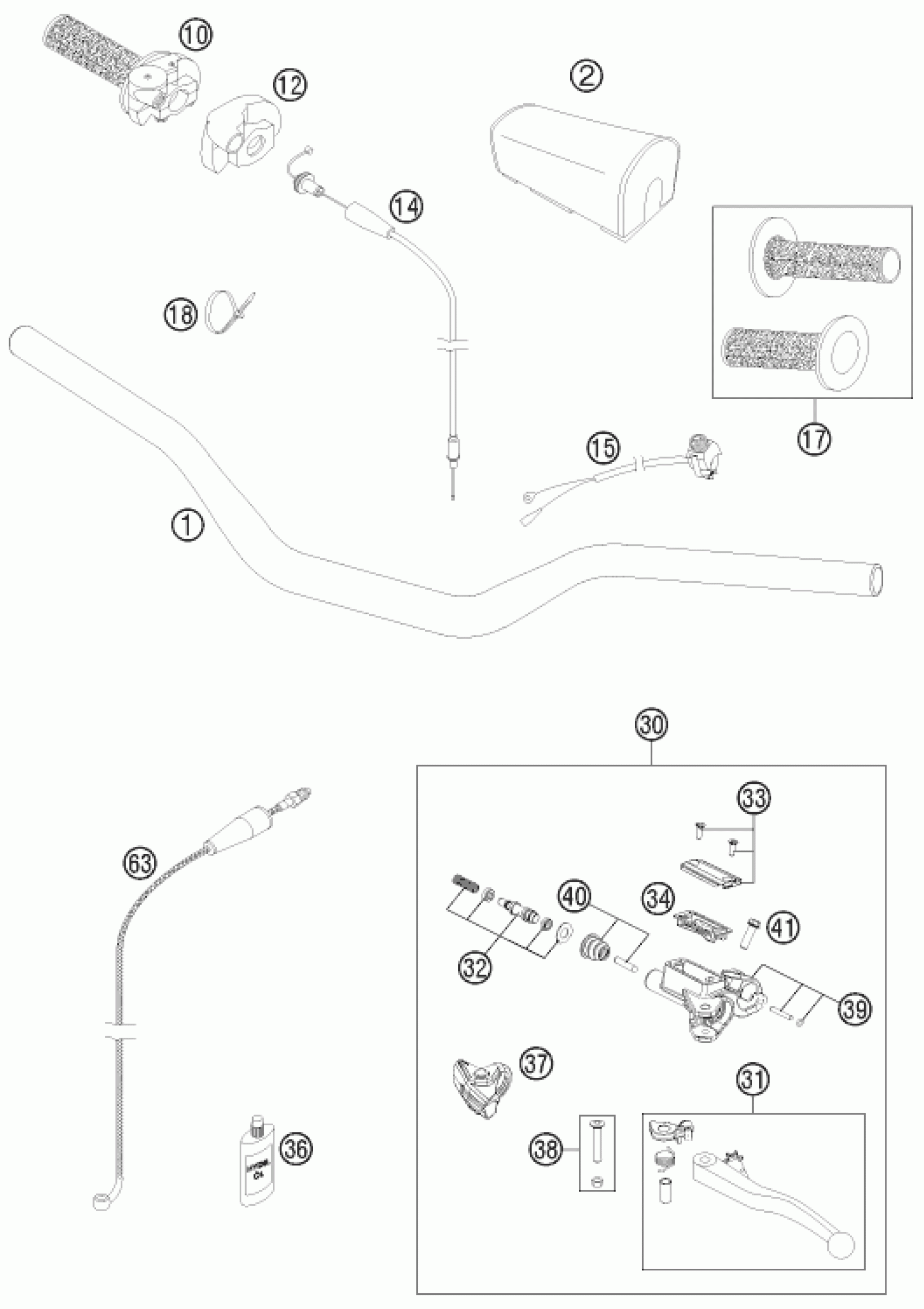

KTM 125 SX 2012 HANDLEBAR, CONTROLS Diagram
