Description

Price

7

RADIATOR L/S NATURE (45286)98

50335007000

$336.13

8

RADIATOR R/S NATURE (45285)98

50335008000

$302.31

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

23

ANGLE PIECE '97

50303089000

$5.23

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

26

RADIATOR HOSE INCL. Y-PART 03

50335026200

$27.88

34

RADIATOR PROTECTION LEFT '95

54635034200

$8.50

34

RADIATOR PROTECTION LEFT

5463503420004

Unavailable

25

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

27

RADIATOR HOSE 18X25 125/200'98

50335027000

$16.45

33

COVER FOR RADIATOR L/S BLACK

50335033000

Unavailable

35

RADIATOR PROTECT.RIGHT '95

54635134200

$6.82

35

RADIATOR PROTECTOR RIGHT

5463513420004

Unavailable

39

Cable tie 200/4.6mm black

44011076200

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

Washer DIN9021-A 6.4

0021060003

$2.05

42

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

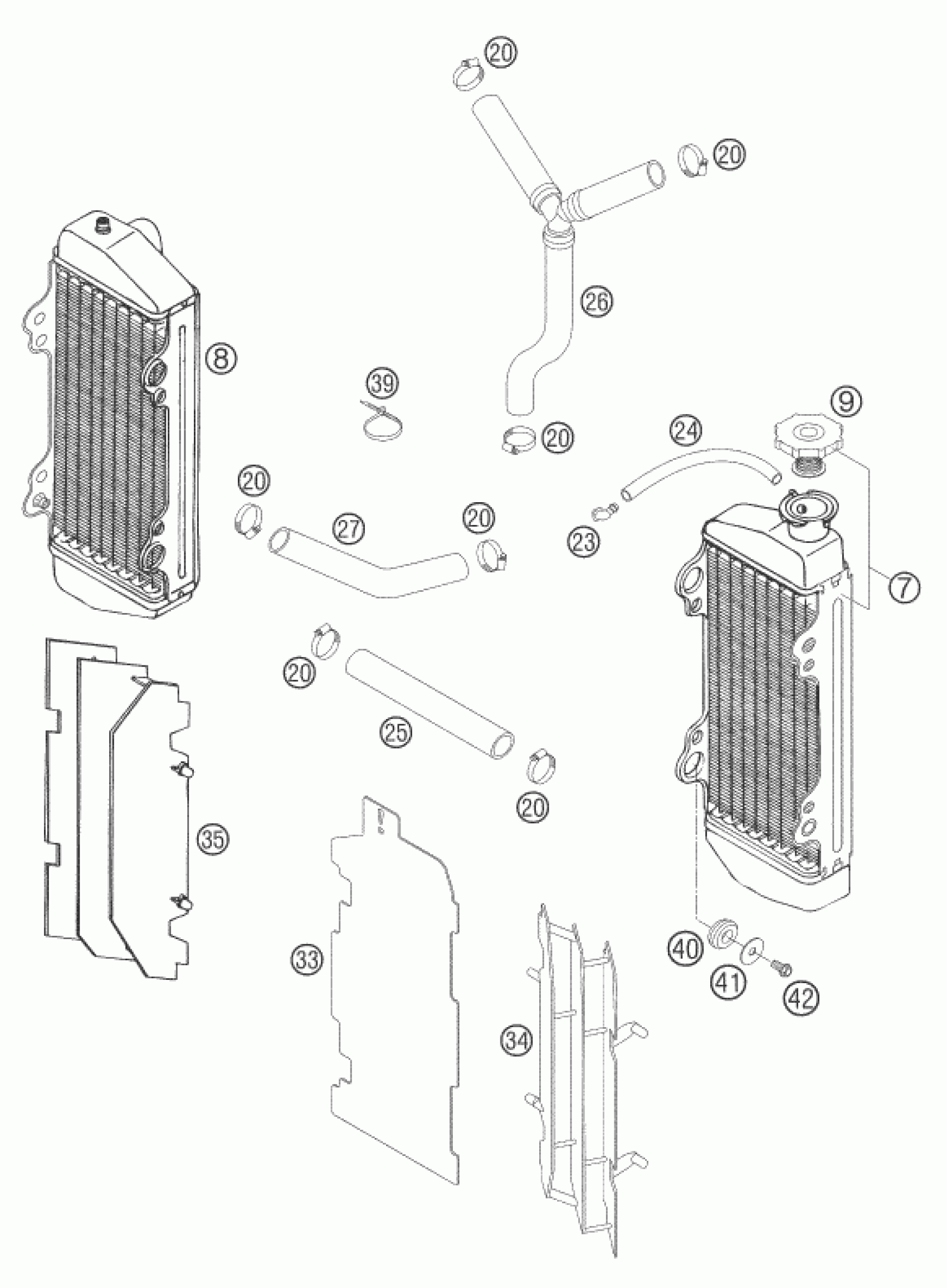

KTM 125 SX 2005 COOLING SYSTEM Diagram

RADIATOR L/S NATURE (45286)98

RADIATOR R/S NATURE (45285)98

RADIAT.CAP 20,3PSI (1,4BAR) 03

HOSE CLAMP GEMI 18-29

ANGLE PIECE '97

PVC-HOSE 6X9 MM PER METER

RADIATOR HOSE INCL. Y-PART 03

RADIATOR PROTECTION LEFT '95

RADIATOR PROTECTION LEFT

RADIATOR HOSE 18X25 PER METRE

RADIATOR HOSE 18X25 125/200'98

COVER FOR RADIATOR L/S BLACK

RADIATOR PROTECT.RIGHT '95

RADIATOR PROTECTOR RIGHT

Cable tie 200/4.6mm black

RUBBER SLEEVE D=12MM

Washer DIN9021-A 6.4

HH COLLAR SCREW M 6X12 WS=8
