REAR WHEEL

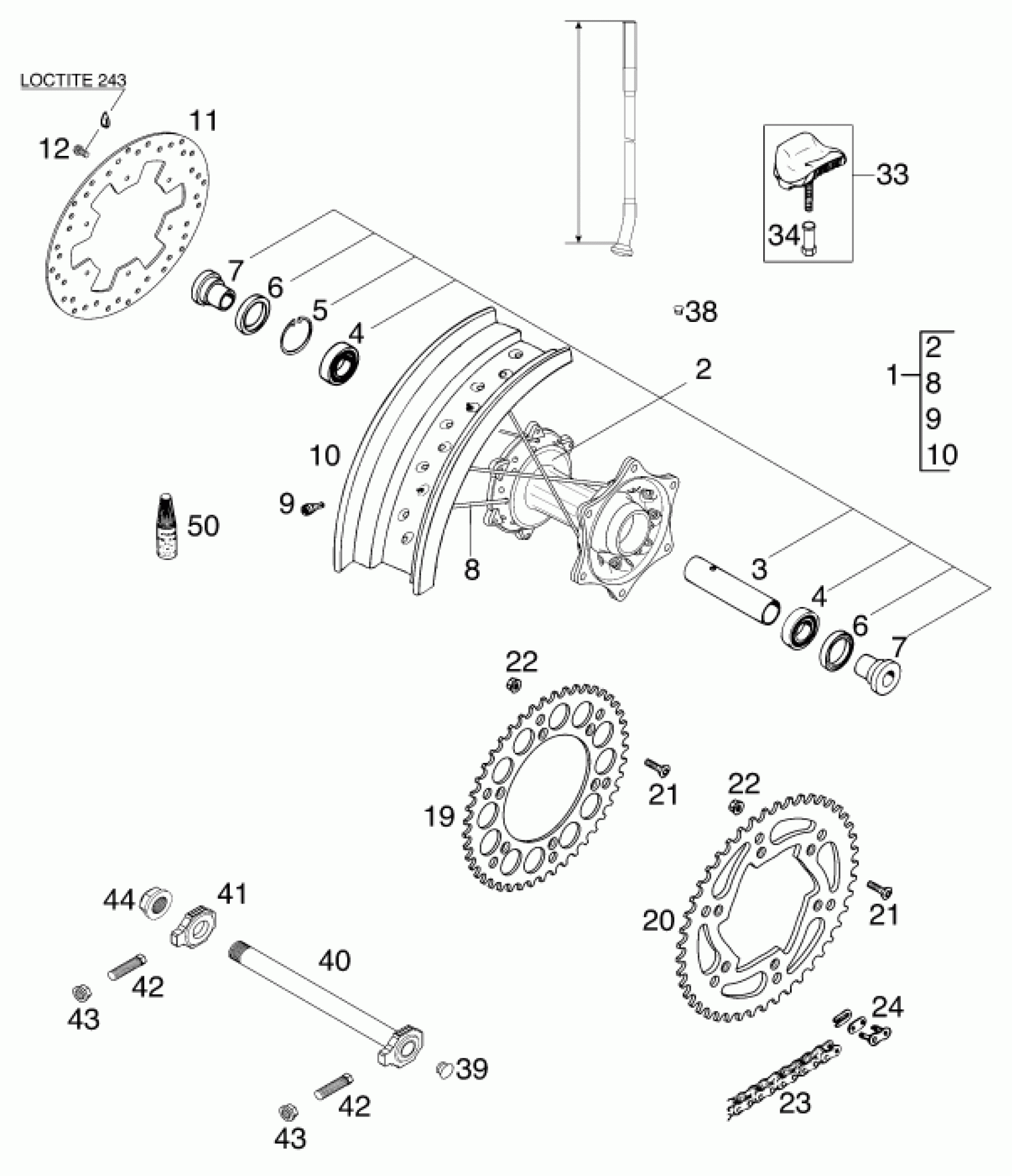

KTM 125 SUPERMOTO 80 2000 REAR WHEEL Diagram
#
Description
Price
1
R.WHEEL CPL.3,5X17"S.MOTO 2000
51210001044
Unavailable
2
REARWHEEL HUB CPL.125-380 '00
50310010044
$313.68
3
BUSHING SPACER TUBE 121,5 MM
56510011000
Unavailable
4
Grooved ball bear.6005 DDU2CG2
0625060058
$18.32
5
CIRCLIP DIN0472-47X1,75
0472047175
$3.08
6
Radial shaft seal 32X47X7 BSL
0760324771
$13.36
7
BUSHING FOR HUB
54610016000
$32.90
8
SPOKE M5X177-13,5G 17''
58309171100
$5.23
9
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
$2.05
10
REAR RIM 3,50X17'' STING'9
51110070100
Unavailable
11
REAR BRAKE DISC 220MM '96
51110060000
Unavailable
12
HH COLLAR SCREW M 6X12 W.LOC
0015060120
Unavailable
19
REAR SPROCKET 38-T
58310051038
$64.97
19
REAR SPROCKET 42-T
58310051042
Unavailable
19
REAR SPROCKET 40-T
58310151040
Unavailable
19
REAR SPROCKET 45-T
58310151045
Unavailable
20
REAR SPROCKET 48-T
58310151048
Unavailable
21
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$3.08
22
Self locking nut M8 10.9
54310086200
$3.08
23
51110065000
Unavailable
24
MASTER LINK CZ O-RING CHAIN
51110066000
Unavailable
33
RIM LOCK VM3 (2.15'')
54010100100
Unavailable
34
NUT FOR WHEEL HOLDER '96
50310090050
Unavailable
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
$3.08
40
WH. SPINDLE RE. CPL.265MM 00
50310085044
$78.91
41
Chain tension adjuster, right
50310084000
$20.66
42
SPEC. SCREW M10X1,25X40 WS=10
50304040000
$5.23
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
50
LOCTITE 243 BLUE 5 ML
6899785
$28.04
