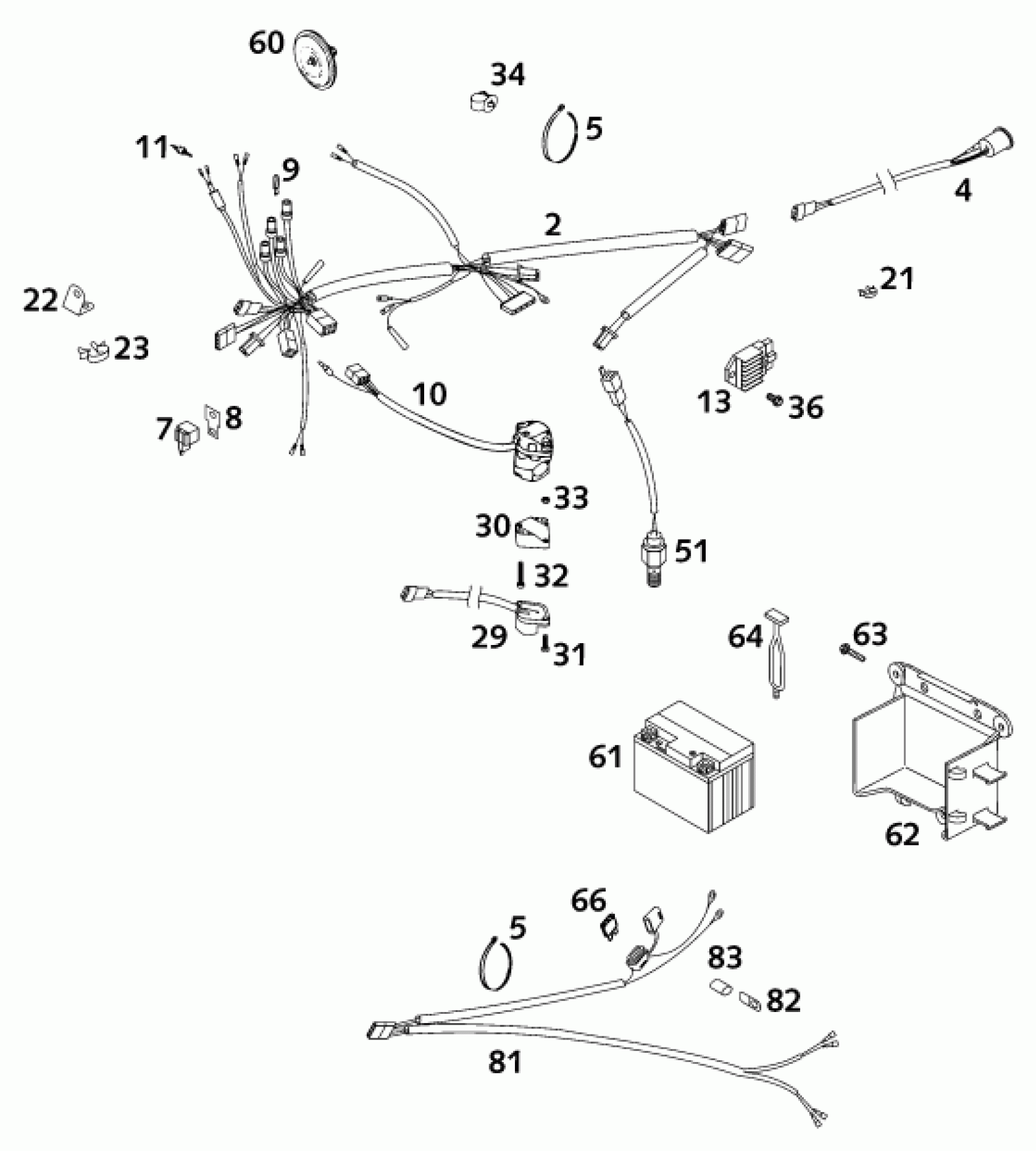

KTM 125 SUPERMOTO 100 2001 WIRING HARNESS Diagram

#

Description
Price

0

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

0

WIRING HOLDER 16MM

57013072100

Unavailable

2

WIRING HARN. KPL. 125 EXE 2000

51211075000

Unavailable

4

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

5

Cable tie 200/4.6mm black

44011076200

Unavailable

7

FLASHER UNIT 97

44611207200

$49.83

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

9

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

10

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

11

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

13

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

21

WIRING HOLDER 12MM

57013072000

Unavailable

22

RETAINING PLATE FOR BATTERY'97

54611090000

$4.06

23

FRAME ASSY

57013072200

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

33

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

34

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

36

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

60

DC HORN 12V NIKKO

54511060100

Unavailable

61

BATTERY 12V 3AH YUASA

51111008000

Unavailable

62

BATTERY CARRIER PLASTIC BLACK

59011055000

$10.84

63

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

64

RUBBER FOR SIDE STAND '98

50303025000

$5.10

66

Plug-in fuse, big 10A

58011109110

$2.05

81

FLASH.WIRINGHARN.REAR EXE 2000

51211081000

Unavailable

82

RETAINING PLATE

50031003000

$2.61

83

SHRINK HOSE 6,4/3,2 L=30 MM

50311025030

Unavailable
