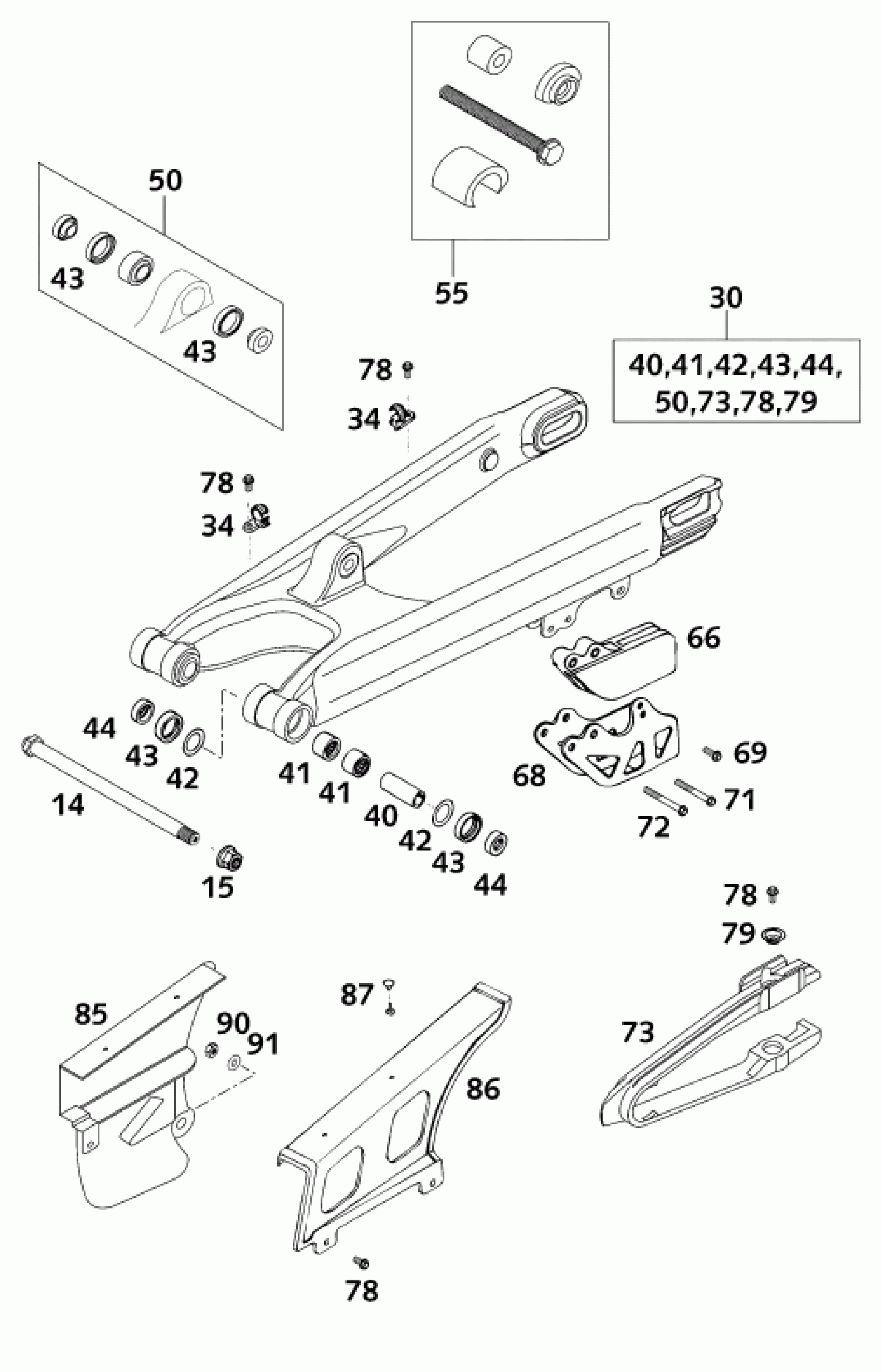

KTM 125 SUPERMOTO 100 2001 SWING ARM Diagram

SWINGARM BOLT 14X252 WS=22

50303014000

$39.35

Self locking nut M14x1.5 WS19

54603015000

$5.51

SWINGARM CPL.125/250 SXS 2000

50304030344

$619.59

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

Bushing sleeve 15x20x48

54603081000

$24.77

Needle bushing HK 2016 / 20x26

54603097000

$15.04

STOP DISK 22,2X31,7X1

54603036000

$3.08

radial shaft seal 25x32x7

0760253270

$6.63

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

PIVOT BEARING+BUSH. PDS '99

50304090044

$64.69

TOOL BEARING MOUNTING PDS

50329000044

$752.92

CHAIN GUIDE REAR '94

54607066100

$28.60

RETAINING PLATE CPL.

54607070144

$31.41

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

CHAIN GUARD '97

50304066000

$25.52

SPECIAL SCREW M 5,0X10

0009050103

$2.05

BUCKET

72210079000

$3.00

CHAIN GUARD SMALL EXC 2000

50304060100

$9.62

CHAIN GUARD LARGE EGS

54607460000

$33.77

HOLLOW RIVET TWO PARTS

20012062055

$3.08

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05
