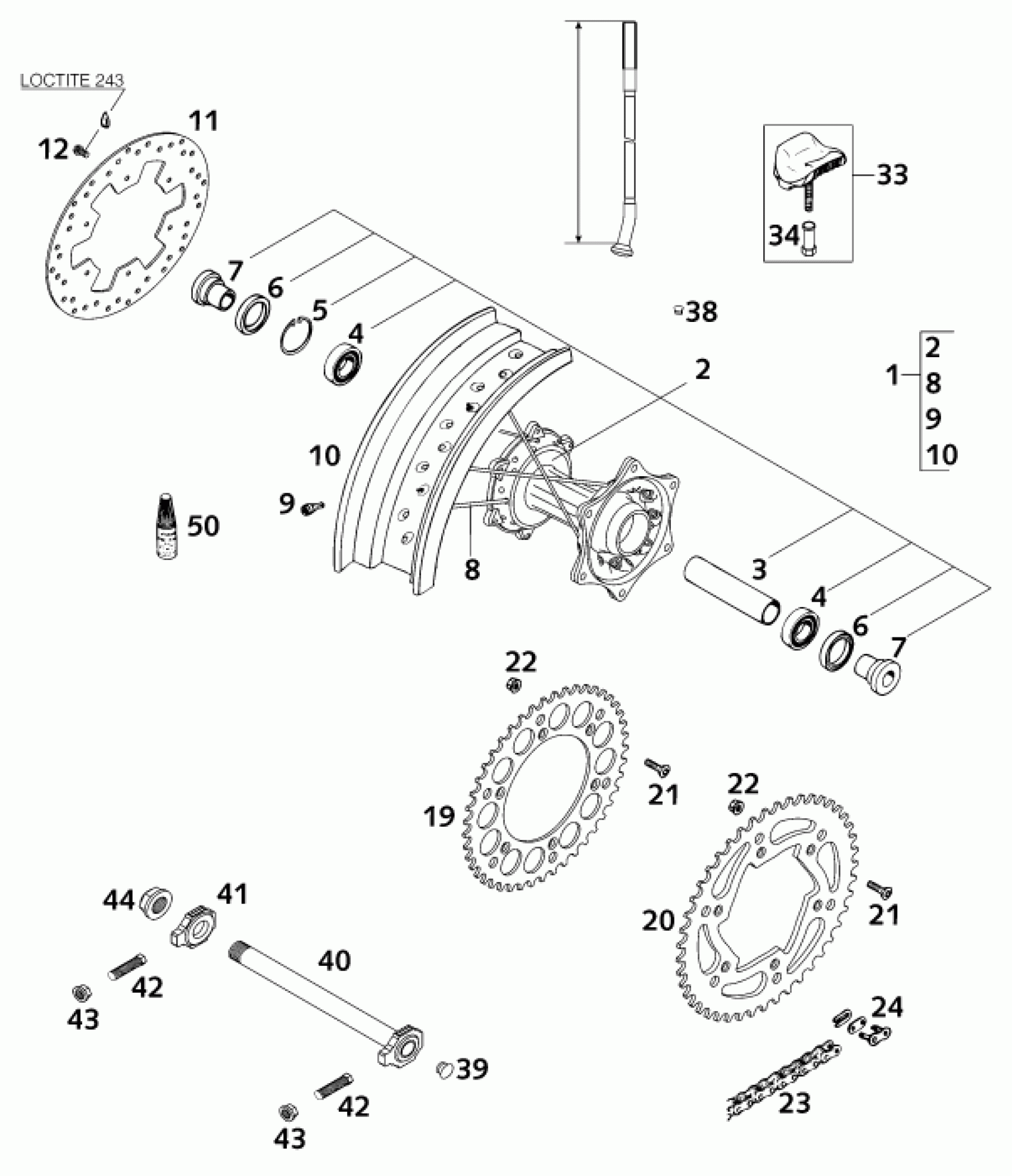

KTM 125 SUPERMOTO 100 2001 REAR WHEEL Diagram

#

Description
Price

1

R.WHEEL CPL.3,5X17"S.MOTO 2000

51210001044

Unavailable

2

REARWHEEL HUB CPL.125-380 '00

50310010044

$313.68

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

$22.34

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

BUSHING FOR HUB

54610016000

$32.90

8

SPOKE M5X177-13,5G 17''

58309171100

$5.23

9

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

10

REAR RIM 3,50X17'' STING'9

51110070100

Unavailable

11

REAR BRAKE DISC 220MM '96

51110060000

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

19

REAR SPROCKET 38-T

58310051038

$64.97

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 40-T

58310151040

Unavailable

19

REAR SPROCKET 45-T

58310151045

Unavailable

20

REAR SPROCKET 48-T

58310151048

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

22

Self locking nut M8 10.9

54310086200

$3.08

23

O-RING CHAIN''CZ 106 ROLLS

50310300106

Unavailable

24

MASTER LINK CZ O-RING CHAIN

51110066000

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

Unavailable

34

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

$3.08

40

WH. SPINDLE RE. CPL.265MM 00

50310085044

$78.91

41

Chain tension adjuster, right

50310084000

$20.66

42

SPEC. SCREW M10X1,25X40 WS=10

50304040000

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30

50

LOCTITE 243 BLUE 5 ML

6899785

$28.04
