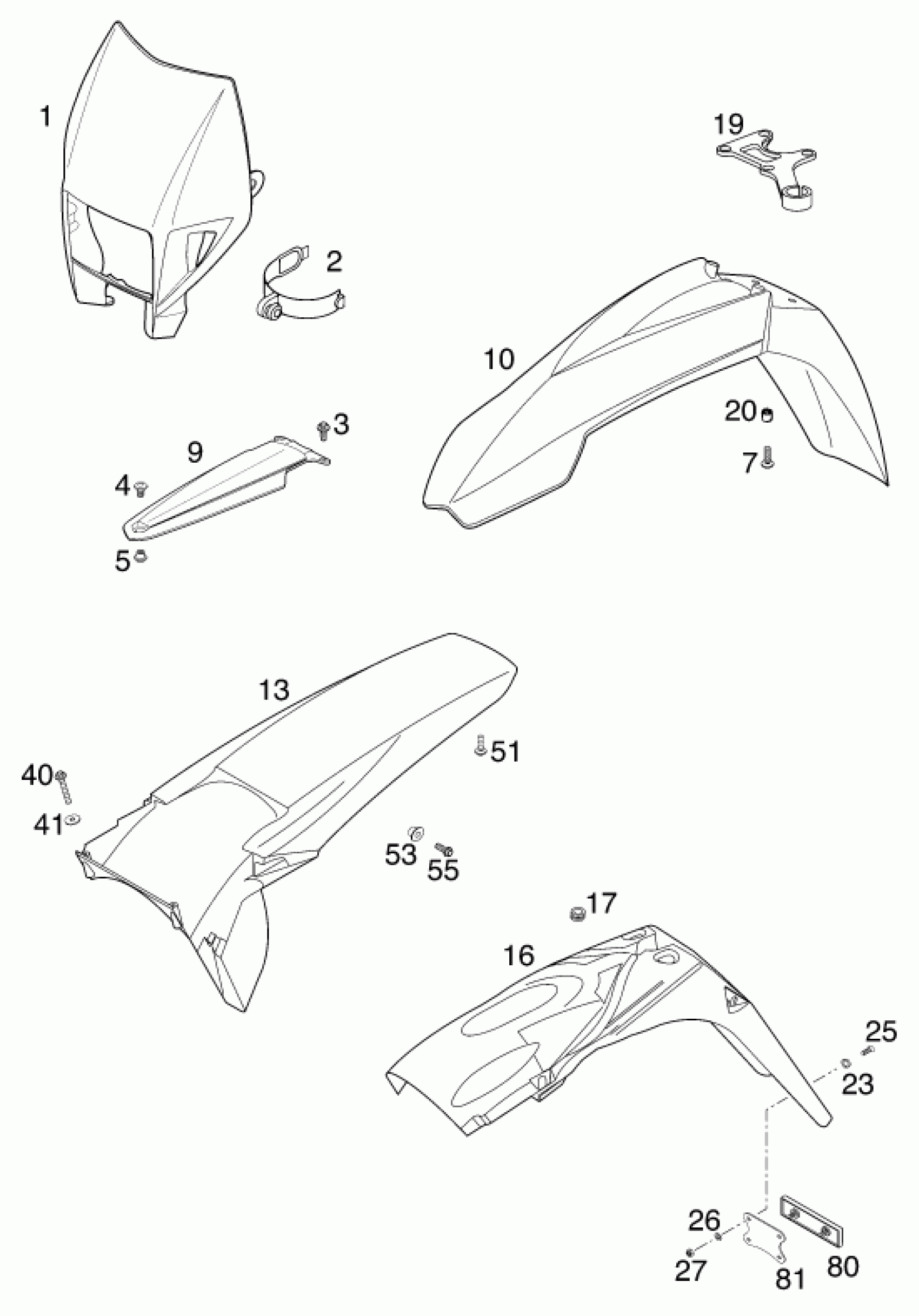

KTM 125 SUPERMOTO 100 2001 MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK EXC/EGS'99

5030800100004

$29.35

2

MASK RUBBER UFO WP '95

50211086000

$8.03

3

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

4

SCREW FEND.BRACE M8X9 WS=17

50308009050

$5.23

5

NUT FENDER BRACE M8 WS=17

50308009051

$5.23

7

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

9

FENDER BRACE BLACK '99

50308009100

$9.46

10

FENDER FRONT ORANGE '99

5030801010004

$29.63

13

REAR FENDER EXC SILVER '98

5030801310090

$31.53

16

NUMBER PLATE CARRIER EGS '98

50308015100

$46.06

17

rubber grommet D=8mm open

31008060000

$2.05

19

BRAKE HOSE GUIDE 2000

59008019000

$4.11

20

SPACER BUSHING 7X10X7,5

50208020000

$4.11

23

WASHER 6MM

40006006000

$1.49

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

26

WASHER DIN0125-A 5,3

0125050003

$1.49

27

Self locking nut DIN 985 M5

0985050003

$2.05

40

SPECIAL SCREW T60 6X40 WS=6

0017060403

$3.08

41

WASHER DIN0125-A 6,4

0125060003

$1.49

51

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

53

BUSH F.NUM.PL.CAR. 6X11X22X9,5

50308053100

$6.54

55

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

80

REFLECTOR RED

58412080000

$5.23

81

BRACKET FOR REFLECTOR

58412080050

$6.07
