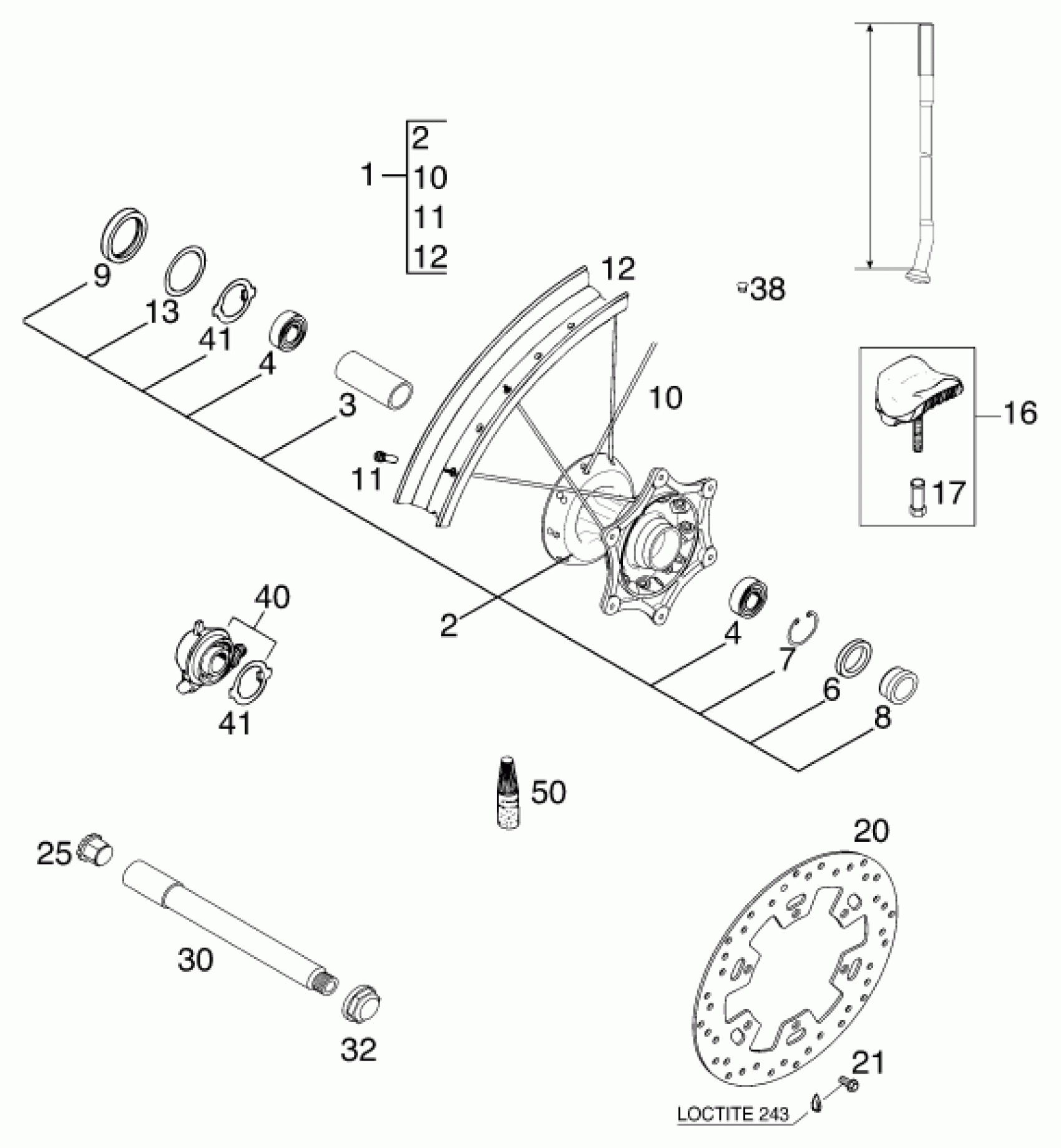

KTM 125 SUPERMOTO 100 2001 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 2,5X17"S.MOTO 2000

51209001044

Unavailable

2

FRONT HUB CPL. EXC 2000

50309010144

$186.73

3

BEAR. SPACERTUBE 20,5X25X63,3

50309011100

$5.83

4

GR.BALL BEAR.6904 DDU2CG23S6NM

0625069047

$23.09

6

SHAFT SEAL RING 26X37X7 ASL

0760263770

$3.08

7

LOCK RING DIN0472-37X1,5

0472037154

$2.05

8

SPACER BUSHING 20X26X27,8 2000

50309012000

$7.75

9

SHAFT SEAL RING 40X52X7 B

0760405270

$11.68

10

SPOKE M4,5X174-15G 17'' DDE

50309071174

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

$2.05

12

FRONT RIM 2,50X17'' STING'9

51109070100

Unavailable

13

WASHER 40 X 52 X 0,15 '92

58111054000

$1.57

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

20

BRAKE DISC FRONT 320MM STING

51109060100

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

25

HANDLE FOR FRONT AXLE WS=21

50309081150

$1.73

30

WHEEL SP. FRO.USD43 185MM 2001

50309081200

$36.48

32

AXLE NUT FRONT M16X1,5/WS=27

50309082100

$11.77

38

PLUG FOR RIM

55003135000

Unavailable

40

SPEEDOMETER DRIVE748233(2.66)

50314050100

$31.86

41

DRIV.DOG F.SPEEDOM.DRIVE 2000

50314053000

$2.05

50

LOCTITE 243 BLUE 5 ML

6899785

$28.04
