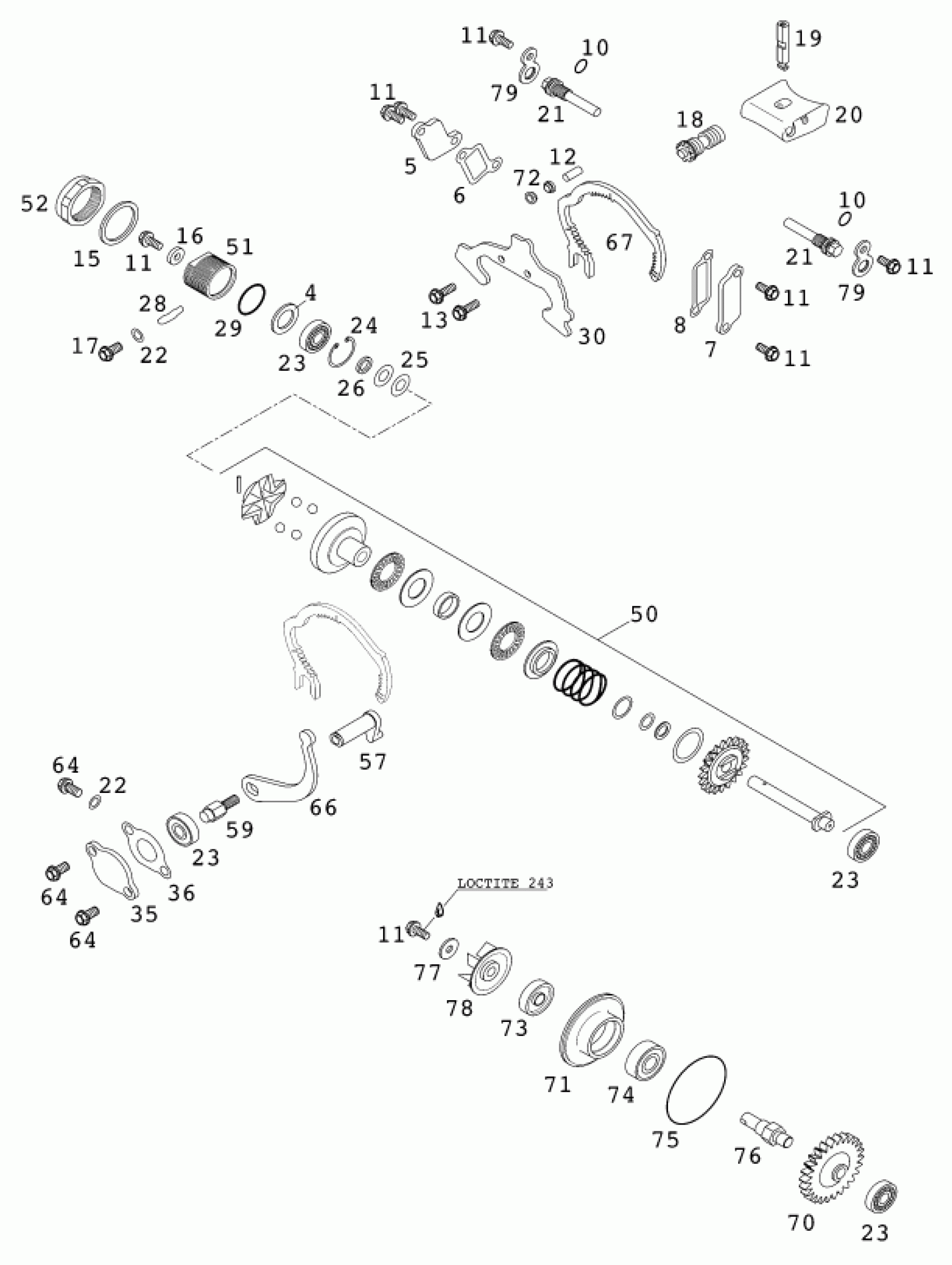

KTM 125 SUPERMOTO 100 2001 EXHAUST CONTROL Diagram

#

Description
Price

4

STOP DISK 14,2X22X1,5

49033031015

$2.05

5

SIDE COVER R/S '98

50337005000

$3.08

6

GASKET SIDE COVER R/S

50337006000

$4.11

7

50337007000

Unavailable

8

GASKET SIDE COVER L/S

50337008000

$4.11

10

O-RING 8,00X2,00 NBR

0770008020

$1.49

11

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

12

NEEDLE ROL. DIN5402 NRB 5X15,8

0402051600

$3.08

13

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

15

CU-SEAL RING DIN7603-26X32X2

0603262322

$2.05

16

WASHER 5,2 X 12 X 3

50337050064

$3.08

17

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

18

ECCENTRIC FOR CRANKBOLT 125'98

50337018044

$53.10

19

CRANK BOLT F.CONTROL FL.125'98

50337019000

$30.19

20

CONTROL FLAP 125'98

50337020000

$74.07

21

AXLE FOR CONTROL FLAP WS=8 '

50337021000

Unavailable

22

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

23

Grooved ball bearing 608 2RS C

0625006087

$21.40

24

CIRCLIP DIN0472-22X1

0472022100

$2.05

25

WASHER DIN2093-8,2X16X0,6

0093821606

$2.05

26

SPACER BUSHING 8X12X2,3

50337050063

$4.11

28

O-RINGSTRING 4MM NBR 70 PER/M

00099300011

Unavailable

29

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

30

SHEET METAL GUIDE 3MM 125'98

50337030000

$11.68

35

CLOSING COVER '98

50337035000

$3.08

36

CLOSING COVER GASKET 1MM

50337035050

$3.08

50

CENTRIFUGAL TIMER CPL.EXE 2001

51237050044

Unavailable

51

BUSHING HOLDER M 26X1 '98

50337050062

$31.22

52

CLOSING NUT M 26X1 WS=30

50337050061

$10.84

57

CONTROL LEVER 125/200'98

50337057000

$56.56

59

CONTROL SHAFT M 6 WS=10 '98

50337059000

$7.85

64

HH COLLAR SCREW M 6X12 W.LOC

0015060120

Unavailable

66

LEVER F. CONTROL SEGMENT '98

50337066000

$15.33

67

CONTROL SHAFT SEGMENT 125'98

50337067000

$40.20

70

DRIVE WHEEL 26-T 125/200'98

50335054026

$6.63

71

BUSHING SUPPORT WATER PUMP '98

50335056000

$22.15

72

ROLLER GUIDE 5X6,1X8X4 '98

50337072000

$5.60

73

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

74

BALL BEARING 6000/C3

0625060001

$13.83

75

O-RING 49,00X2,50 NBR

0770049025

$3.08

76

WATER PUMP SHAFT 125/200'98

50335054050

$18.60

77

WASHER DIN7349-5X15X2

0349000050

$1.49

78

WATER PUMP WHEEL

54635005000

$6.72

79

LOCK METAL SHEET 2MM '98

50337079000

$3.08
