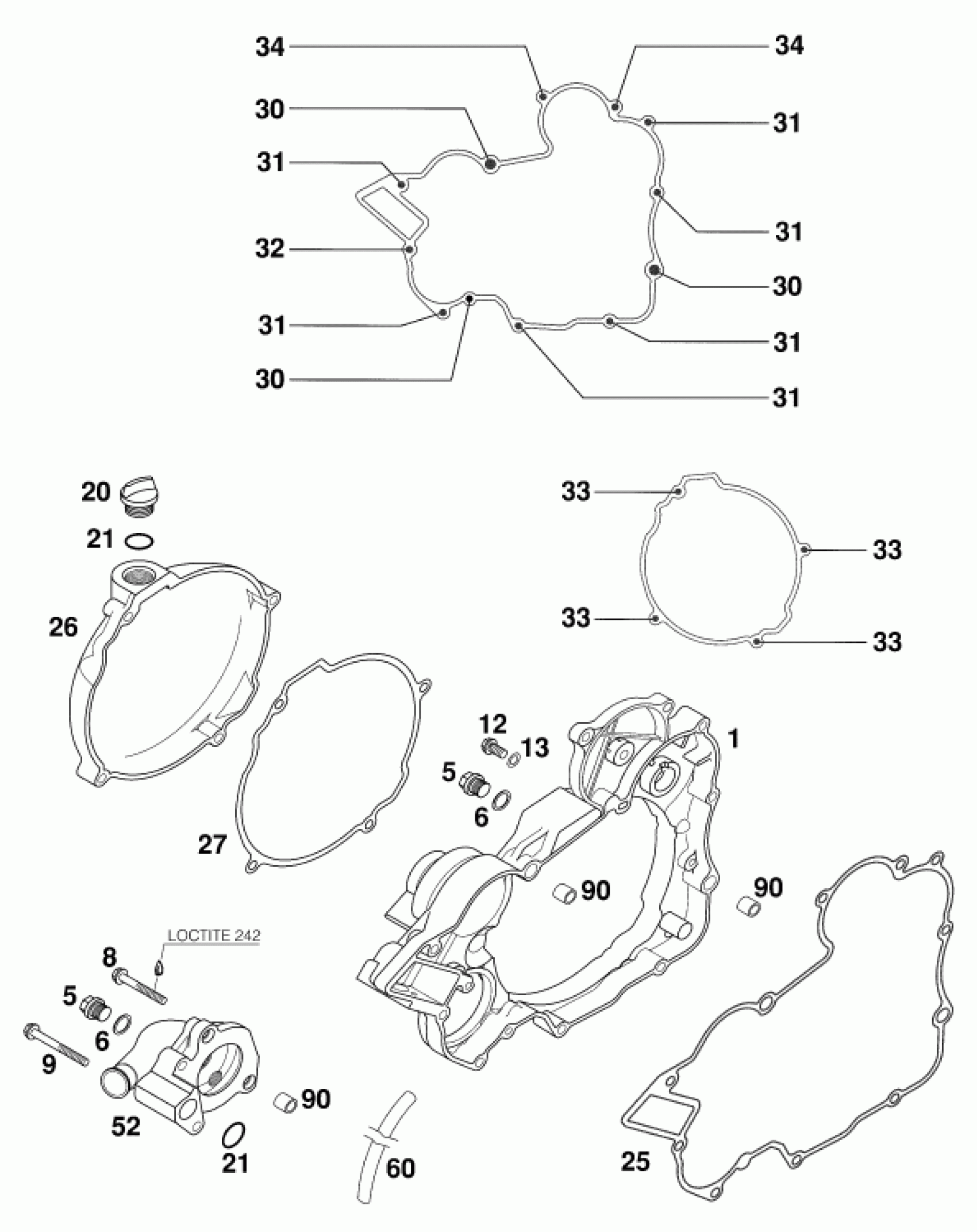

KTM 125 SUPERMOTO 100 2001 CLUTCH COVER Diagram

#

Description
Price

1

% CLUTCH COVER CPL. OILPUMP '

52330101044

Unavailable

5

PLUG DIN0910-M 10X1

0910100003

Unavailable

6

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

9

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

12

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

13

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

20

PLUG M 24X3

58030020000

Unavailable

21

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

25

CLUTCH COVER GASKET 0,5MM '99

50330125000

Unavailable

26

CLUTCH OUTSIDE COVER '

50330026000

Unavailable

27

CLUTCH OUTS.COVER GASKET 1MM

50330027000

Unavailable

30

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

32

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

33

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

34

HH COLLAR SCREW M 6X65 WS=8

0015060653

Unavailable

52

WATER PUMP COVER 125/200 98

50335052000

Unavailable

60

TUBE VINNYLAN 6X9 DVOH

50332095101

Unavailable

90

DOWEL 9,8 X 7 X 10

49030090000

Unavailable
