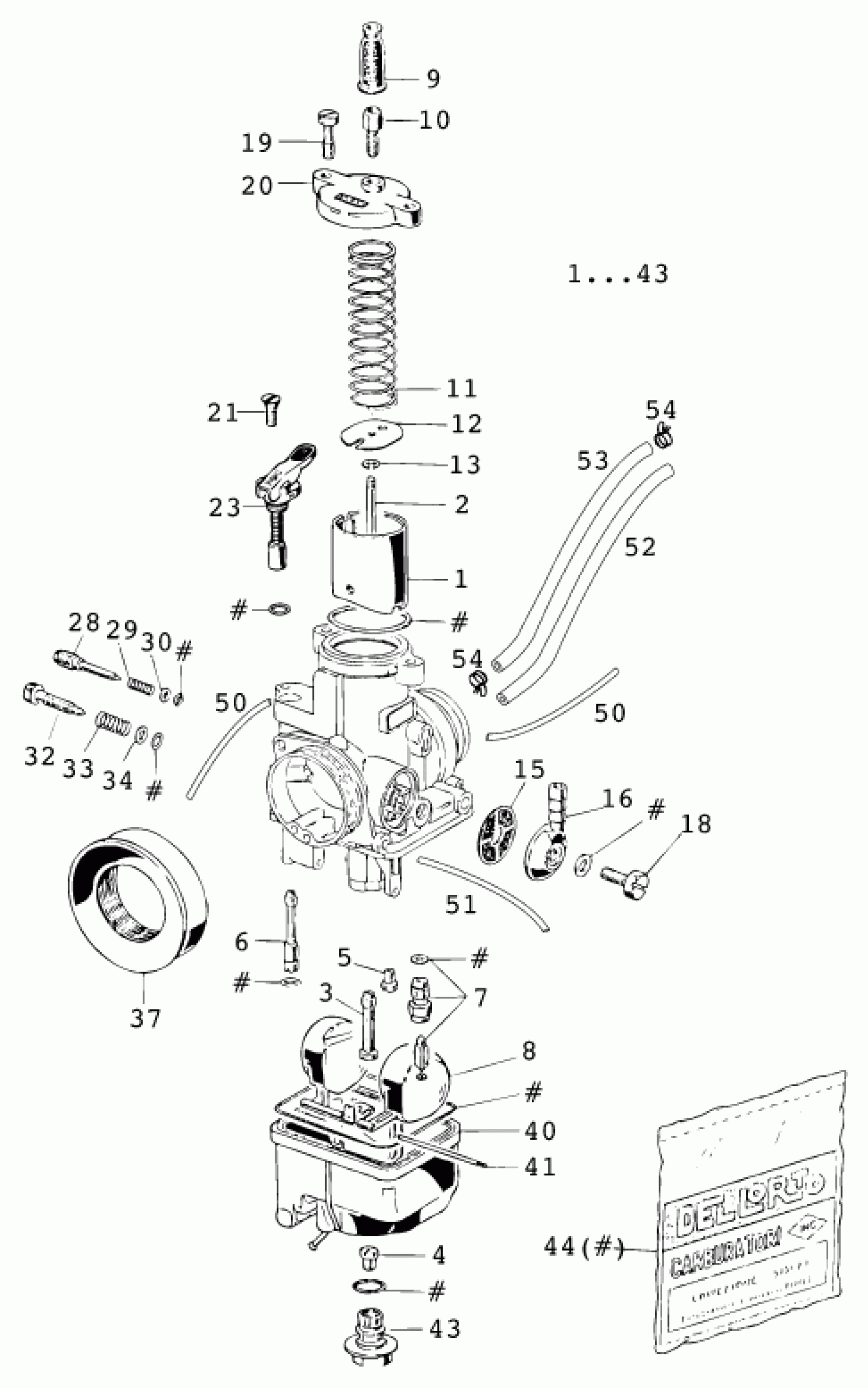

KTM 125 SUPERMOTO 100 2001 CARBURETOR Diagram

#

Description
Price

0

CARBURETOR DELLORTO PHBH 28 VS

51231001044

Unavailable

1

* THROTTLE SLIDE NR.40

49031135140

Unavailable

2

JET NEEDLE 83

49031134124

Unavailable

3

NEEDLE JET GM1 264

51131021264

Unavailable

4

MAIN JET 110

57031523110

Unavailable

4

MAIN JET 120

57031523120

Unavailable

4

MAIN JET 125

57031523125

$8.13

4

MAIN JET 130

57031523130

Unavailable

4

MAIN JET 132

57031523132

Unavailable

5

JET 45

15131123045

Unavailable

5

JET 48

15131123048

Unavailable

5

JET 50

15131123050

$5.37

5

JET 52

15131123052

Unavailable

5

JET 54

15131123054

Unavailable

6

STARTING JET 65

51131051065

Unavailable

6

STARTING JET 70

51131051070

Unavailable

6

STARTING JET 75

51131051075

Unavailable

7

NEEDLE VALVE 200

57231120200

$34.87

8

FLOAT 9010-1 9,5 GRAM

49031109100

Unavailable

9

PROTECTION COVER F. CARBURETOR

49031138000

Unavailable

10

ADJUSTMENT SCREW M6X0,75

57031525000

$5.23

11

* SLIDING SPRING 1,1X105

49031130100

Unavailable

12

WASHER

49031131100

Unavailable

13

TAB WASHER DIN6799-RS 2,5

0799025055

$3.08

15

FUEL FILTER

15131112000

$5.23

16

HOSE CONNECTOR

57031513000

$5.68

18

HH SCREW DIN0933-M 6X16

0933060163

$1.49

19

HEXAGON NUT M 5X16

57031524000

$2.12

20

CARBURETOR COVER

49031127100

Unavailable

21

FLAT HEAD SCREW DIN963-M4,5X14

0963045143

Unavailable

23

% CHOKE LEVER CPL. 125 EXE 20

51231048000

Unavailable

28

MIXTURE CONTROL SCREW M7X0,75

51131017000

Unavailable

29

SPRING AIR ADJUST.SCREW

57031515000

$1.49

30

WASHER 3,3 X 5,8 X 0,5

57031572000

$2.05

32

ADJUSTMENT SCREW M5

57031519000

$7.00

33

SPRING

52031116000

$4.11

34

WASHER 5,1 X 8 X 0,8

57031573000

$2.05

37

CONNECTOR AIR INTAKE 28 D=60MM

51131040000

Unavailable

40

FLOAT CHAMBER

51131011000

Unavailable

41

STUD 2 X 47

57031508000

$2.12

43

PLUG M10

49031114100

Unavailable

44

GASKET SET PHBH 28 VS

51131099000

Unavailable

50

PVC-HOSE 3X5MM

52031137001

Unavailable

51

PVC-HOSE 4X6MM

31007007101

Unavailable

52

TUBE 5X12 L=250MM

42403437

Unavailable

53

TUBE 5X12 L=230MM

42403397

Unavailable

54

CLAMP YDNAC 10128 12MM

58031005000

$3.08
