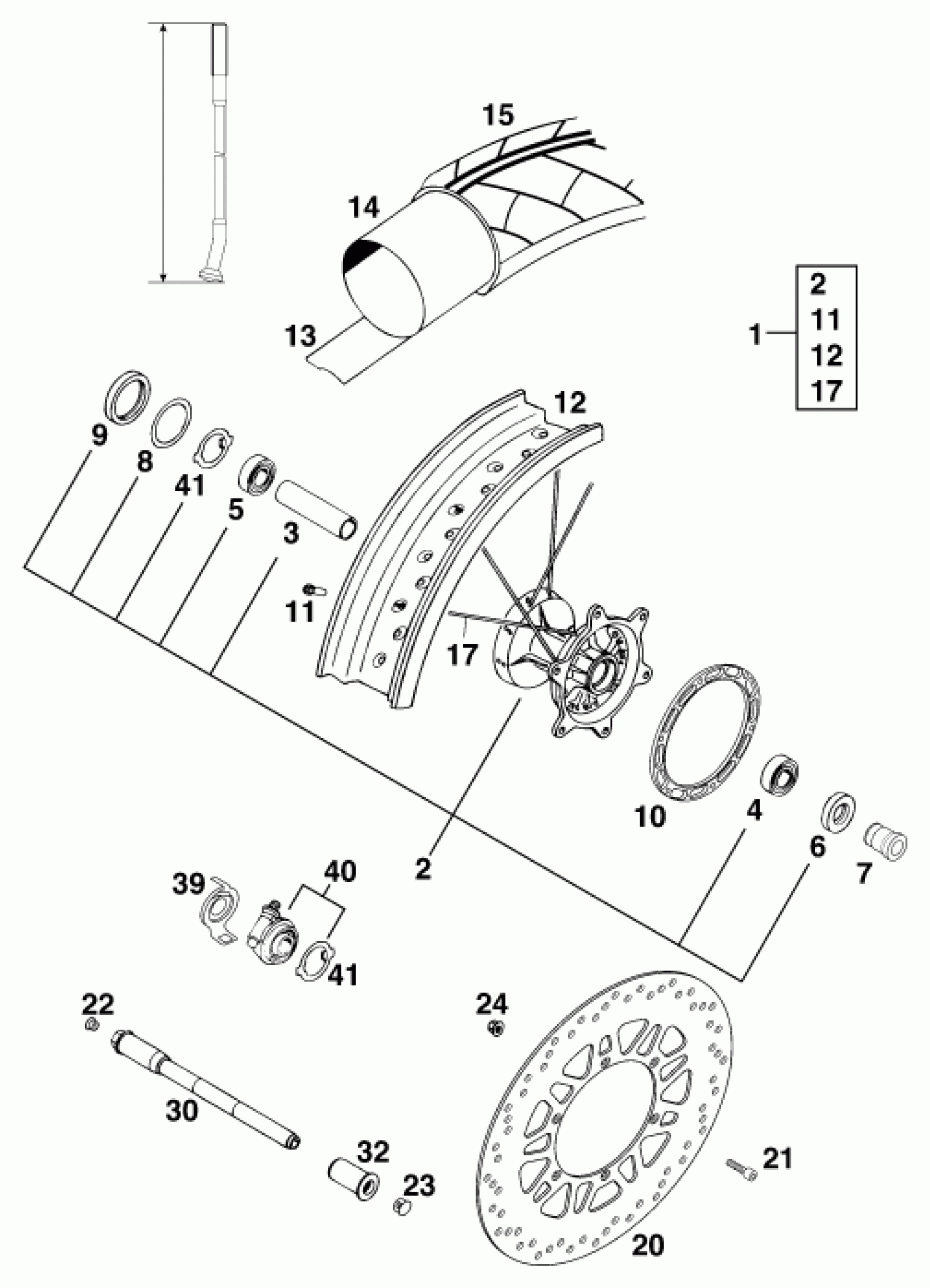

KTM 125 STING '98 <1998 FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL.2,50X17" STING

51109001144

Unavailable

2

FRONT HUB CPL. SILVER GS'93

5460901004490

$191.02

3

BEAR.SPACER TUBE 17,5X22X64,5

54609011000

$9.12

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

$17.94

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

7

DISTANCE SLEEVE 17 X 30 X 26,7

58309051000

$11.59

8

WASHER 40 X 52 X 0,15 '92

58111054000

$1.57

9

SHAFT SEAL RING 40X52X7 B

0760405270

$11.68

10

58309061000

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

12

FRONT RIM 2,50X17'' STING'9

51109070100

Unavailable

13

RIM BAND 17'' STING'9

51109073200

Unavailable

14

TUBE 17" STING'97

51109075200

Unavailable

15

TYRE 110/70-17" 54H BT35F

51109074100

Unavailable

17

SPOKE M5X177-13,5G 17''

58309171100

$5.23

20

BRAKE DISC FRONT 320MM STING

51109060100

Unavailable

21

AH SCREW DIN0912-M 6X25

0912060256

Unavailable

22

Plug SFL16

50210086000

$3.08

23

PLASTIC CAP 3/8'' 2663

58301098000

$1.49

24

SELF LOCKING NUT M6

56509064000

Unavailable

30

WHEEL SPINDLE M17X250 DUKE'94

58309081000

$60.25

32

AXLE NUT M17 X 1,5 DUKE'94

58309082000

$12.02

39

SPEEDOMETER BRACKET DUKE '96

58414051000

$17.72

40

SPEEDOME.DRIVE 748208(2,66)'94

58311052000

$40.50

41

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

$6.00
