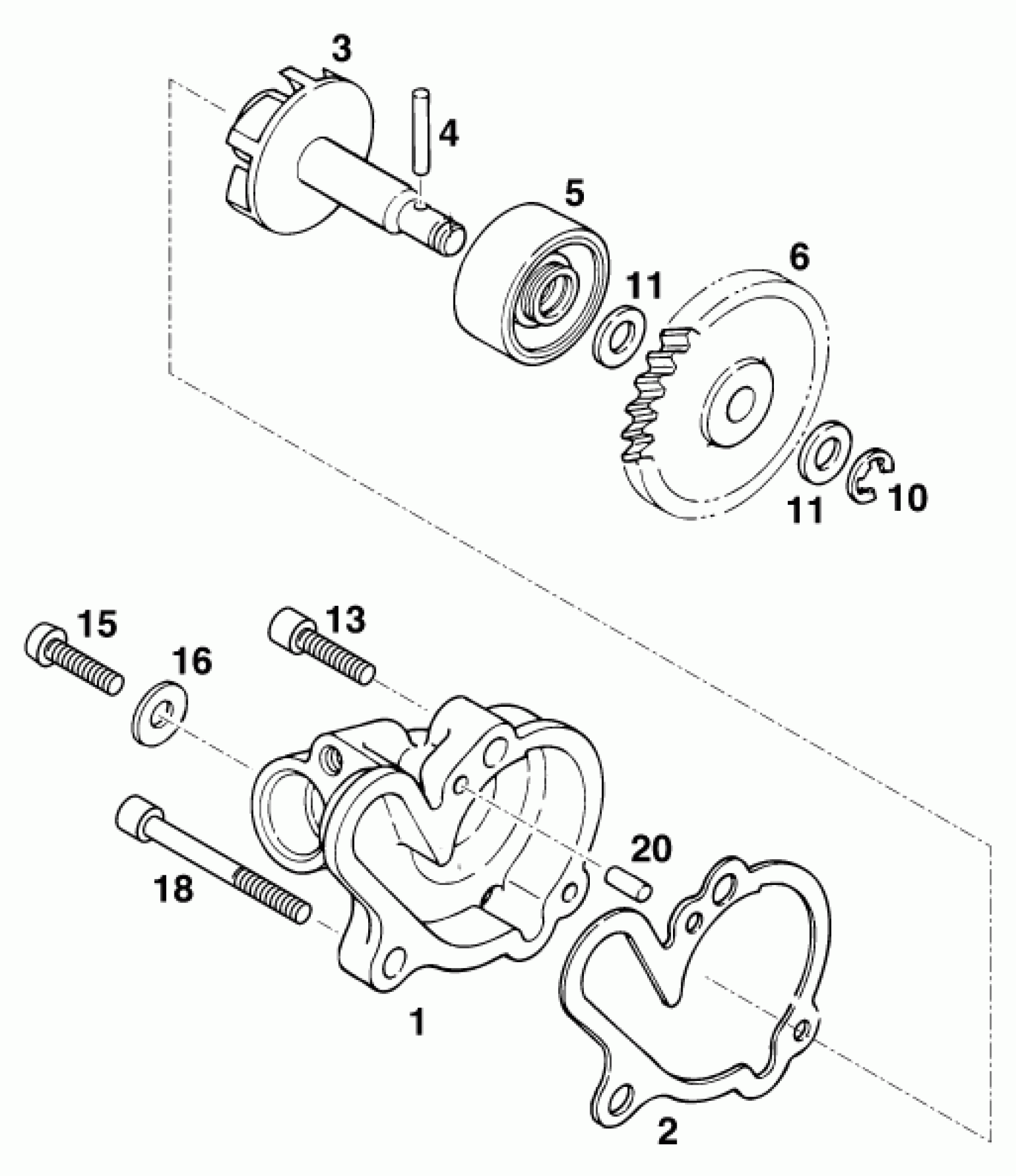

KTM 125 STING '97 <1997 WATER PUMP Diagram

#

Description

Price

1

WATER PUMP CASE

46001230

Unavailable

2

PUMP CASE GASKET

45304000

Unavailable

3

WATER PUMP SHAFT

45600080

Unavailable

4

BOLT 21,8X3

45604007

Unavailable

5

RADIAL SEAL RING 10X31X13,5

45305239

Unavailable

6

WATER PUMP GEAR 30-T

44005780

Unavailable

10

LOCK WASHER 7MM

40304036

Unavailable

11

WASHER 8,2X15X1

44916130

$65.72

13

AH SCREW DIN0912-M 6X25

0912060253

$2.05

15

HH SCREW DIN0933-M 6X25

0933060253

$2.05

16

SEAL RING 6X12X0,8

45304720

Unavailable

18

AH SCREW DIN0921-M 6X60

0912060603

$1.73

20

FIT STUD 4X10

45604017

Unavailable
