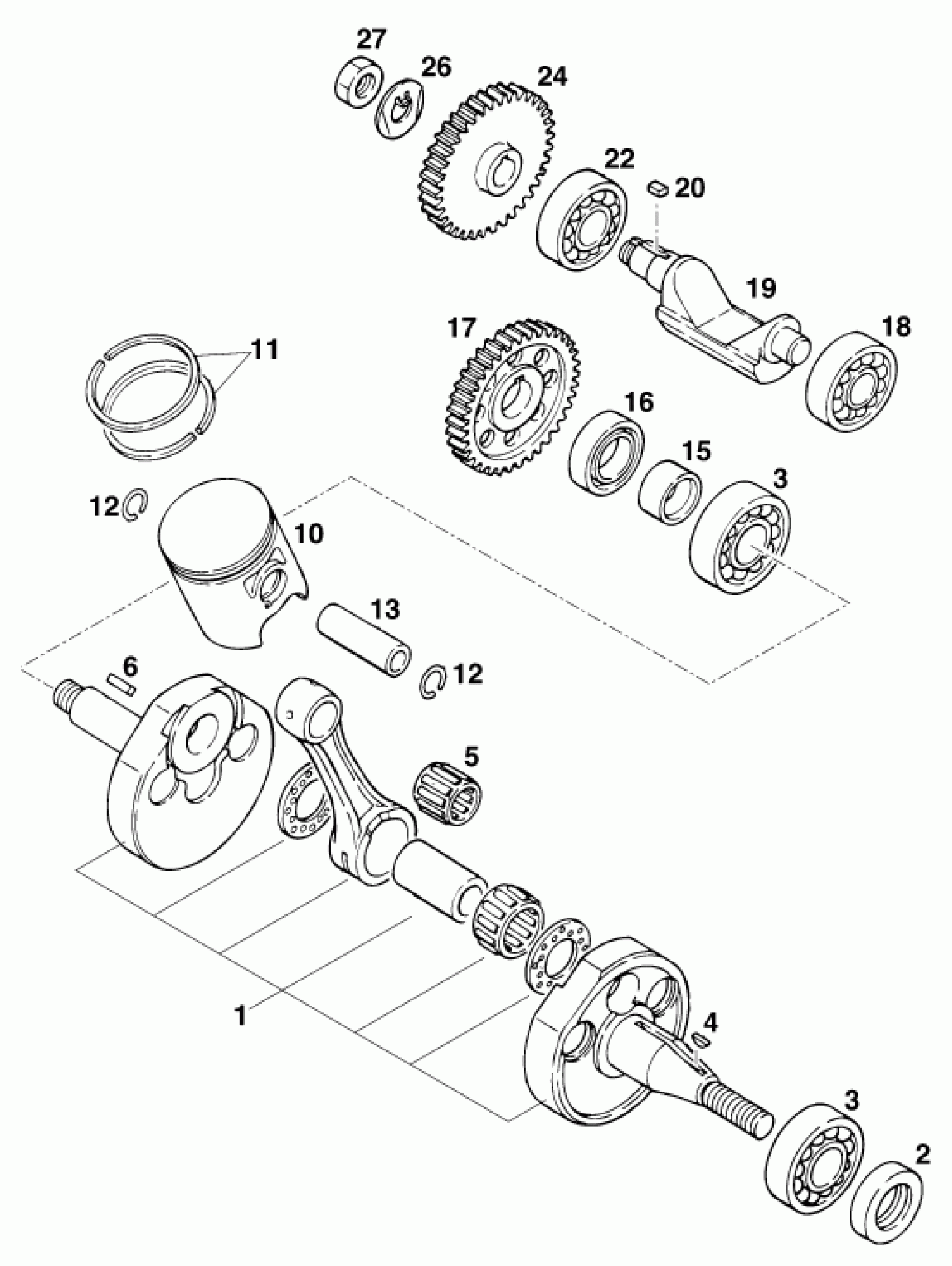

KTM 125 STING '97 <1997 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

CRANKSHAFT CPL. STROKE 50,7MM

43810260

Unavailable

2

RADIAL SEAL RING 25X44X8

45305349

Unavailable

3

GR. BALL BEARING 25X62X16 6305

45102329

Unavailable

4

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

5

NEEDLE BEARING 16X21X17,5

45103359

Unavailable

6

FIT SPRING 5X18

44901178

Unavailable

10

PISTON LOOSE D=56MM

51130007000

Unavailable

10

PISTON LOOSE D=56,25MM

51130007100

Unavailable

10

PISTON LOOSE D=56,5MM

51130007200

Unavailable

11

PISTON RINGS CPL. D=56MM

51130031044

Unavailable

11

PISTON RINGS CPL. D=56,25MM

51130031144

Unavailable

11

PISTON RINGS CPL. D=56,5MM

51130031244

Unavailable

12

CIRCLIP 1,2x15,6

40302190

Unavailable

13

PISTON PIN 16X48

45606220

Unavailable

15

SPACER BUSHING 20X32X23,5

44904420

Unavailable

16

RADIAL SEAL RING 32X44X8

45305359

Unavailable

17

INTERMEDIATE GEAR 38-T

44005620

Unavailable

18

GR. BALL BEARING 15X42X13 6302

45102339

Unavailable

19

BALANCER SHAFT

40109030

Unavailable

20

FIT SPRING 5X11

44901110

Unavailable

22

GR. BALL BEARING 17X40X12 6203

45102349

Unavailable

24

BALANCER GEAR 38-T

44005630

Unavailable

26

FUSE WASHER

44907050

Unavailable

27

HH NUT M12X1 WS=19

44903410

Unavailable
