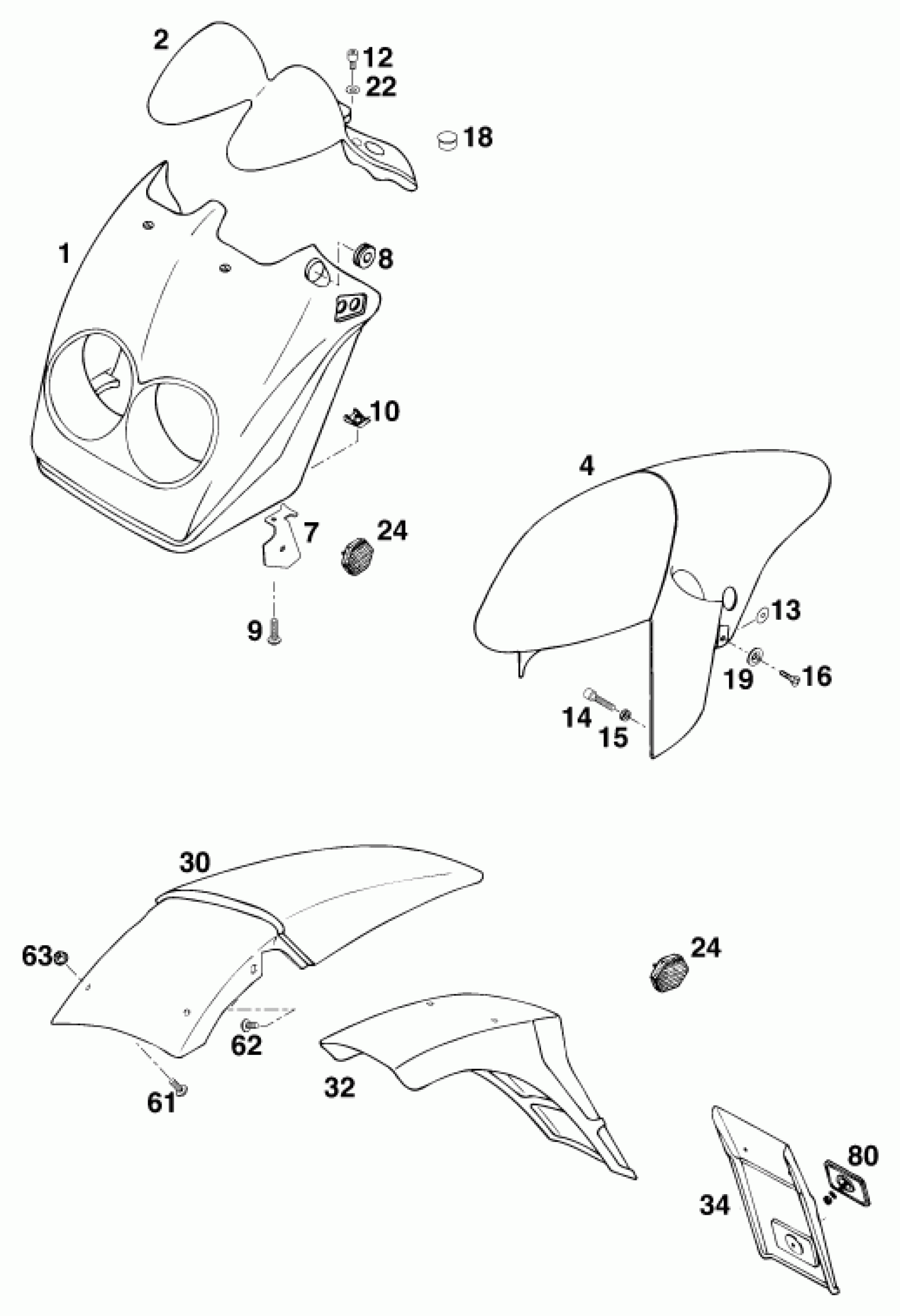

KTM 125 STING/100 '97 <1997> MASK, FENDERS Diagram

#

Description

Price

0

BRACKET REFLECTOR R/S '95

58312181000

Unavailable

1

HEAD LIGHT MASK STING'97

5831100100090

Unavailable

2

% INSTRUMENTS COVER DUKE '96

58311050100

Unavailable

4

FRONT WHEEL FENDER STING'97

5830801000090

Unavailable

7

BRACKET REFLECTOR L/S '95

58312081000

Unavailable

8

rubber grommet D=8mm open

31008060000

$2.05

9

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

10

clip nut M6

54603048100

$4.11

12

AH SCREW DIN0912-M 6X10

0912060103

$1.49

13

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

14

AH SCREW DIN0912-M 6X30

0912060303

$2.05

15

WASHER 6 X 12 X 3

12011016000

$1.49

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

18

PVC CAP D=22MM

71001012000

$3.08

19

WASHER 12,5x20

58308046000

Unavailable

22

WASHER DIN0125-A 6,4

0125060003

$1.49

24

REFLECTOR YELLOW CPL.

16512080000

Unavailable

30

REAR FENDER ORANGE STING'97

5020841410004

Unavailable

32

51108015000

Unavailable

34

EXTENSION FOR NUMBER PLATE

49008216000

Unavailable

61

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

62

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

63

SELF LOCKING NUT M6

56509064000

Unavailable

80

51012080000

Unavailable
