LUBRICATING SYSTEM

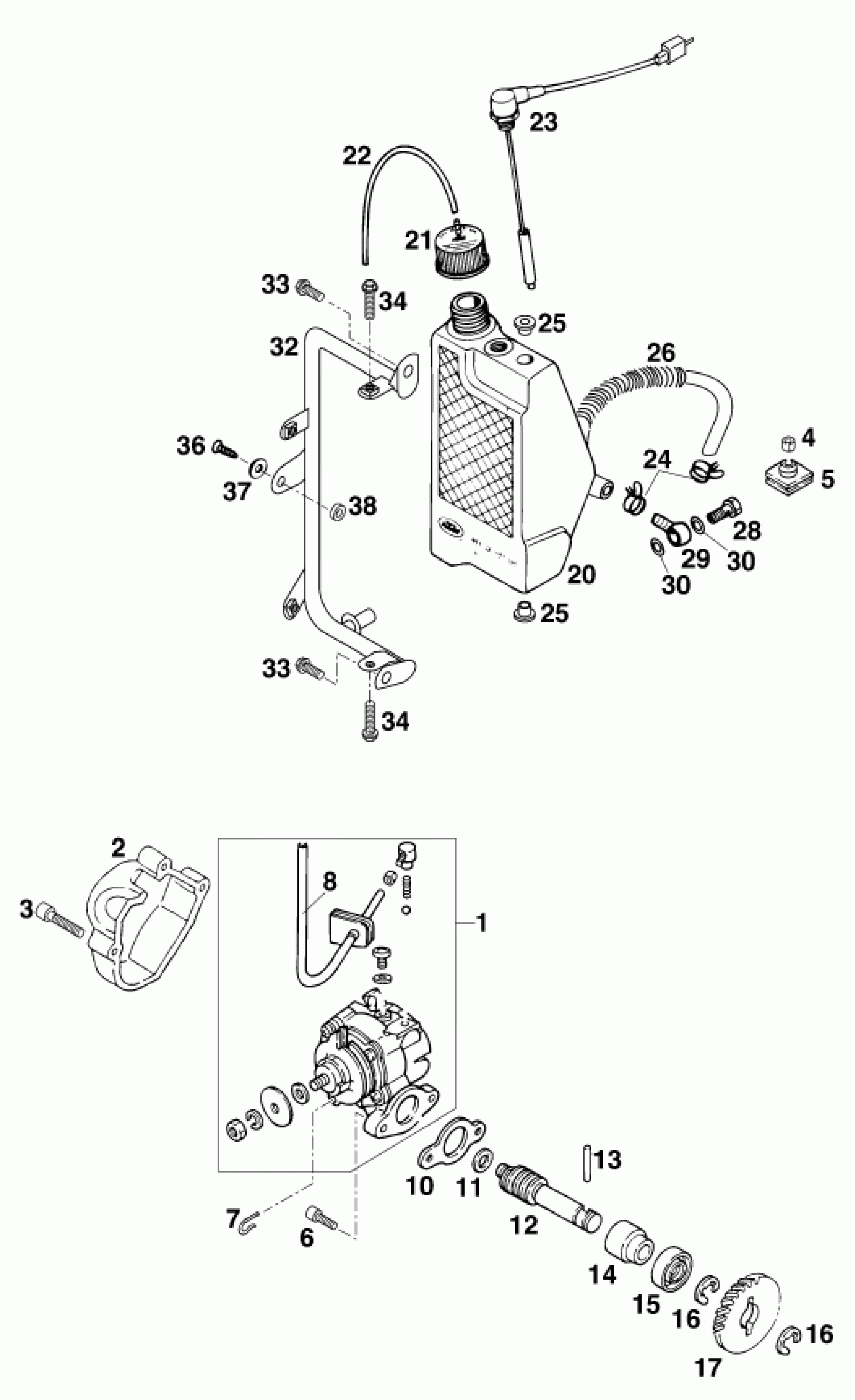

KTM 125 STING/100 '97 <1997 LUBRICATING SYSTEM Diagram
#
Description
Price
1
OIL PUMP CPL.
46400079
Unavailable
2
OIL PUMP COVER
42102810
Unavailable
3
AH SCREW DIN0912-M 6X30
0912060303
$2.05
4
* CLAMP
44900289
Unavailable
5
RUBBER GUIDE
42405067
Unavailable
6
AH collar screw DIN 912 M5x16
0912050163
$1.49
7
CLAMP
40305016
Unavailable
8
OIL LINE OIL PUMP-CARBURTOR
51138060000
Unavailable
9
BALANCER WASHER 6X12X0,5
54637074002
Unavailable
10
PUMP CASE GASKET
45303920
Unavailable
11
Washer 8.2X11X1
44916180
$1.49
12
OIL PUMP DRIVE SHAFT
45609747
Unavailable
13
BOLT 21,8X3
45604007
Unavailable
14
BUSHING
45101747
Unavailable
15
RADIAL SEAL RING 10X21X5
45305269
Unavailable
16
LOCK WASHER D=8MM
40304026
Unavailable
17
OIL PUMP GEAR 24T
44005770
Unavailable
20
OIL TANK LOOSE COLOURLESS '97
51138061000
Unavailable
21
OIL TANK CAP
49138491044
$10.11
22
VENT HOSE 3X5X270
50131137000
Unavailable
23
OIL CONTR.SWITCH CPL. 185MM'97
51138062000
Unavailable
24
YDNAC-CLAMP 10107 10MM
58007117000
$3.08
25
BUSHING
54635036000
$1.49
26
OIL LINE WITH SPRING L=330MM
42403467
Unavailable
28
HOLLOW SCREW M10 X 1
54313025000
$6.44
29
RING COMPONENT 10/6MM
49138493000
$10.74
30
CU-SEAL RING DIN7603-10X16X1,5
42013026000
$2.05
32
OIL TANK BRACKET CPL LC2 '96
51138079000
Unavailable
33
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
34
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
36
* SHEET MET.SCR.DIN7973-4,8X19
0973480193
Unavailable
37
WASHER 6MM
40006006000
$1.49
38
RUBBER WASHER 5X16X3
51005082100
$1.49
