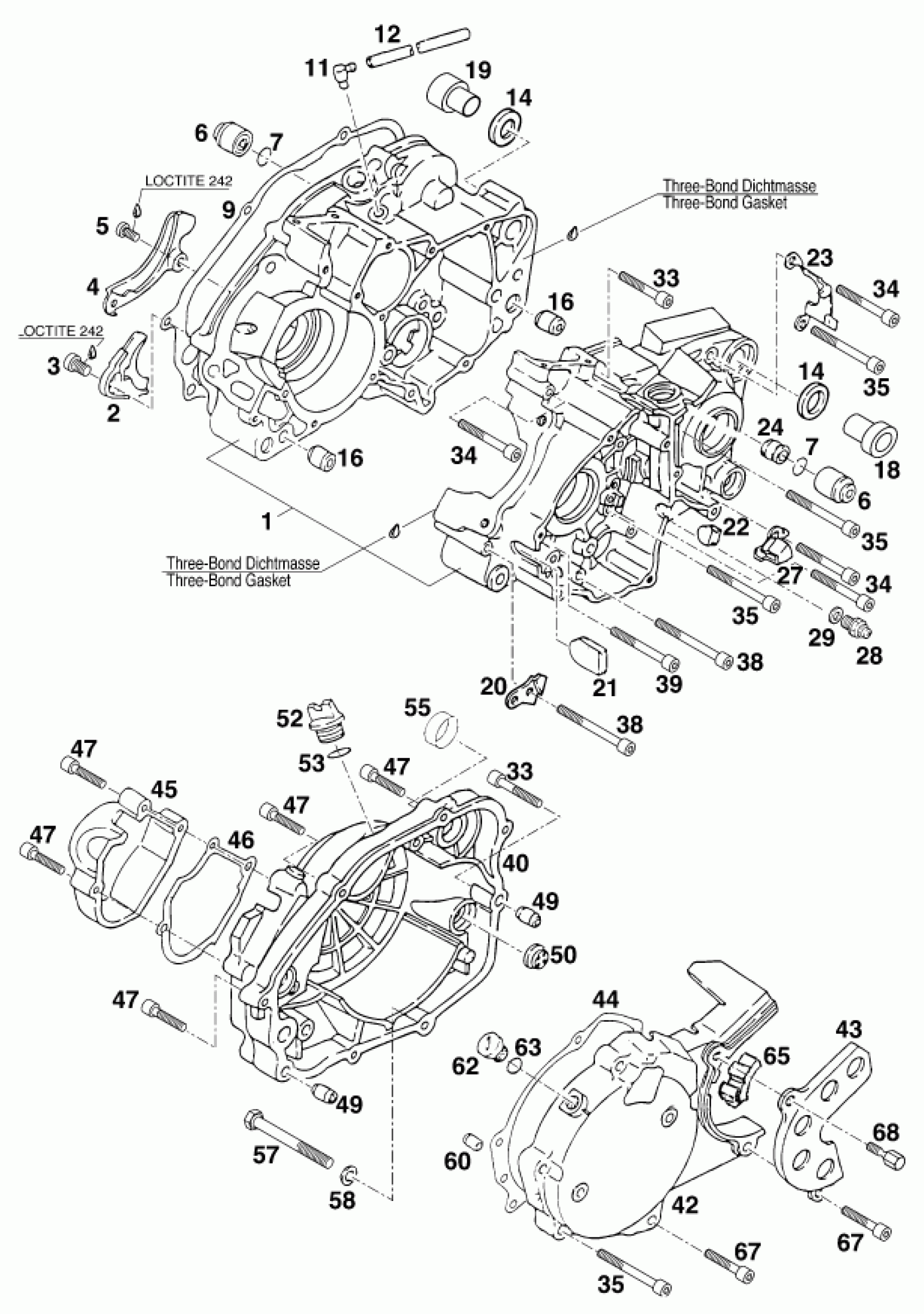

KTM 125 STING/100 '97 <1997 ENGINE CASE Diagram

#

Description

Price

1

ENGINE CASE CPL. L/S & R/S

47036040

Unavailable

2

BRACKET

42606647

Unavailable

3

OVAL HEAD SCREW M8X10

44919030

Unavailable

4

GUIDE

42601910

Unavailable

5

OVAL HEAD SCREW M6X12

44919010

Unavailable

6

SILENT BLOCK 8X20X22

42405070

Unavailable

7

O-RING 12,5X1,5

45301047

Unavailable

9

CLUTCH COVER GASKET

45303630

Unavailable

11

CONNECTING PIECE 90°

41506489

Unavailable

12

PVC-HOSE 3X5MM

52031137001

Unavailable

14

CASE WASHER 16,5X28X4

44907060

Unavailable

16

DOWEL 8,6X12X15,8

45602620

Unavailable

18

51130010000

Unavailable

19

51130110000

Unavailable

20

BRACKET FOR WATERPIPE

42606027

Unavailable

21

PLUG BIG RUBBER

42405100

Unavailable

22

PLUG SMALL RUBBER

42405110

Unavailable

23

RETAINING PLATE

42606037

Unavailable

24

SPACER BUSHING 8,1X14X13

44904460

Unavailable

27

RETAINING PLATE

42606047

Unavailable

28

NEUTRAL SWITCH M10X18 CPL.

45603570

Unavailable

29

SEAL RING 10X16X1 PAPER

45304790

Unavailable

33

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

34

AH SCREW DIN0912-M 6X50

0912060503

$1.49

35

AH SCREW DIN0921-M 6X60

0912060603

$1.73

38

SHCS DIN 912 M6x65

0912060653

$2.05

39

AH SCREW DIN0912-M 6X55

0912060553

$3.08

40

CLUTCH COVER

42107100

Unavailable

42

IGNITION COVER

42109070

Unavailable

43

CHAIN GUIDE FRONT

42103980

Unavailable

44

IGNITION COVER GASKET

45308850

Unavailable

45

OIL PUMP COVER

42102810

Unavailable

46

OIL PUMP COVER GASKET

45308830

Unavailable

47

AH SCREW DIN0912-M 6X30

0912060303

$2.05

49

DOWEL 6,4X10X1

45602630

Unavailable

50

OIL LENS

42402650

Unavailable

52

OIL PLUG M19X10

42402640

Unavailable

53

O-RING 19X2,2

45301309

Unavailable

55

PLUG CAP

42402740

Unavailable

58

WASHER 8X14X1 COPPER

53032068000

Unavailable

60

DOWEL 6X15

45604050

Unavailable

62

PLUG M14X1,5

42402680

Unavailable

63

O-RING 14,00X2,00

0770140200

$2.05

65

SPROCKET LIMITED

42402850

Unavailable

67

AH SCREW DIN0912-M 6X35

0912060353

$2.05

68

FASTBACK SCREW M6X22 WS=10

44909060

Unavailable

69

PLUG SFL13

55009086000

Unavailable
