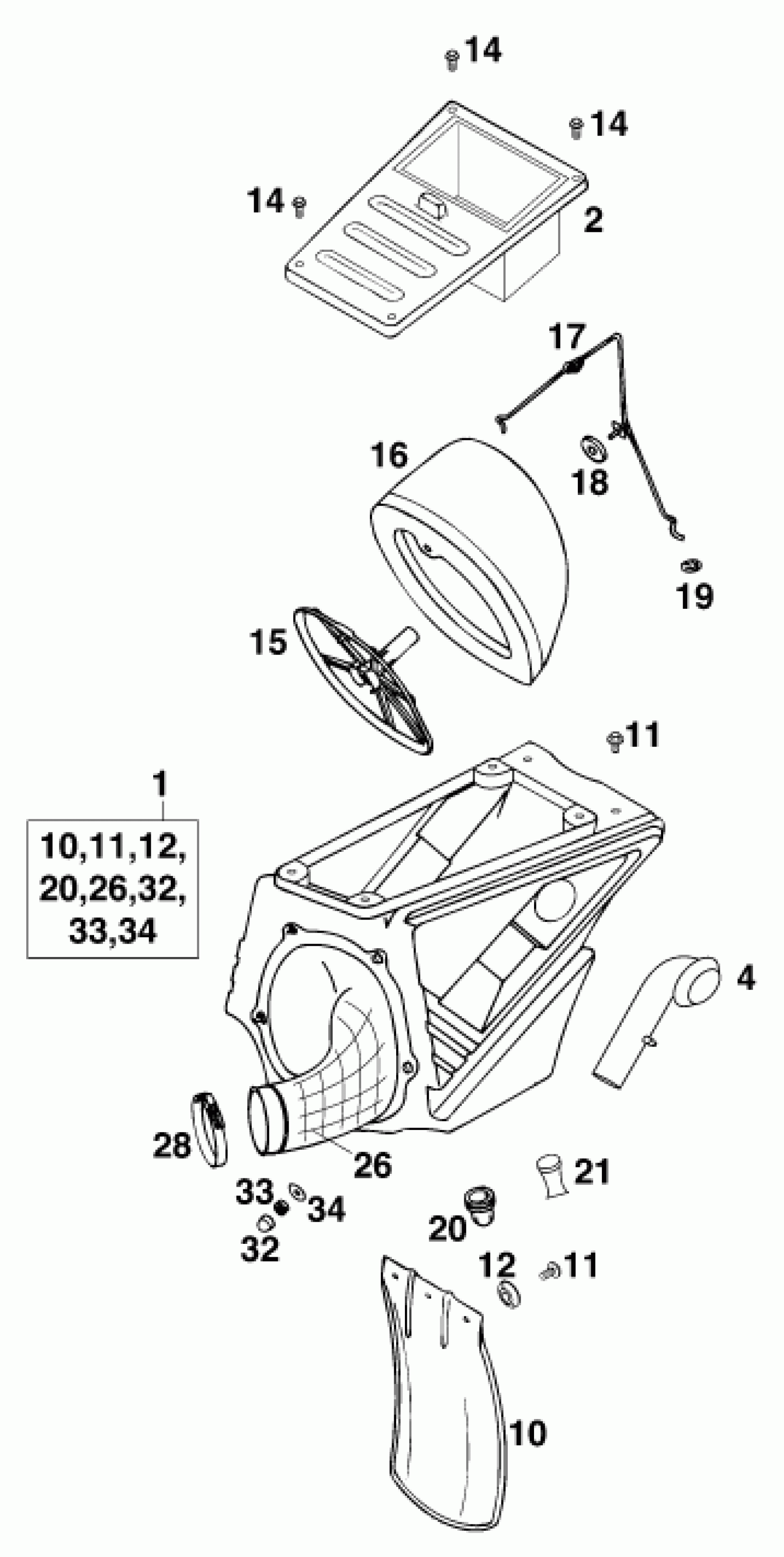

KTM 125 STING/100 '97 <1997> AIR FILTER Diagram

#

Description

Price

0

BELLOWS ATTACHMENT INNER

51106025000

Unavailable

0

BELLOWS ATTACHMENT OUTER

54606125000

Unavailable

1

AIR FILTER BOX CPL.125 LC2 '96

51106001000

Unavailable

2

AIRFILTER BOX COVER 125 LC2'96

51106002000

Unavailable

4

MATCHING TUBE

54606003047

Unavailable

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

11

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

12

BUCKET

72210079000

$3.00

14

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

15

FILTER BRACKET 125 LC2 '96

51106016000

Unavailable

16

AIRFILTER 250/300/360/LC2

54606015000

$24.47

17

AIR FILTER SUPPORT LC2 '96

51106017000

Unavailable

18

RUBBER WASHER 5X21X3

51005082200

$1.49

19

CLAMPING DISK KS4

54606019004

$2.05

20

RUBBER GRIMMET SLOTTED

50206020000

Unavailable

21

AIRFILTER BOX BLEEDING

54406020000

Unavailable

26

CARBURETOR BELLOWS

54606026000

$47.22

28

HOSE CLAMP 50-70MM

51006027000

$6.07

32

COVER CAP SW8 FOR SCREW M5

54606021000

Unavailable

33

Self locking nut DIN 985 M5

0985050003

$2.05

34

washer DIN 9021 A - 5.3

0021050003

$1.49
