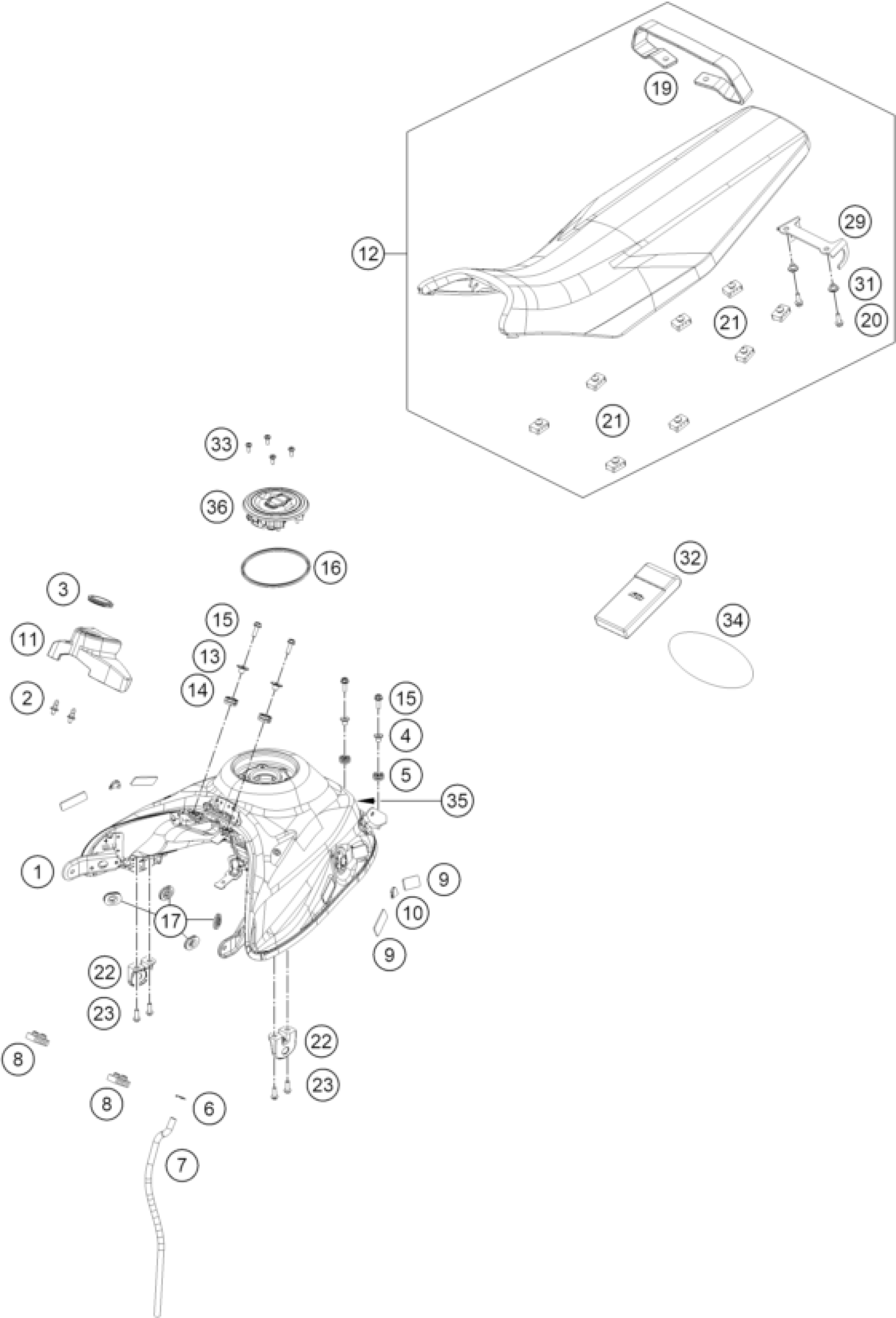

KTM 125 SMC R 2025 TANK, SEAT Diagram

#

Description

Price

1

TANK ASSEMBLY FUEL

A60307013000CA

Unavailable

2

PIN QUICK RELEASE

A60107044000

Unavailable

3

GROMMET SWITCH IGNITION

A61711066010

Unavailable

6

clamp

J310000101100

Unavailable

7

drain pipe

96315019000

Unavailable

8

damper

96307013043

Unavailable

9

Tank support rubber

95807012020

Unavailable

10

Rubber cap tank

93008059000

Unavailable

11

COVER SWITCH IGNITION

A60311068000

Unavailable

12

SEAT ASSEMBLY

A60307040000

Unavailable

13

distance sleeve

93035065030

Unavailable

14

grommet

J650002401800

Unavailable

15

HH COLLAR SCREW M6X20 SW10

J025060203

Unavailable

17

Rubber grommet

95811055010

Unavailable

19

STRAP

A60307048000

Unavailable

20

BOLT FLANGED M6X1

J900000601806

Unavailable

21

SEAT RUBBER

91207046000

Unavailable

29

BRACKET BASE SEAT

A60107041000

Unavailable

31

Sleeve-illumination bkt

93014051000

Unavailable

32

TOOLKIT

A60112078000

Unavailable

33

Linsenkopf-Schraube M5x14

J900000501404

Unavailable

34

BAND TOOL KIT

90129099055

Unavailable

5

grommet

J650001801400

Unavailable

4

collar number plate mounting

J800000601000

Unavailable

22

BRACKET SPOILER TANK

A60307013015

Unavailable

35

TAPE SEAT

A60307060000

Unavailable

16

seal fuel tank cover

96307058010

Unavailable

36

Fuel tank cap

96307008000

Unavailable
