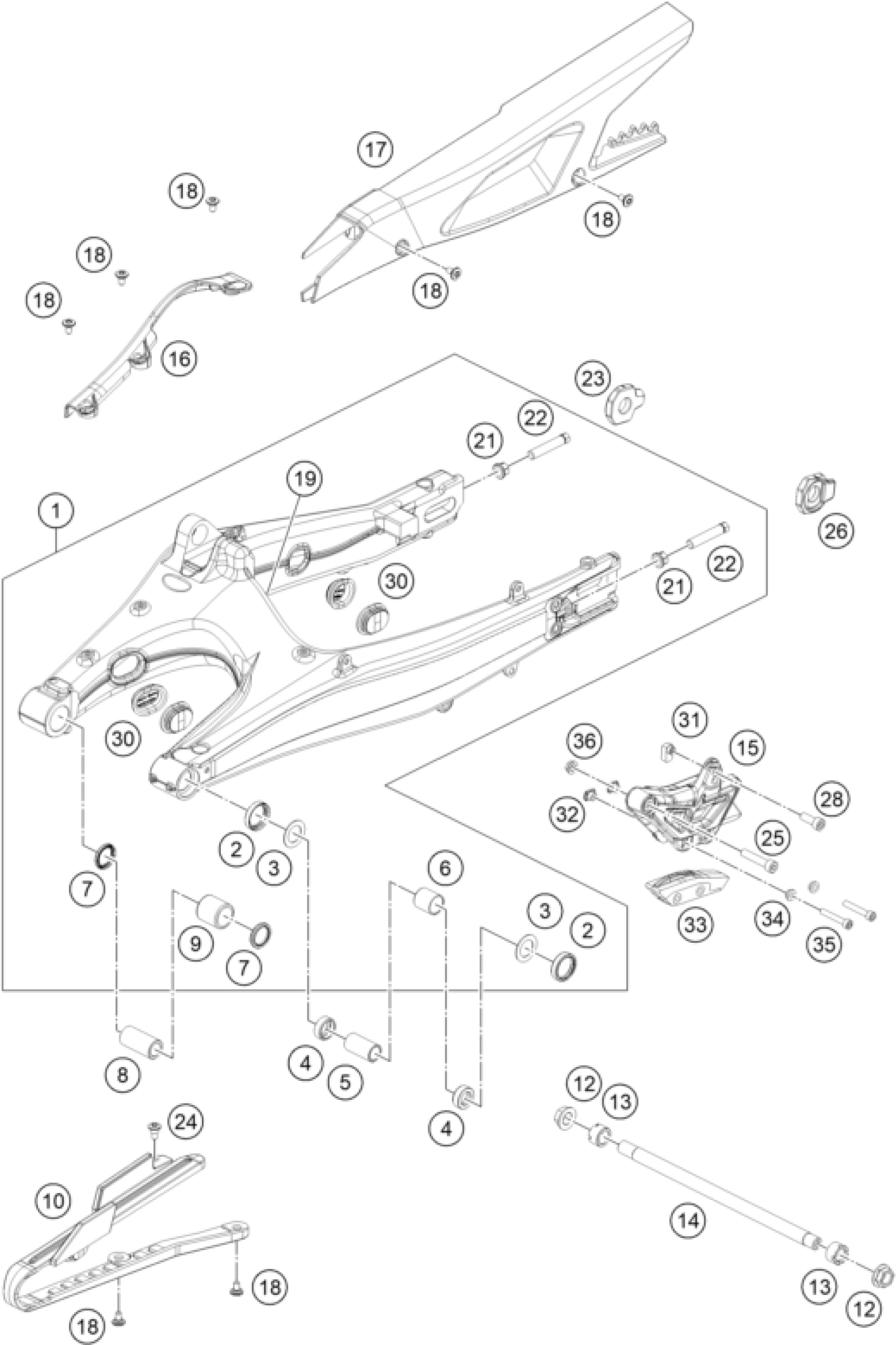

KTM 125 SMC R 2025 SWING ARM Diagram

#

Description
Price

1

ADVENTURE MY25 SWING ARM ASSEM

A60104030044C1

Unavailable

2

OIL SEAL RING 25X32X7

90104034001

$3.08

3

Thrust washer 22.2x31.7x1

90104036000

$1.49

4

cup for radial shaft seal

90104034000

$4.11

5

sleeve bushing 15.1x20x38

90104032000

$6.63

6

BUSH

96304031000

Unavailable

7

Seal oil

96304034001

Unavailable

8

swingarm bush

96304032000

Unavailable

9

swingarm needle bearing

96304033000

Unavailable

10

SLIDER CHAIN

A60304066000

Unavailable

12

nut swingarm axle

J910001401000

Unavailable

13

swingarm adjusting ring

90104046000

$5.88

14

Swingarm axle

96304037000

Unavailable

16

CLAMP HOSE BRAKE FRONT

A60113026010

Unavailable

17

COVER CHAIN OUTER

A60304061000

Unavailable

18

SCREW SOCKET STEP M6X1

J900000601211

Unavailable

21

flanged hex nut M10x1.25 WS13

90104010002

$2.05

22

BOLT HEX M10X1.25X50 WS10

90104040000

$5.23

23

chain tensioner right

96310084000

Unavailable

24

special screw M6x15-8.8-hexago

J900000600904

Unavailable

26

chain tensioner left

96310083000

Unavailable

30

PLUG ARM SWING

A60104041000

Unavailable

15

HOLDER CHAIN

A60304070000

Unavailable

31

Insert nut for chain guide

A60104070030

Unavailable

19

PLUG ARM SWING

A60104041001

Unavailable

25

BOLT SOCKET M6X1

J900000605008

Unavailable

36

nut hex flanged

J926060006

$1.49

33

Chain guide

A60104070000

Unavailable

34

Inner bushing chain guide

A60104070010

Unavailable

35

BOLT SOCKET-M6X1XL40XCL10.9XBL

J900000604005

Unavailable

32

COLLAR

A60104070020

Unavailable

28

BOLT SOCKET-M6X1XL 23.5XPRECOA

J900000602402

Unavailable
