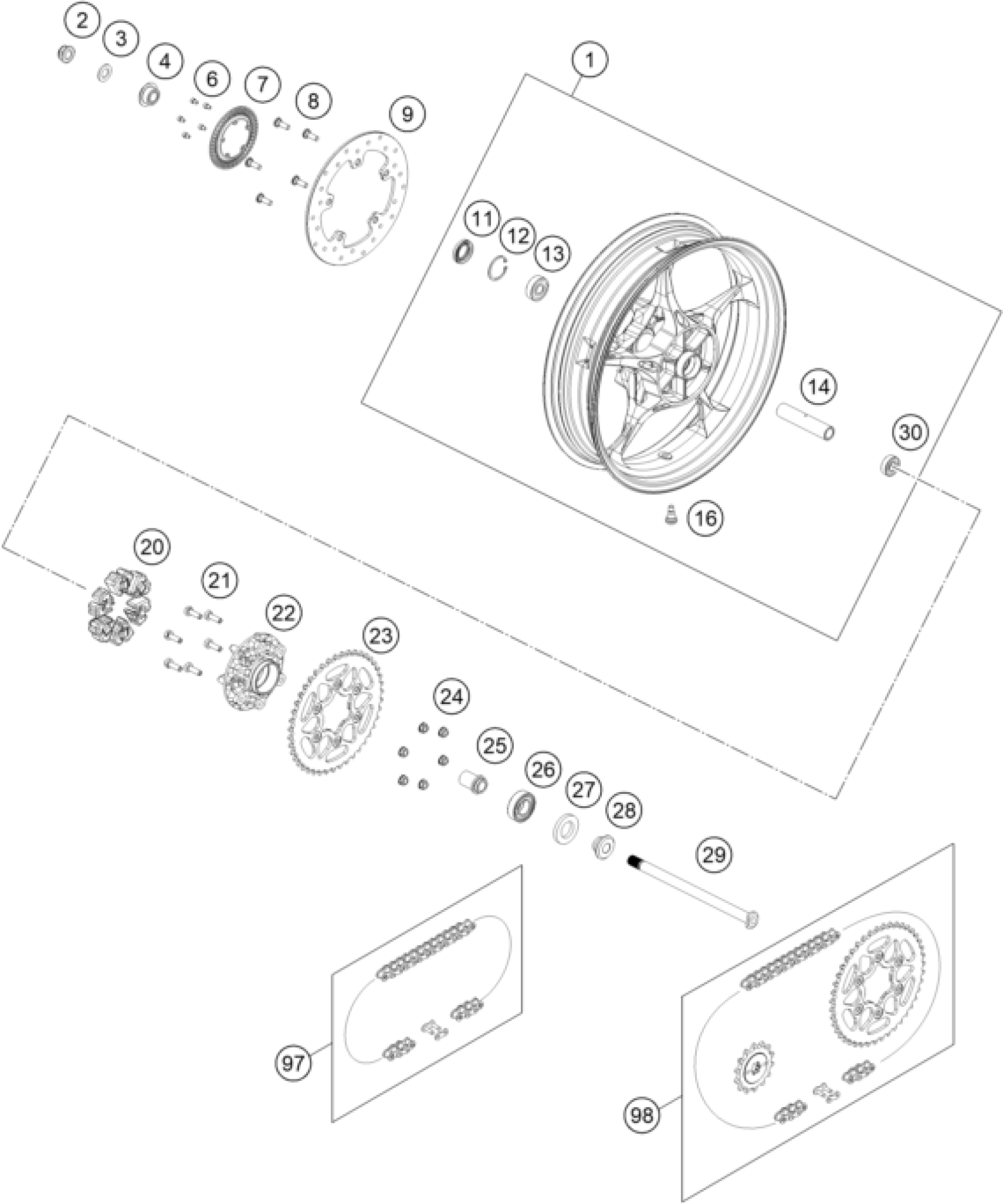

KTM 125 SMC R 2025 REAR WHEEL Diagram

#

Description
Price

1

Rear Wheel Assy. Black

96310097044C1

Unavailable

2

nut rear wheel axle

96310086000

Unavailable

3

washer 17x2.6

J690001700300

Unavailable

4

collar

J800001701700

Unavailable

6

BOLT SOCKET M5X0.8

J900000500800

$1.49

7

Sensor wheel, front

94542020000

$20.19

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

9

DISC BRAKE DIA 240

96310060000

Unavailable

11

SHAFT SEAL RING 30X47X8

J760304708

Unavailable

12

CIRCLIP 47X17

J710004717501

Unavailable

13

Ball bearing 17x47x14

J410001701400

Unavailable

14

SPACER

96310111000

Unavailable

16

VALVE CPL.

90109076000

$7.10

20

DAMPER RUBBER REAR WHEEL

90910059000

$4.11

21

SPECIAL SCREW M8X48

90810052000

$2.05

22

SPROCKET SUPPORT

90210050000

$57.96

23

chainring 48T

A60110051048

Unavailable

24

FLANGED NUT M8X1,25

90510052000

$1.49

25

Rear wheel bushing

96310013000

Unavailable

26

BALL BEARING 6205

J625062050

$14.86

27

SHAFT SEAL RING 29X52X7

J760295207

$5.23

28

Rear wheel bushing

96310011000

Unavailable

29

rear wheel axle

96310085000

Unavailable

30

Ball bearing

J410001701200

Unavailable

97

chain DID 118 roll

76910065118

$128.83

98

Drivetrain set 14Z/48Z

SPA2142483K118B

Unavailable
