Description

Price

9

PEDAL ASSEMBLY BRAKE

A60313050033

Unavailable

11

BALL BEARING 608

J625060800

$7.94

10

Brake pedal step plate

95813051000

$1.49

18

screw butn hd-m5x0.8xl10xpreco

J031050106

$1.49

13

SPRING

J500000700100

$1.49

15

Spacer bushing

93035065020

$1.49

1

Rear Master Cylinder Assembly

96313060033

Unavailable

17

COVER CYLINDER MASTER

A60113058000

Unavailable

2

Retaining bracket brake reserv

96313068000

Unavailable

3

BOLT SOCKET STEP M6X1

J900000601403

$1.49

7

Washer nylon 6.5X16X1

J125070001

$1.49

5

splint pin 2x15mm

J094020153

$1.49

14

SCREW CSK RD CROSS M8X1.25

J900000803400

Unavailable

12

SPACER LEVER CHANGE

A60313050010

Unavailable

4

SCREW BUTTON HEAD STEP M6X1

J900000602101

Unavailable

8

pin clevis dia 6

J920000602100

$1.49

6

grommet

J650001000700

Unavailable

20

WASHER SHIFTING LEVER

90534031020

$2.05

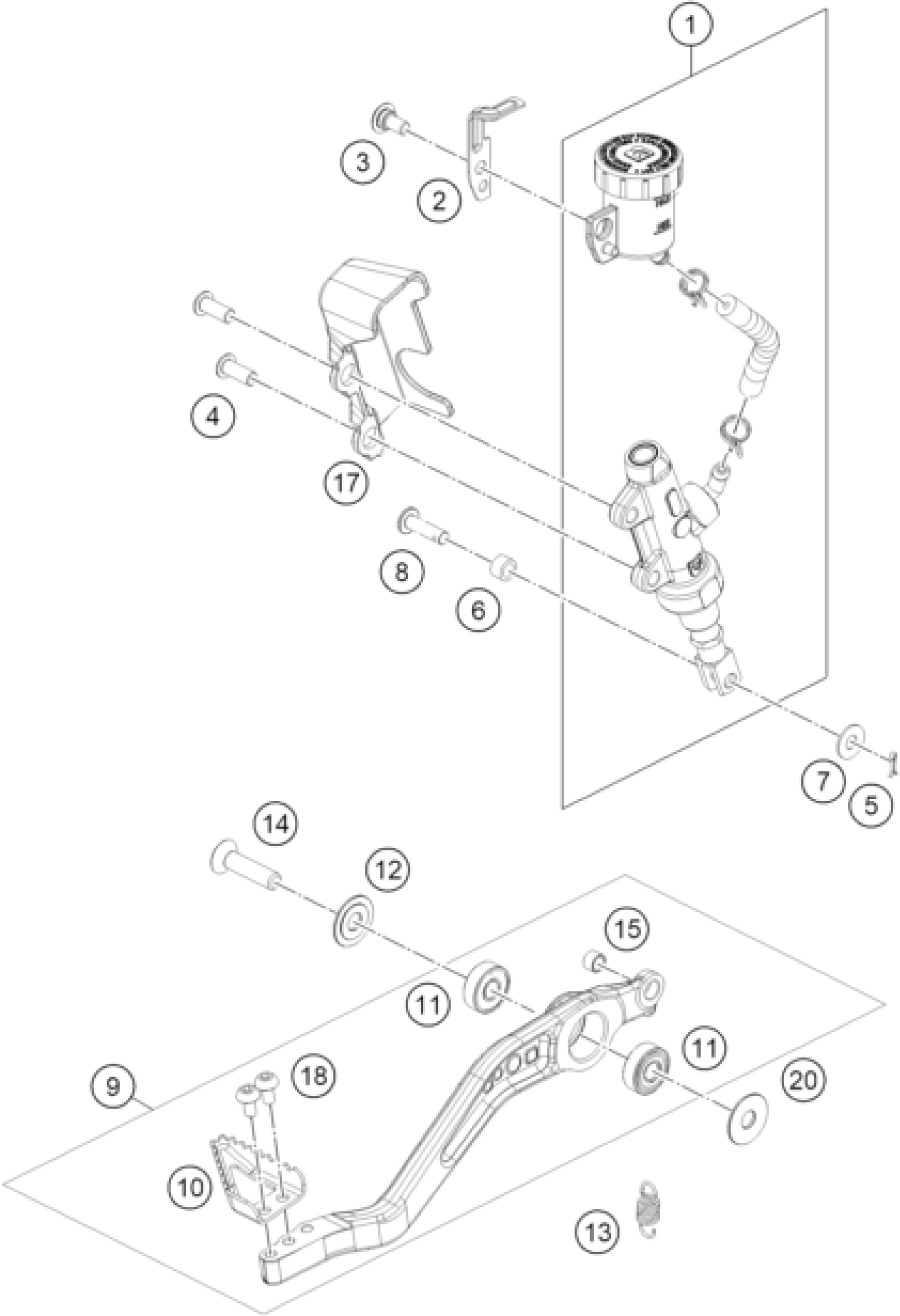

KTM 125 SMC R 2025 REAR BRAKE CONTROL Diagram

PEDAL ASSEMBLY BRAKE

BALL BEARING 608

Brake pedal step plate

screw butn hd-m5x0.8xl10xpreco

SPRING

Spacer bushing

Rear Master Cylinder Assembly

COVER CYLINDER MASTER

Retaining bracket brake reserv

BOLT SOCKET STEP M6X1

Washer nylon 6.5X16X1

splint pin 2x15mm

SCREW CSK RD CROSS M8X1.25

SPACER LEVER CHANGE

SCREW BUTTON HEAD STEP M6X1

pin clevis dia 6

grommet

WASHER SHIFTING LEVER
