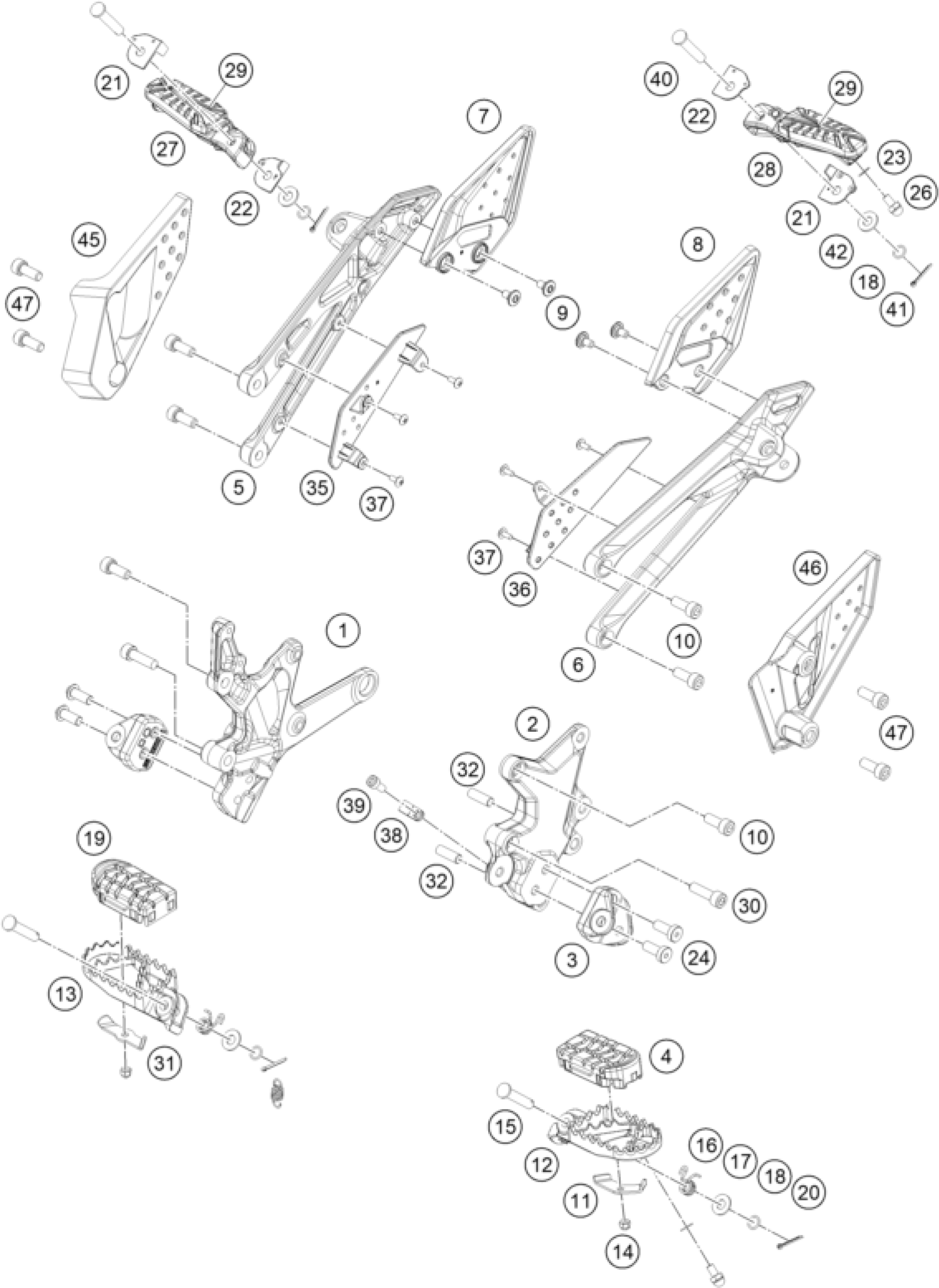

KTM 125 SMC R 2025 FOOTPEGS Diagram

#

Description
Price

1

HOLDER STEP RIDER RH

A60303N39000C1

Unavailable

2

HOLDER STEP RIDER LH

A60303N38000C1

Unavailable

3

BRACKET STEP

A60303039010

Unavailable

4

DAMPER STEP RIDER LH

A60103040090

Unavailable

5

HOLDER STEP PILLION RH

A60303N49000C1

Unavailable

6

HOLDER STEP PILLION LH

A60303N48000C1

Unavailable

7

GUARD HEEL PILLION RH

A60103049010

Unavailable

8

Heel protector rear left

A60103048010

Unavailable

9

SCREW SOCKET STEP M6X1

J900000601207

Unavailable

10

SCREW SOCKET-M8X1.25

J900000802400

Unavailable

11

BRACKET STEP RIDER LH

A60103038010

Unavailable

12

STEP RIDER LH

A60103038000

Unavailable

13

STEP RIDER RH

A60103039000

Unavailable

14

NUT - NYLOC :- M5 X 0.8

J910000500600

Unavailable

15

Pin footrest pivot black

93003054000

$2.05

16

SPRING TORSION

J510000900200

Unavailable

17

Washer M8

J125080006

$3.08

18

O-RING 9X1,5

J770009015

$1.49

19

DAMPER STEP RIDER RH

A60103041090

Unavailable

20

PIN COTTER DIA 2.3

J730000301800

Unavailable

21

plate lock lower

96203037010

Unavailable

22

plate lock upper

96203037020

Unavailable

23

WASHER PLAIN SMALL

J690000600101

$1.49

24

BOLT SOCKET-M8X1.25

J900000802005

Unavailable

26

CAP SCREW M6X10 SS

J029060103S

$2.05

27

Rear footpeg cmpl. right

93003151033

$21.87

28

Rear footpeg cmpl. left

93003150033

$21.87

29

Footpeg rubber

93003140010

Unavailable

30

SCREW SOCKET-M8X1.25

J900000803006

Unavailable

31

BRACKET STEP RIDER RH

A60103039010

Unavailable

32

Threaded bolt M10

95803027000

$2.05

35

TRIM STEP PILLION RH

A60103049020

Unavailable

36

TRIM STEP PILLION LH

A60103048020

Unavailable

37

SCREW TRUSS

J900000401001

Unavailable

38

CLAMP

A60103038020

Unavailable

39

Hex socket screw M6X14

J912060143

$7.28

40

pin clevis dia 8

J920000804701

$1.49

41

pin cotter-dia. 2.5xl 18

J094020186

$1.49

42

Washer, M8

J125100002

$1.49

45

GUARD HEEL RH

A60103160040

Unavailable

46

GUARD HEEL LH

A60103160030

Unavailable

47

Hexagon socket screw M8x19

J900000801900

$1.49
