Description

Price

1

Evaporative canister hosing cm

96315001000

Unavailable

8

fuel pipe EVAP

96315026000

Unavailable

10

PIPE FUEL

96315023000

Unavailable

14

PLUG FUEL DRAIN

90515011000

$1.49

7

fuel pipe EVAP

96315017000

Unavailable

9

Drain pipe EVAP

96315029000

Unavailable

6

fuel pipe EVAP

96315021000

Unavailable

4

Valve purge

90607830000

$52.07

5

fuel pipe EVAP

96315027000

Unavailable

13

clamp

J310000101200

Unavailable

11

HOSE CLAMP

90507017000

$1.49

16

CLAMP :P.COK OUT+F.FLTR IN,OUT

J310000100900

Unavailable

3

EVAP canister strap bottom

96315003000

Unavailable

2

EVAP canister strap top

96315013000

Unavailable

15

CLAMP

90107013008

$1.49

18

CONNECTOR FOR BREATHER AND VAP

J610000600400

$1.49

12

STRAP CABLE

J330000515000

Unavailable

19

Hexagon nut M6

J926060001

$1.49

17

Spring clip 9.5

J300000801000

$1.49

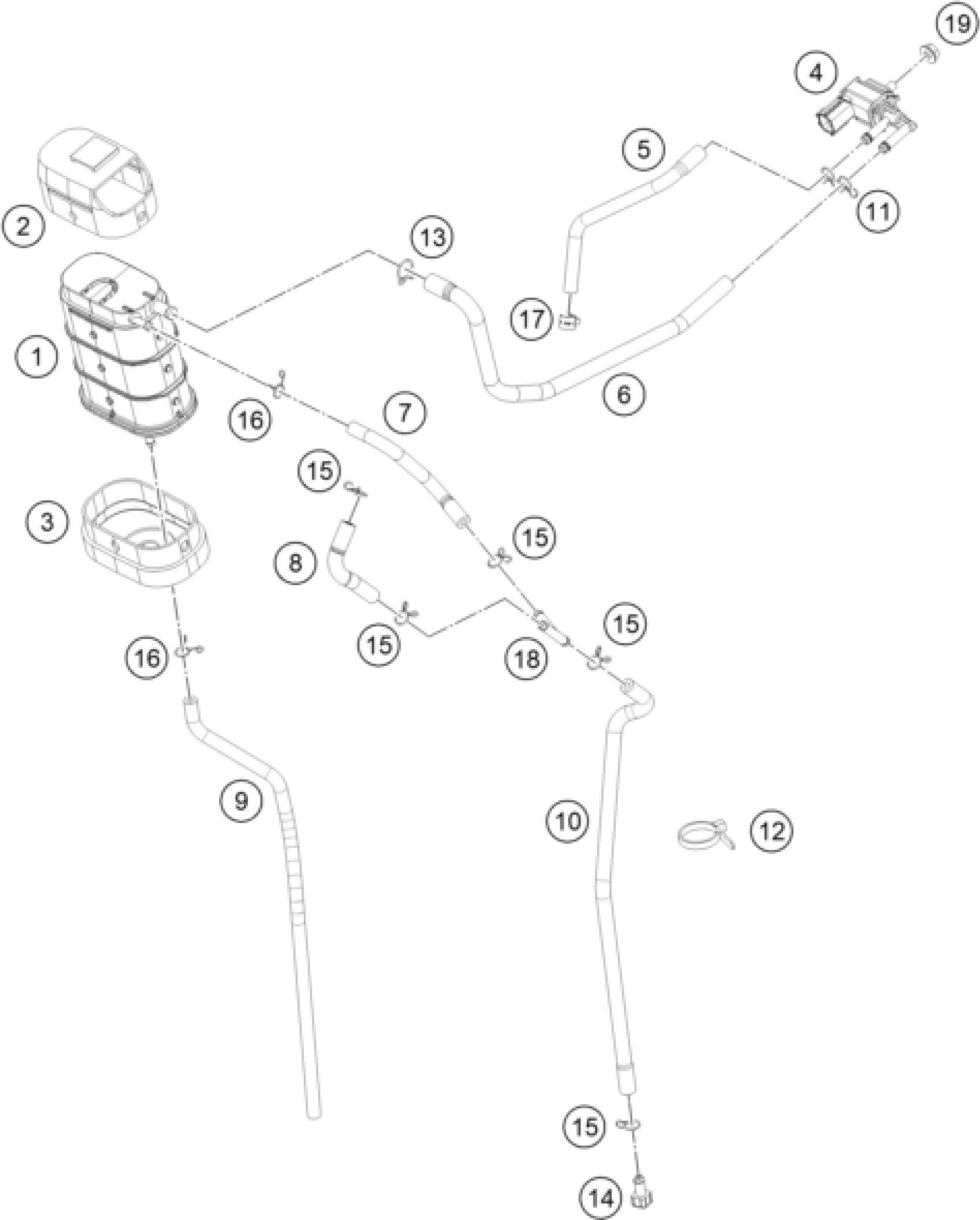

KTM 125 SMC R 2025 EVAPORATIVE CANISTER Diagram

Evaporative canister hosing cm

fuel pipe EVAP

PIPE FUEL

PLUG FUEL DRAIN

fuel pipe EVAP

Drain pipe EVAP

fuel pipe EVAP

Valve purge

fuel pipe EVAP

clamp

HOSE CLAMP

CLAMP :P.COK OUT+F.FLTR IN,OUT

EVAP canister strap bottom

EVAP canister strap top

CLAMP

CONNECTOR FOR BREATHER AND VAP

STRAP CABLE

Hexagon nut M6

Spring clip 9.5
