COVER

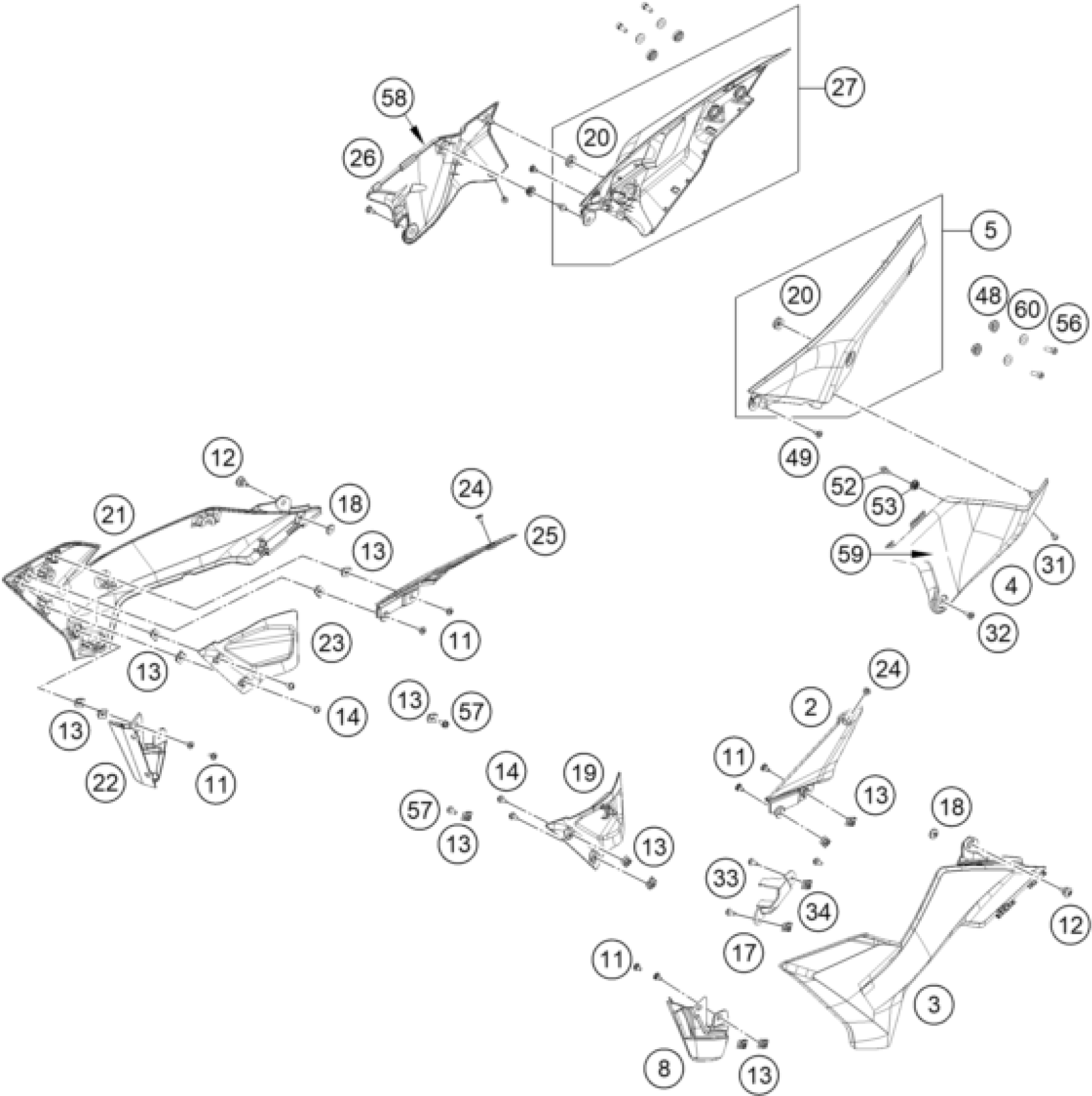

KTM 125 SMC R 2025 COVER Diagram
#
2
SPOILER TANK INNER LH
A60308050010
Unavailable
3
SMC 125 SPOILER TANK OTR LH OR
A60208050000EBA
Unavailable
4
COVER SIDE LH
A60108041000AB
Unavailable
5
ENDURO125 SEATCOWL LH LOWER+UP
A60308019010ABB
Unavailable
8
COVER RADIATOR LH
A60335034000
Unavailable
11
special screw M6x15-8.8-hexago
J900000600904
Unavailable
12
SCREW BUTTON HEAD STEP M6X1
J9000006018U0
Unavailable
13
Clip nut M6
93003077000
$2.05
14
SCREW BUTTON HEAD STEP M6X1
J900000601404
$1.49
17
BRACKET UNIT CONNECTIVITY
A60308050030
Unavailable
18
DAMPER
J650002000600
Unavailable
19
SPOILER TANK INNER FRONT LH
A60308050020
Unavailable
20
GROMMET
J650002201400
$1.49
21
SMC 125 SPOILER TANK OTR RH OR
A60208051000EBA
Unavailable
22
Radiator protection right
A60335035000
Unavailable
23
SPOILER TANK INNER FRONT RH
A60308051020
Unavailable
24
Flange bolt M6x11.7
J900000601213
Unavailable
25
SPOILER TANK INNER RH
A60308051010
Unavailable
26
COVER SIDE RH
A60108042000AB
Unavailable
27
ENDURO125 SEATCOWL RH LOWER+UP
A60308019020ABB
Unavailable
31
RIVET
93814050000
$1.49
32
SCREW SOCKET STEP M6X1
J900000601502
Unavailable
33
SCREW TRUSS M5
J031050146
Unavailable
34
CLIP NUT M5
90108050001
$2.05
48
COLLAR
J800000900800
Unavailable
49
SCREW SOCKET STEP M6X1
J900000601207
Unavailable
52
PIN QUICK RELEASE
A60107044000
Unavailable
53
Rubber grommet ignition lock c
93011068010
$1.49
57
BOLT FLANGED M6X1
J900000601409
Unavailable
56
Cylinder head screw with ISK M
J900000802202
Unavailable
60
Washer 17x24x2
J690001720000
Unavailable
58
Sticker, cover right
A60308081000
Unavailable
59
Sticker, cover left
A60308080000
Unavailable
