Description

Price

1

Radiator

A60235010000

Unavailable

2

RADIATOR CAP

90135016100

$17.20

4

SILENTBLOCK M6

93335001000

$4.11

5

nut hex flange-m6x1xht.6xcl4xb

J926060003

$1.49

6

Spring ring B6

J127060001

$1.49

7

washer plain-id6.5xod16xthk1xb

J125070004

$1.49

8

Radiator fan, cmpl

95835041044

$169.69

9

SCREW TAPPING PAN DIA 4.8

J900000501900

$1.49

10

HOSE CLAMP D23

90135020000

$3.08

11

Spring band clamp D=29

J310001202900

$1.58

12

Radiator hose

96235026000

Unavailable

13

Radiator hose

96235025000

Unavailable

14

TANK EXPANSION

96335065000

$16.54

15

PLUG F. EXPANSION TANK

90135066000

$3.08

16

COMPENSATING TANK O-RING

90102055000

$1.49

17

Hexagon socket screw, M6X25

J912060253

$1.49

18

COVER TANK EXPANSION

96335003000

$5.51

19

SCREW SOCKET M6X1

J900000601607

$1.49

22

drain pipe

60035067820

$4.85

23

PIPE COOLANT

J600001041700

$4.01

24

CLAMP 10MM

90107018011

$2.05

25

Strap-clip swivel

95835068000

$3.08

26

Spring clip 9.5

J300000801000

$1.49

32

Rubber grommet

95835016000

$1.49

36

BOLT FLANGED STEP M6X1

J900000601506

Unavailable

37

COWL RADIATOR

A60135036000

Unavailable

40

SCREW TAPPING PAN DIA 4.8

J900000501900

$1.49

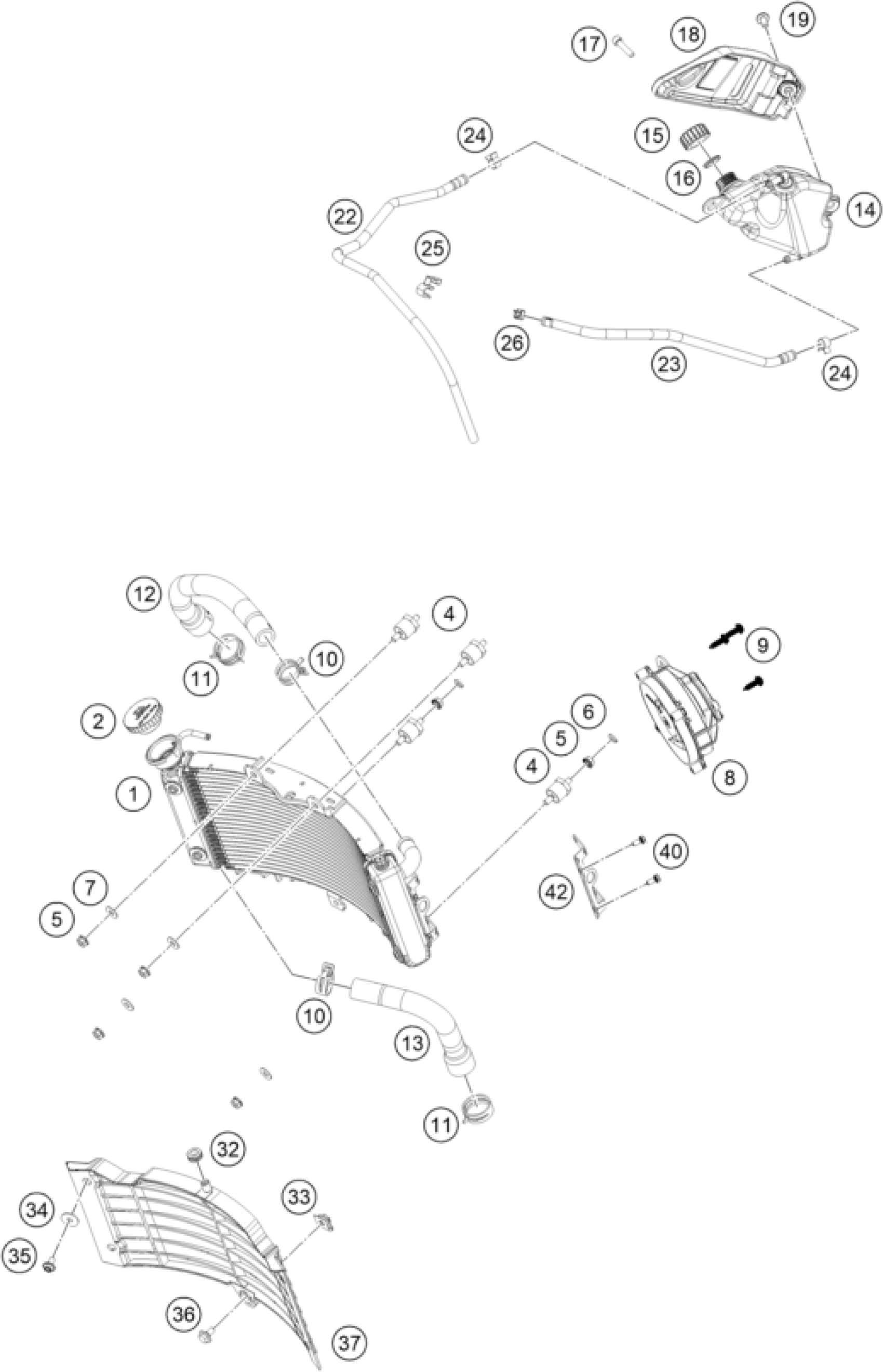

KTM 125 SMC R 2025 COOLING SYSTEM Diagram

Radiator

RADIATOR CAP

SILENTBLOCK M6

nut hex flange-m6x1xht.6xcl4xb

Spring ring B6

washer plain-id6.5xod16xthk1xb

Radiator fan, cmpl

SCREW TAPPING PAN DIA 4.8

HOSE CLAMP D23

Spring band clamp D=29

Radiator hose

Radiator hose

TANK EXPANSION

PLUG F. EXPANSION TANK

COMPENSATING TANK O-RING

Hexagon socket screw, M6X25

COVER TANK EXPANSION

SCREW SOCKET M6X1

drain pipe

PIPE COOLANT

CLAMP 10MM

Strap-clip swivel

Spring clip 9.5

Rubber grommet

BOLT FLANGED STEP M6X1

COWL RADIATOR

SCREW TAPPING PAN DIA 4.8
