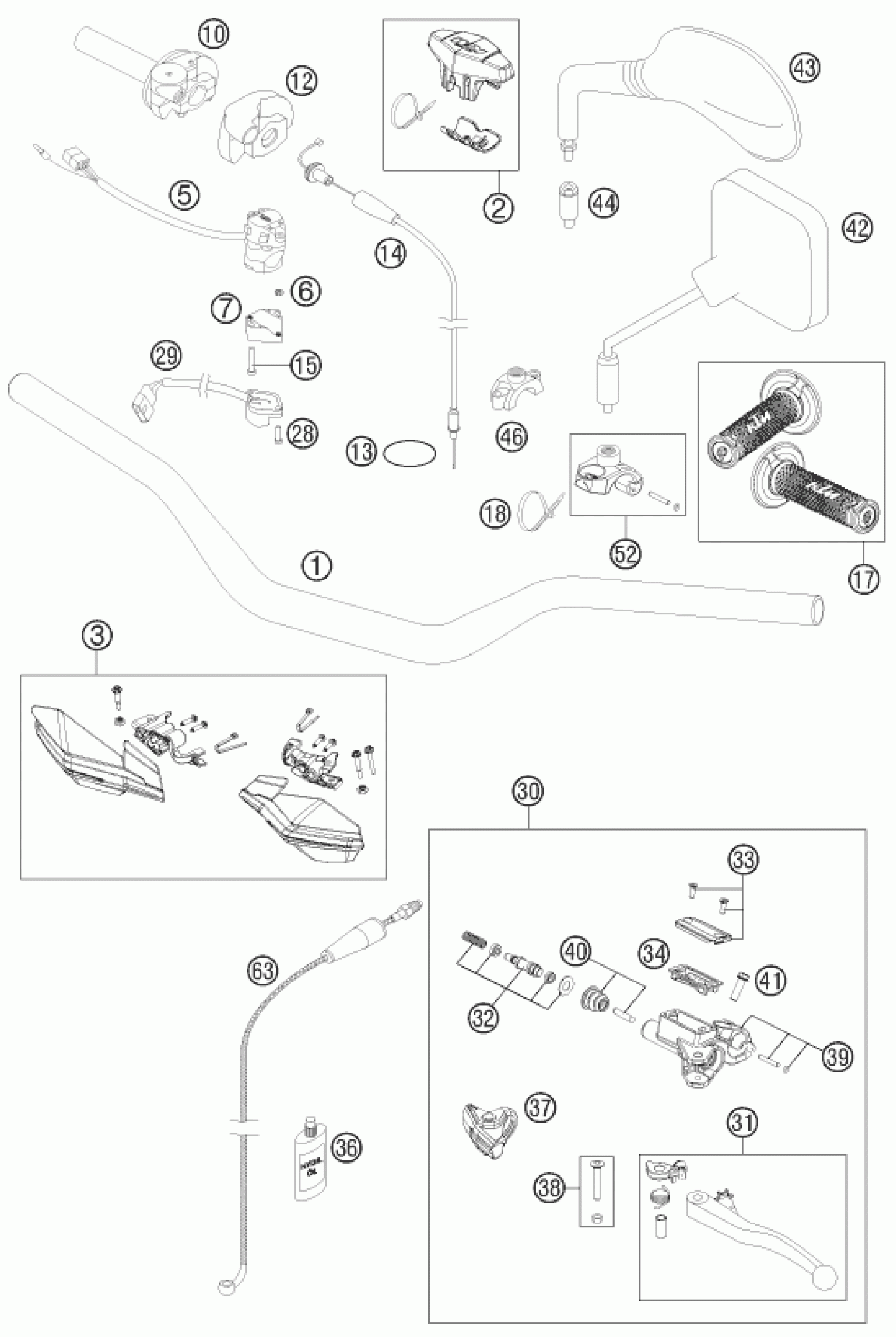

KTM 125 EXC SIX-DAYS 2013 HANDLEBAR, CONTROLS Diagram

O-ring 40.94X2.62 NBR70

0770021300

$3.08

HANDLEBAR D=28MM SX/EXC BLACK

5480200130030

$155.11

Bar pad cmpl.

77202002144

$22.94

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

THROTTLE GRIP CPL. 13

51502010100

$67.31

HANDGUARDS CPL.LE+RI WHITE 12

7810297900028

Unavailable

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

PROTECTION COVER '97

50302020000

$19.16

THROTTLE CABLE 2T.DOM/KEIH.

51502091100

$39.45

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

GRIP SET

78102021000

$22.71

Cable tie 200/4.6mm black

44011076200

$1.49

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

FLASHER SWITCH CEV '98

50311029000

$51.98

MASTER CYLINDER CPL. 9,5MM 09

50302030300

$350.95

CLUTCH LEVER CPL. 2009

50302031300

$45.15

REP.KIT PISTON 9,5MM 09

50302032100

$81.15

COVER HYDR. CLUTCH CPL. 09

50302033200

$28.14

RUBBER FOR RESERVOIR 09

50302034100

$19.16

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

MUD CAP 09

50302037100

$36.74

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

CLAMP, CYL. PIN, O-RING

83013005000

$53.85

PUSH ROD CPL. 09

50302046000

$31.78

HH collar screw M6x16 TX30

0025060166

$3.08

Rear view mirror left

58012040000

Unavailable

Rear view mirror right

58012140000

Unavailable

MIRROR L/S 98

58412040000

Unavailable

MIRROR R/S 98

58412041000

Unavailable

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

Clamp for mirror

58012040150

$22.81

CLAMP FOR MIRROR CPL. 09

50302044000

$49.36

CLUTCH PIPE L=970MM 04

50332063200

$101.44
