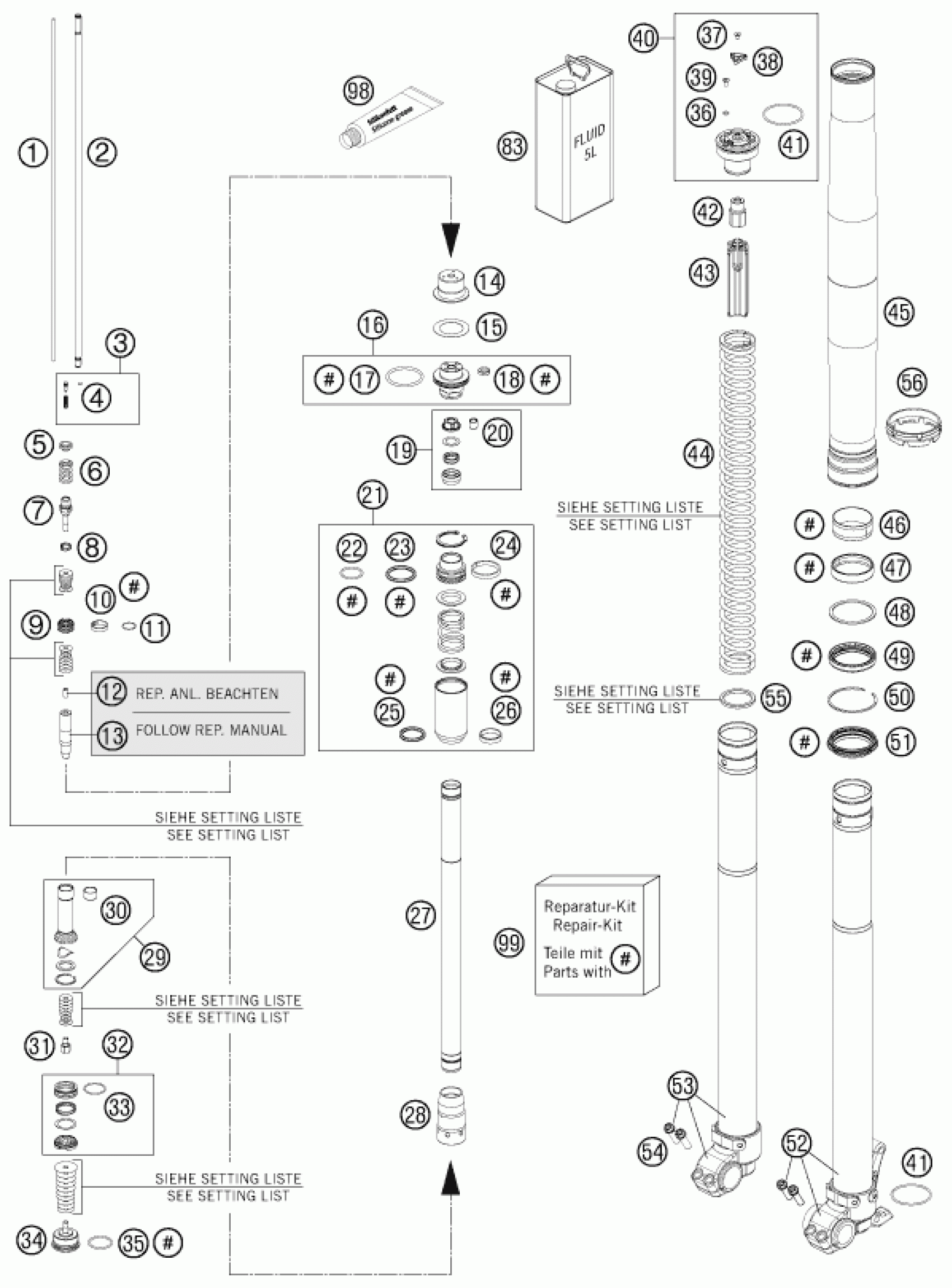

KTM 125 EXC SIX-DAYS 2013 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

44

SPRING D43,8 L465 5,0N/MM SET

91410093S

Unavailable

13

Needle 15x59,5 red

48601123

$16.11

14

Spring retainer 8,3x44x1,5

48601061

$2.05

17

O-ring 40x3 NBR70 Adcoat 71

48601130

$2.05

18

Seal ring Freudenberg 8mm 86Sh

48600954

$5.23

19

CHECK VALVE D21 CPL.

48601025S

$28.88

20

Guide bushing 8x10x10

48600953

$4.90

21

Reservoir 36x74,5 cpl.

48601021S

$67.01

22

O-RING 24x2

48601127

$1.49

23

X-ring 29,74x3,53 NBR70 Adcoat

48601111

$3.08

24

Pistonring 32x36x5

48601124

$6.44

25

X-ring 24,99x3,53 NBR70 Adcoat

48601110

$3.08

26

Guide bushing 24x27x6

48601109

$4.11

27

Cartridge-tube 20x403

48601031

$82.93

28

Screw sleeve M30x1/M24x0,75

48601019

$40.50

29

HYDROSTOP KIT

R14034

$41.04

30

BUSHING

48601180

$2.61

31

Adapter M6x0,5xM6x0,5x19

48601083

$2.61

32

Piston 6x28,8x13 compression c

48600984S

$24.65

33

O-ring 24x1,5 NBR70 Adcoat71

48601133

$1.49

34

SCREW CAP M30

48601020

$25.35

35

O-ring 26x2 NBR70 Adcoat 71

48601132

$2.05

38

Adjuster compression white

48601117

$3.08

38

Adjuster rebound red

48601118

$1.49

40

SCREW CAP M51X1,5 COMP. KPL

48601116S

$89.88

40

SCREW CAP M51X1,5 REB. KPL.

48601050S

$89.80

42

Lock nut M8 h33 WAF19

48601034

$9.53

43

Spring guide 8,2x32,5x102

48601035

$3.48

49

Shaft seal SKF 48x57,9x11,4 re

48601179

$13.64

4

O-ring 2,2x1,6 Viton75 green

46811265

$1.49

8

Spring (11,4) 0,4-8 valve

48600382

$2.05

55

Washer 35x43x1,5 plastic

48600458

Unavailable

83

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

36

O-ring 4x1,5 NBR70

50180222

$1.49

37

HS countersunk head screw M4x1

48600527

$2.05

39

Cross countersunk head screw M

48600481

$2.05

41

O-ring 46x2 NBR70 siliconized

48600048

$3.08

45

Fork outer tube 49,13x577 dt54

48600736

$462.35

46

Guide bushing 47x49x20

48601008

$12.05

47

Guide bushing 48x52x12

48601009

$12.05

48

Supportwasher 50x57,6x1,5

48600013

$3.08

50

Snap ring SB58x1,5 acc drawing

48600070

$2.05

55

Washer 35x43x2,5 plastic

48600456

Unavailable

55

Preload bush 35x43x3,5

48600457

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

51

Dirt scarper SKF 48mm red

48601178

$12.80

52

AXLE CLAMP L/S WITH INNER TUBE

48601028S1

$392.78

53

AXLE CLAMP R/S WITH INNER TUBE

48601029S1

$332.03

54

HH collar screw M8x25

0025080256

$2.05

99

REPAIR - KIT

R24001

$119.39

44

SPRING D43,8 L465 3,8N/MM SET

91410082S

Unavailable

44

SPRING D43,8 L465 4,0N/MM SET

91410083S

Unavailable

44

SPRING D43,8 L465 4,2N/MM SET

91410084S

Unavailable

44

SPRING D43,8 L465 4,4N/MM SET

91410085S

Unavailable

44

SPRING D43,8 L465 4,6N/MM SET

91410086S

Unavailable

44

SPRING D43,8 L465 4,8N/MM SET

91410092S

Unavailable

15

SHIM 29X44X0,3

48601184

$1.73

16

SCREW SLEEVE M23,5 CPL.

48601022S

$36.68

12

Pusher DO5

48601033

$3.08

13

Needle 14x59,9

48600999

$11.58

5

GUIDE SHIM REBOUND SPRING

48601048

$1.73

1

Adjustment tube 3x486

48600996

$6.35

2

Piston rod 8x499

48601054

$61.69

3

Needle 5x10 cpl.

48600998S

$10.37

6

Spring (11) 38-25 rebound

48601049

$3.48

7

Tap 6x45 rebound

48600986

$14.25

9

Piston 6x20x11 rebound

48600985

$14.27

10

Pistonring 18x20x4,9

48601171

$5.23

11

O-ring 15x1 NBR70 Adcoat71

48601128

$1.49

56

Fork protection ring 62,1mm

48600698

$9.34

44

SPRING D43,8 L465 5,2N/MM SET

91410094S

Unavailable
