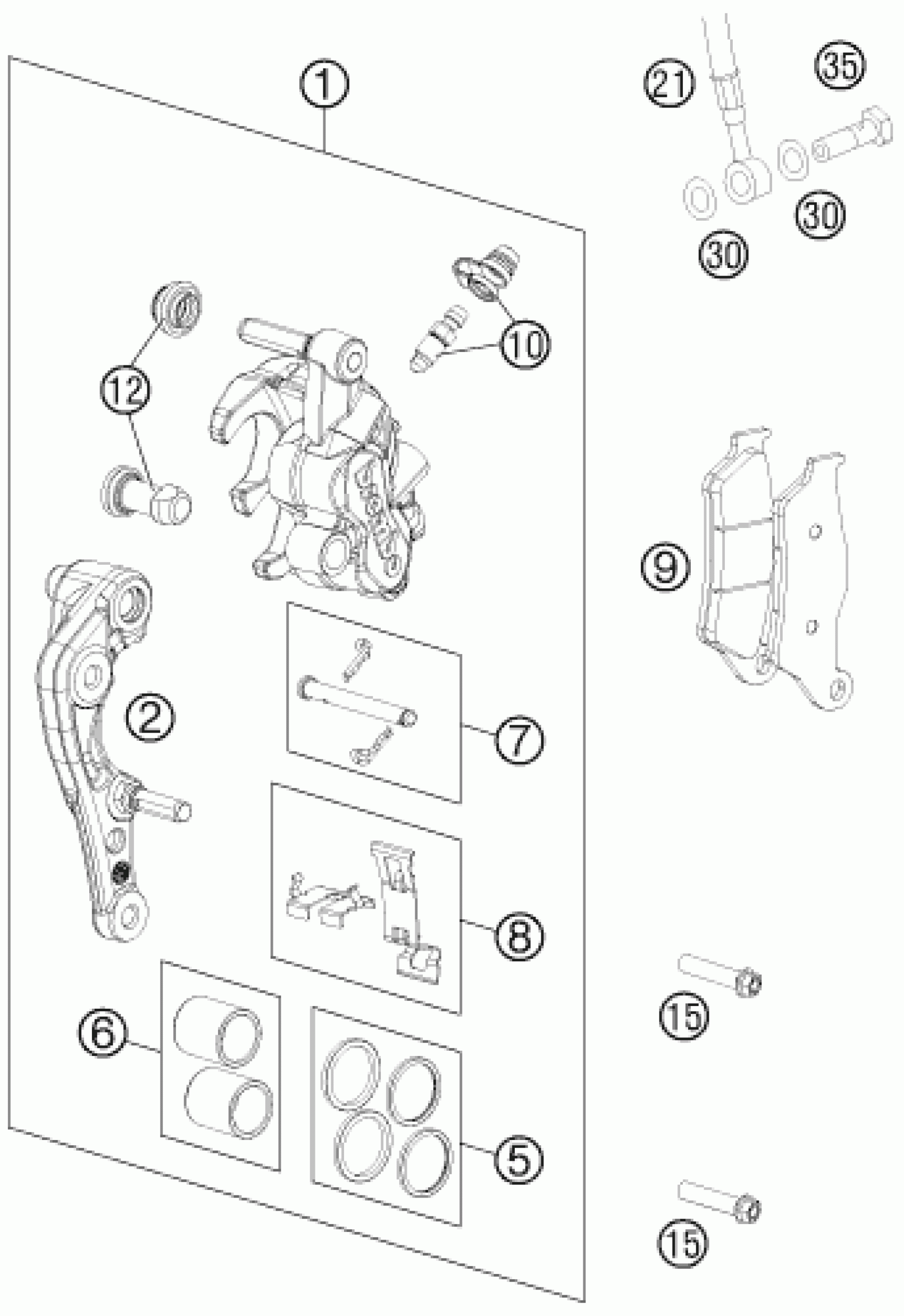

KTM 125 EXC SIX-DAYS 2013 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

CALIPER NAT. WITHOUT PADS

7701301500101

$347.34

2

BRAKE CALIPER SUPPORT FRONT 09

77013014000

$143.33

5

REP. KIT SEALS 24MM

77013021000

$23.55

6

REP. KIT PISTON 24MM

77013019000

$53.85

7

BOLT CPL. 09

77013017000

$25.98

8

RETAINING PLATE SET BREMBO

77013018000

$27.67

9

BRAKE PADS TOYO B153

77013020000

$44.96

10

BLEEDER SCREW WITH CAP

61013020100

$9.81

12

CUP SET SHORT

54613218000

$23.55

15

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

21

BRAKEHO. FRONT 1300MM 2000

59013011000

$121.64

30

sealing ring DIN 7603 10x14x1

0603100141

$2.05

35

HOLLOW SCREW M10X1X19

50213025000

$6.54
