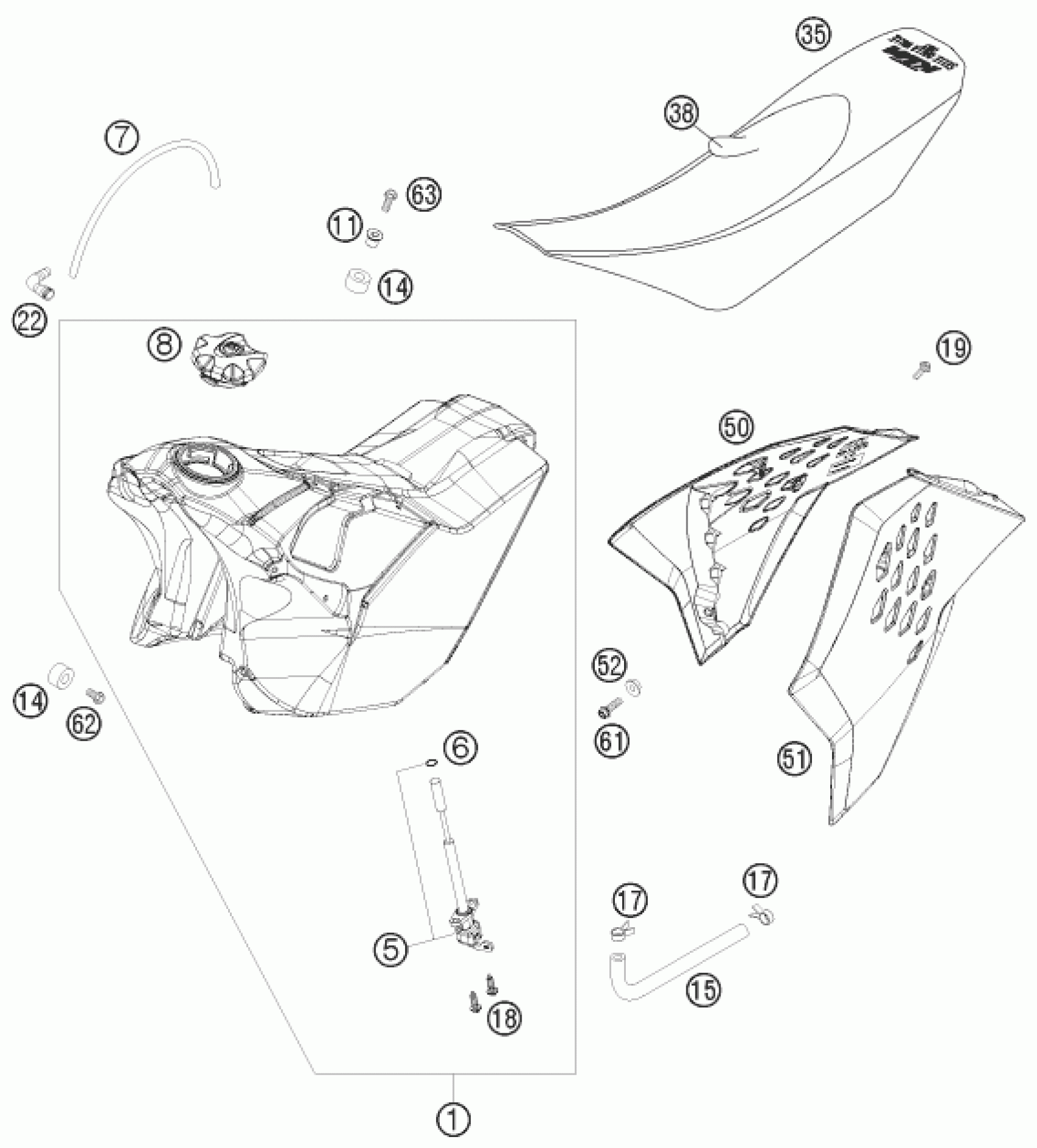

KTM 125 EXC SIX-DAYS 2008 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. 9,5L EXC 08

7700721306630

$274.86

5

GAS COCK ON/OFF/RES 08

78007004000

$28.04

6

O-RING 11X2 VITON

0770110021

$2.05

7

BREATHER TUBE 6X9X300

50307000300

$1.49

8

TANK PLUG ORANGE/BLACK

7800700804404

$29.07

11

TANK BUSHING 07

77307026000

$4.11

14

TANK ROLLER 12X26X12 '98

50307014000

$11.02

15

FUEL PREFORMED HOSE SX 2001

50307016000

$8.87

17

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

18

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

19

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

35

SEAT SXS 08

77307140000

Unavailable

38

SEAT COVER 08

77307140050

Unavailable

50

SPOILER RIGHT BLACK

7730805110030

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

61

HH collar screw M6x20 TX30

0025060206

$3.08

62

HH collar screw M6x12 TX30

0025060126

$3.08

63

COLLAR SCREW M6X27 TX

0024060273

$3.08

51

SPOILER LEFT BLACK

7730805010030

Unavailable
