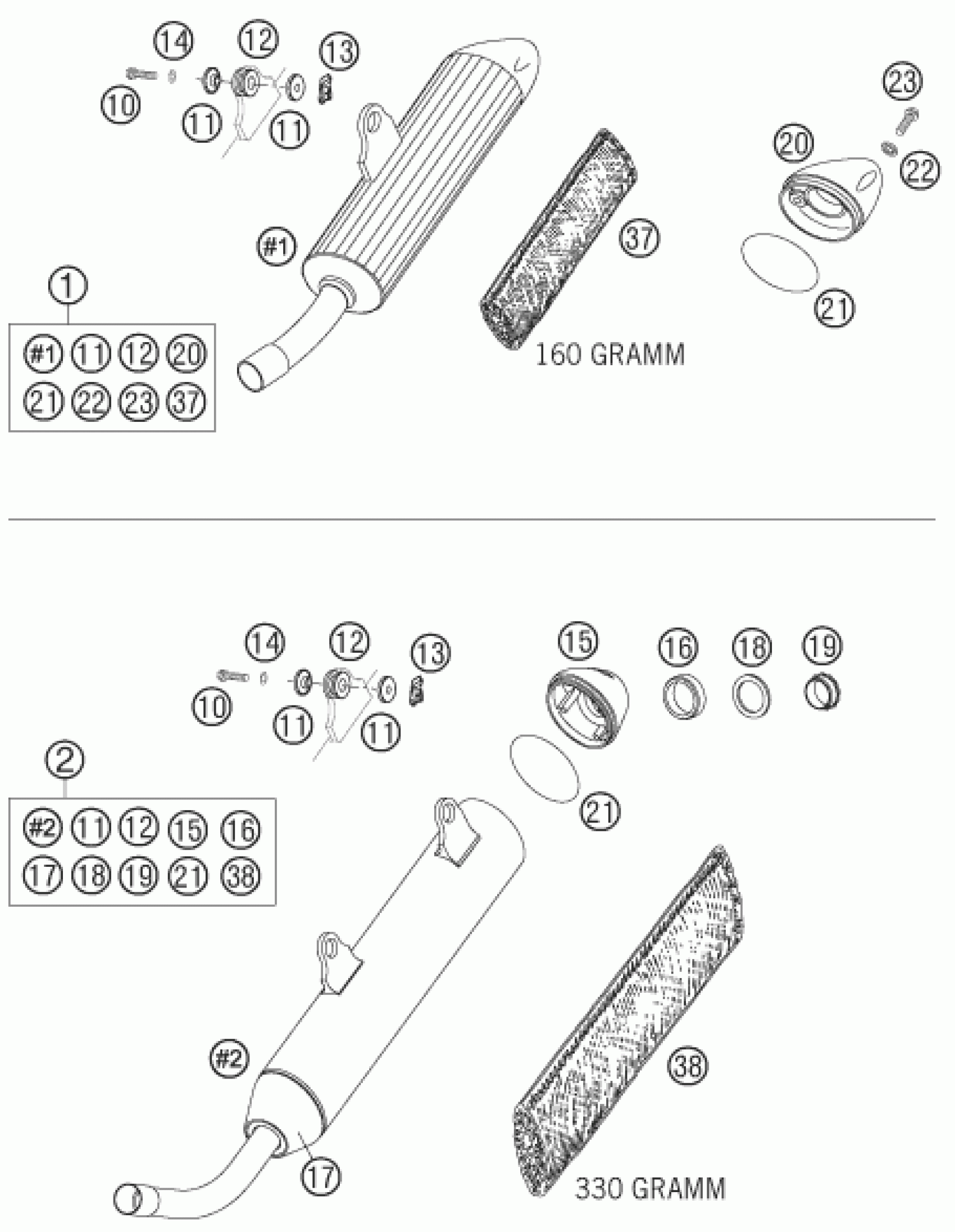

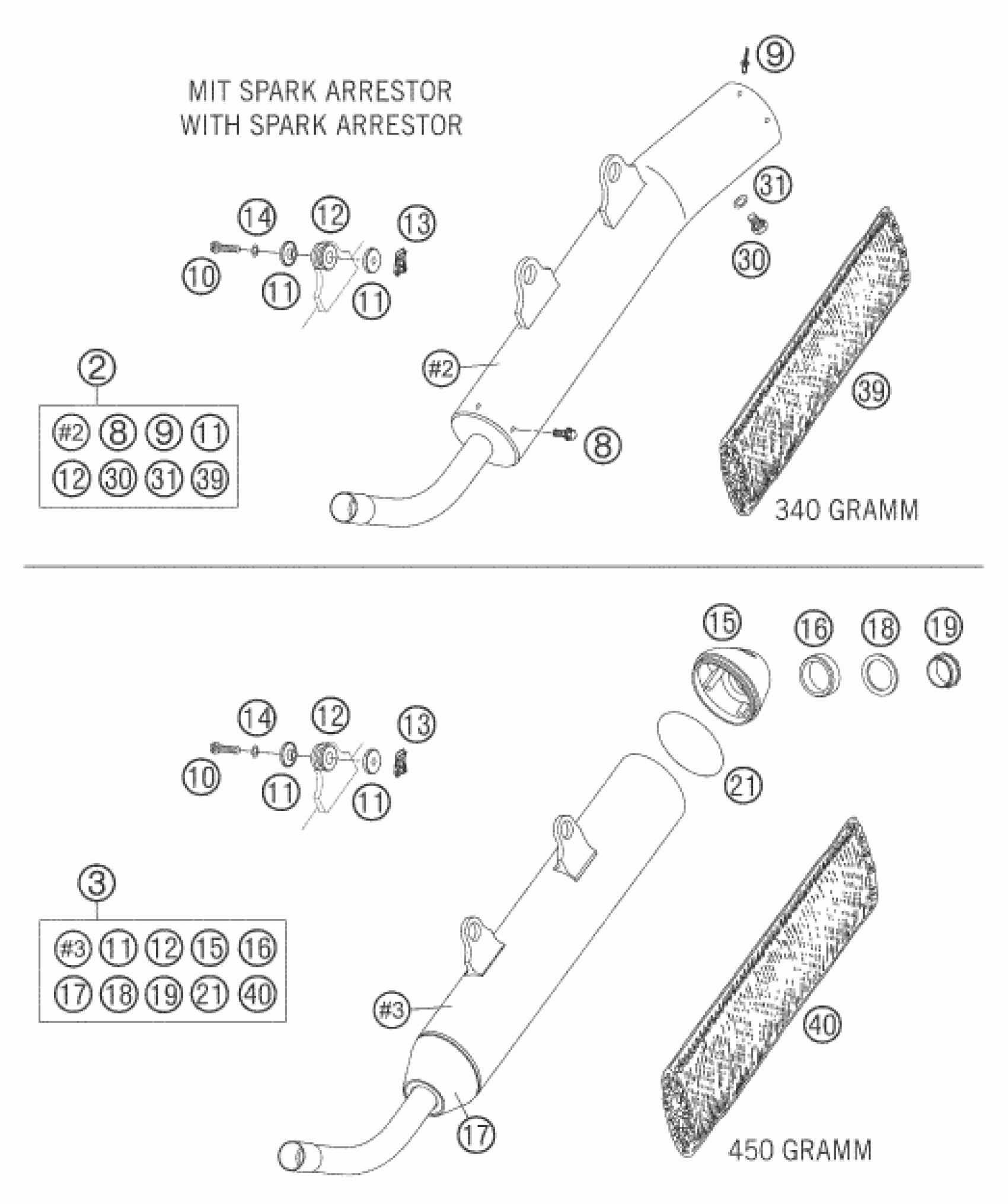

KTM 125 EXC SIX-DAYS 2005 MAIN SILENCER Diagram

EX.SIL.200/250/300 MXC/EXC '00

52305082100

$342.97

EXH.SILEN. 200-300 EXC EU 04

54805083000

$267.22

SPECIAL SCREW M 5,0X10

0009050103

$2.05

RIVET 4,8X10,3 ALU

0011481030

$3.08

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

clip nut M6

54603048100

$4.11

spring washer DIN 137 B - 6

0137060003

$2.05

SILENCER ENDCAP 2-STROKE 2004

54805079052

$38.16

SILCENCER RUBBER 2-STROKE 2005

54805079150

$14.95

SILENCER CONNECTING-CAP 2004

54805079060

$20.88

SILENCER DISC 2004

54805083060

$4.11

SILENCER SCREW 2-STROKE 2004

54805079058

$7.39

0-RING 55,00X2,00 NBR70

0770055020

$2.05

PLUG DIN0910-M 10X1

0910100003

$4.11

sealing ring DIN 7603 10x14x1

0603100141

$2.05

STUFFING YARN 340 GRAM

58005078340

$71.62

STUFFING YARN-SET 450 GRAM 04

54805078450

$70.86
