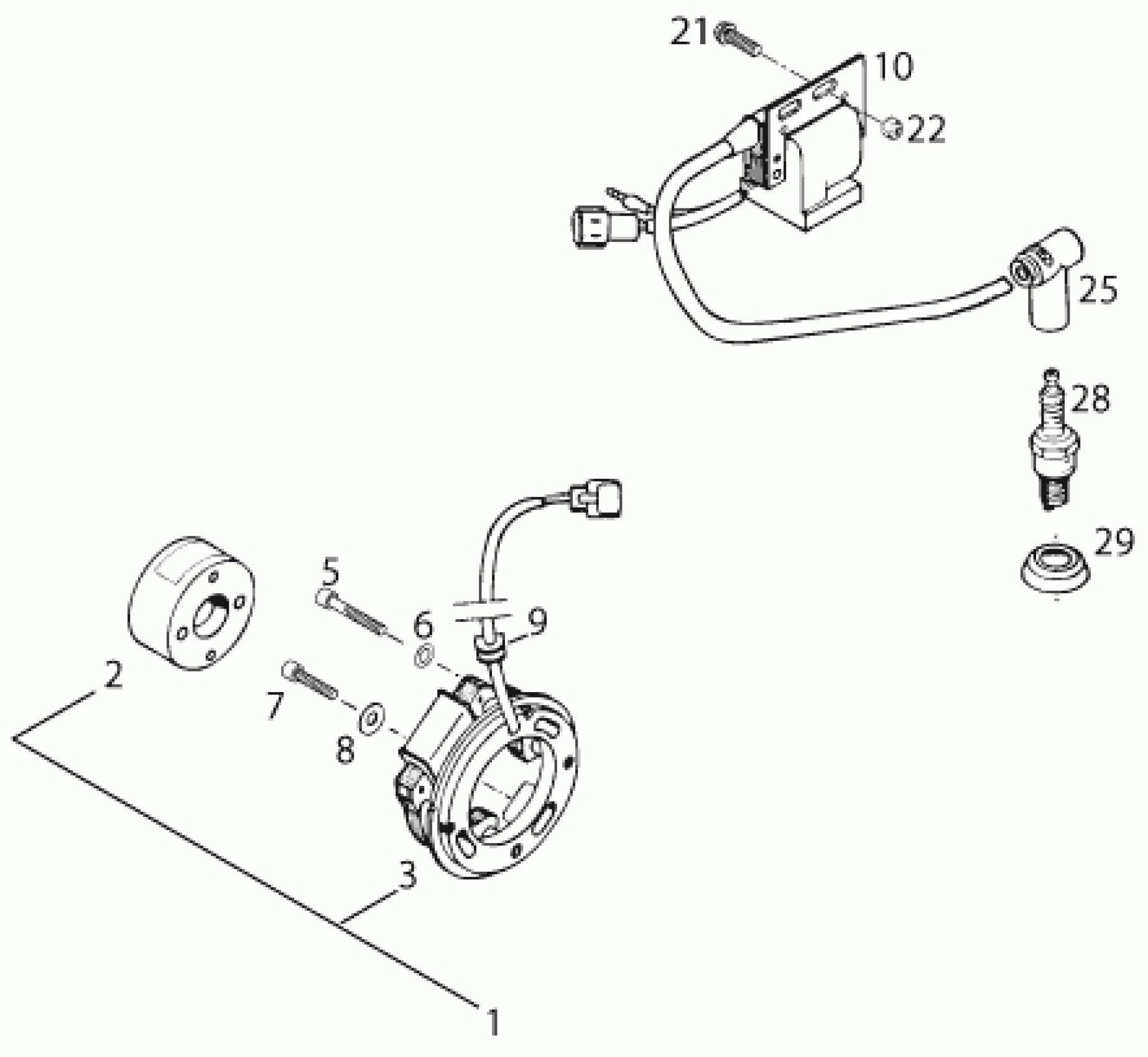

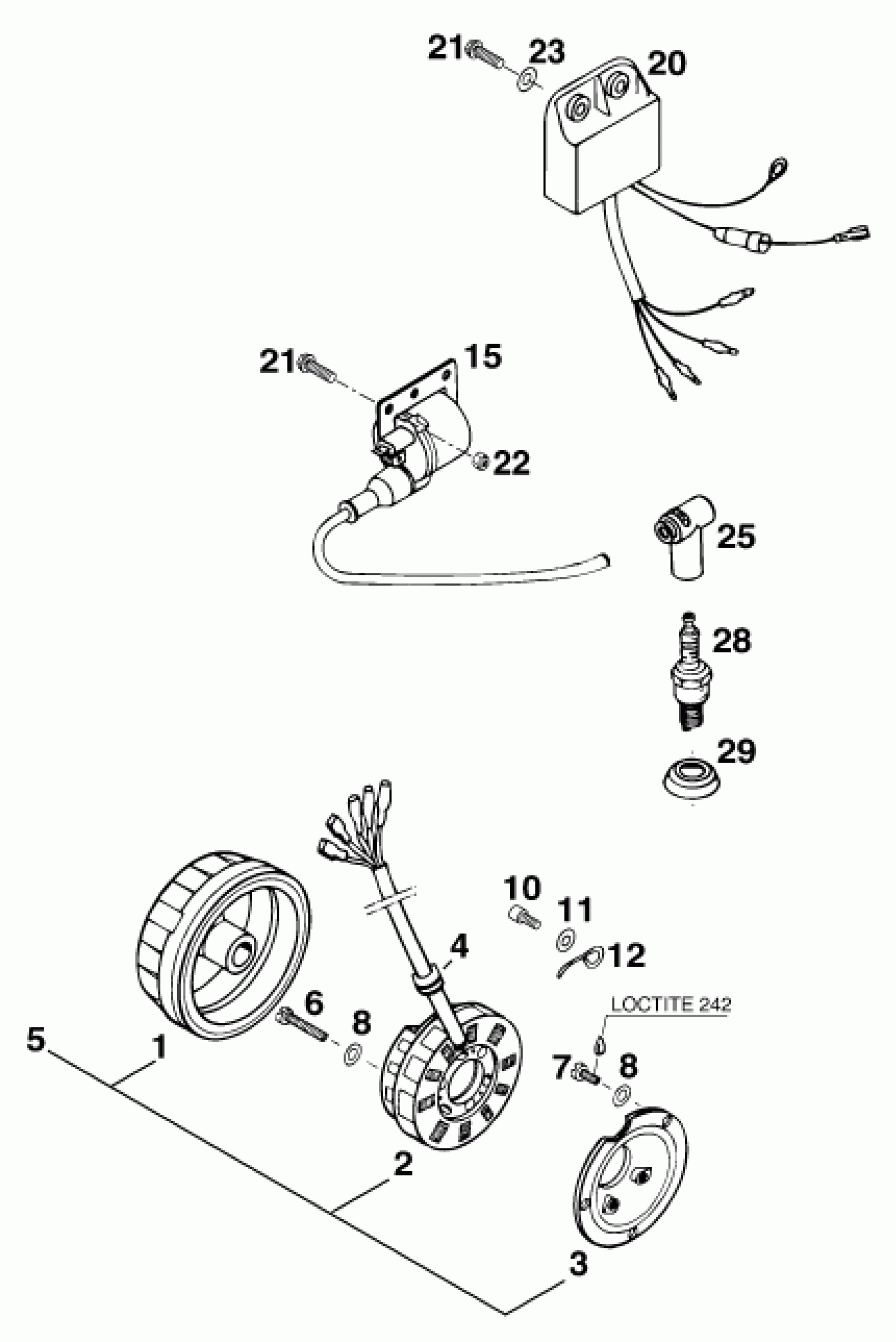

KTM 125 EXC M/Ö <1996> IGNITION SYSTEM Diagram

#

Description
Price

1

ROTOR K11/60G-05 '94

50231602050

$341.11

2

STATOR K11/60G-05''22'' '94

50231602051

$209.43

3

BASE PLATE ''10214101'' '94

50231602450

Unavailable

4

* CABLE GUIDE

51031004000

Unavailable

5

IGNITION SYSTEM K11 COMET

50231602000

Unavailable

6

PAN HEAD SCREW DIN85 M5x30

0085050303

$1.49

7

* PAN HEAD SCREW DIN85 M5x12

0085050123

Unavailable

8

WASHER DIN0125-A 5,3

0125050003

$1.49

10

AH SCREW DIN0912-M 5X12

0912050123

$2.05

11

* SPRING WASHER DIN0137-B 5

0137050003

Unavailable

12

BRACKET '94

50230090000

Unavailable

15

IGNITION COIL FACIND '94

54631806000

$55.45

20

DIGITAL BOX '94 125 GS

50231631000

Unavailable

21

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

22

Self lock. nut DIN985-M6-A2

0985060003

$2.05

23

Washer DIN9021-A 6.4

0021060003

$2.05

25

SPARK PLUG CAP LB05EMH N

54531010000

$31.44

28

SPARK PLUG NGK B10EGV

54331093110

$9.07

29

SEALING CUP FOR SPARK PLUG

50231012000

$4.11
