Description

Price

1

RADIATOR L/S 125 '95 (4.5216)

50235007300

$326.80

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

3

DASHBOARD

50235008300

Unavailable

4

RADIATOR PROTECTION LEFT '95

54635034200

$8.50

5

RADIATOR PROTECT.RIGHT '95

54635134200

$6.82

12

HOSE CLAMP GEMI 18-29

10001020000

$2.05

13

RADIATOR HOSE 18X25 130 DEGREE

54435025000

$21.51

14

SLEEVE FOR STEERING HEAD

54635022000

$1.54

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

* CABLE TIE 155MM

44011076155

Unavailable

17

PREFORMED HOSE 18X25 '95

50235025000

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

24

BUSHING

54635036000

$1.49

25

clip nut M6

54603048100

$4.11

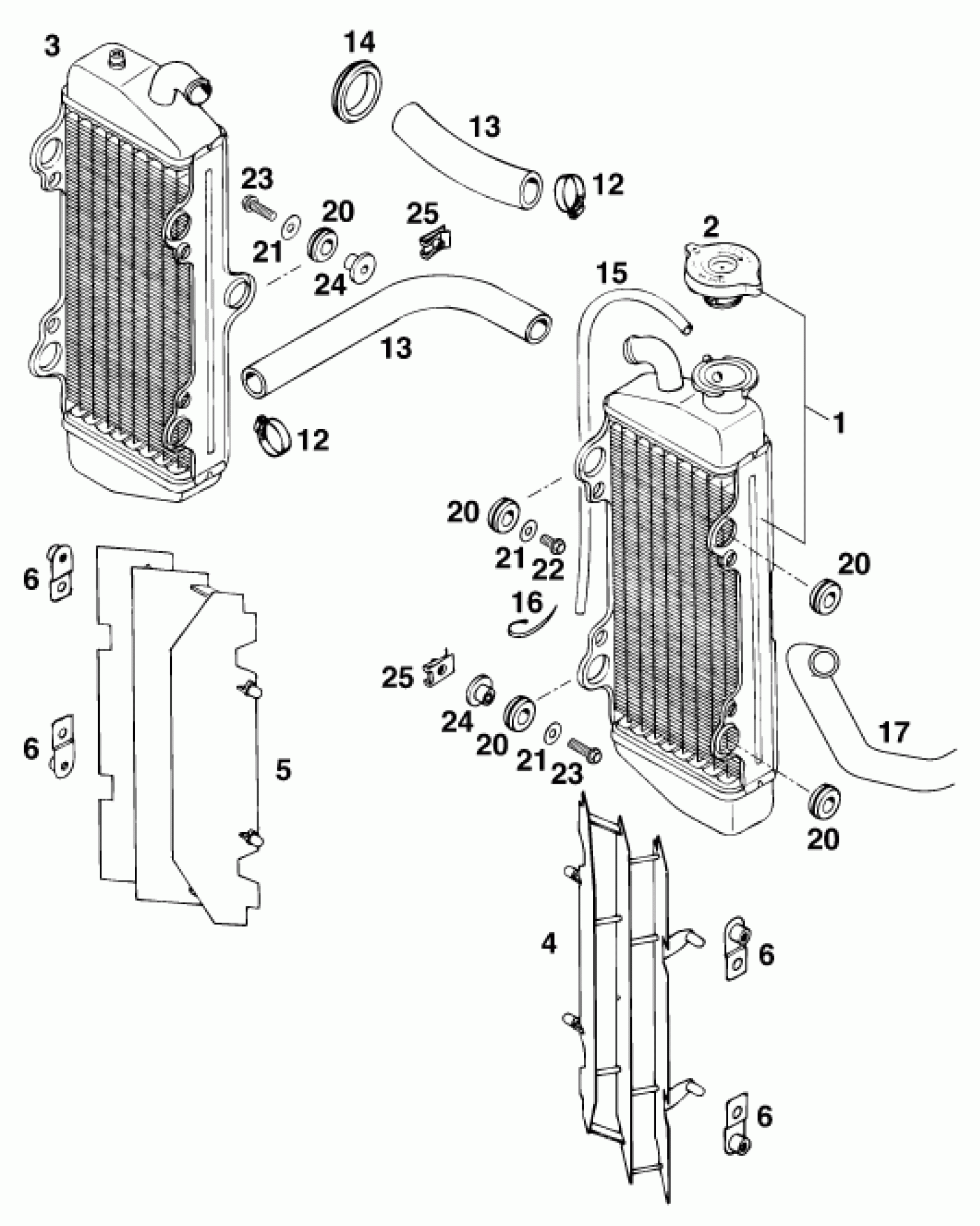

KTM 125 EXC M/Ö <1996 COOLING SYSTEM Diagram

RADIATOR L/S 125 '95 (4.5216)

RADIATOR CAP SMALL 20,3 PSI

DASHBOARD

RADIATOR PROTECTION LEFT '95

RADIATOR PROTECT.RIGHT '95

HOSE CLAMP GEMI 18-29

RADIATOR HOSE 18X25 130 DEGREE

SLEEVE FOR STEERING HEAD

PVC-HOSE 7X10 PER METER

* CABLE TIE 155MM

PREFORMED HOSE 18X25 '95

RUBBER SLEEVE D=12MM

WASHER 6,2X22X1,ST30,W.GALV.

HH COLLAR SCREW M 6X12 WS=8

HH COLLAR SCREW M 6X20 WS=8

BUSHING

clip nut M6
