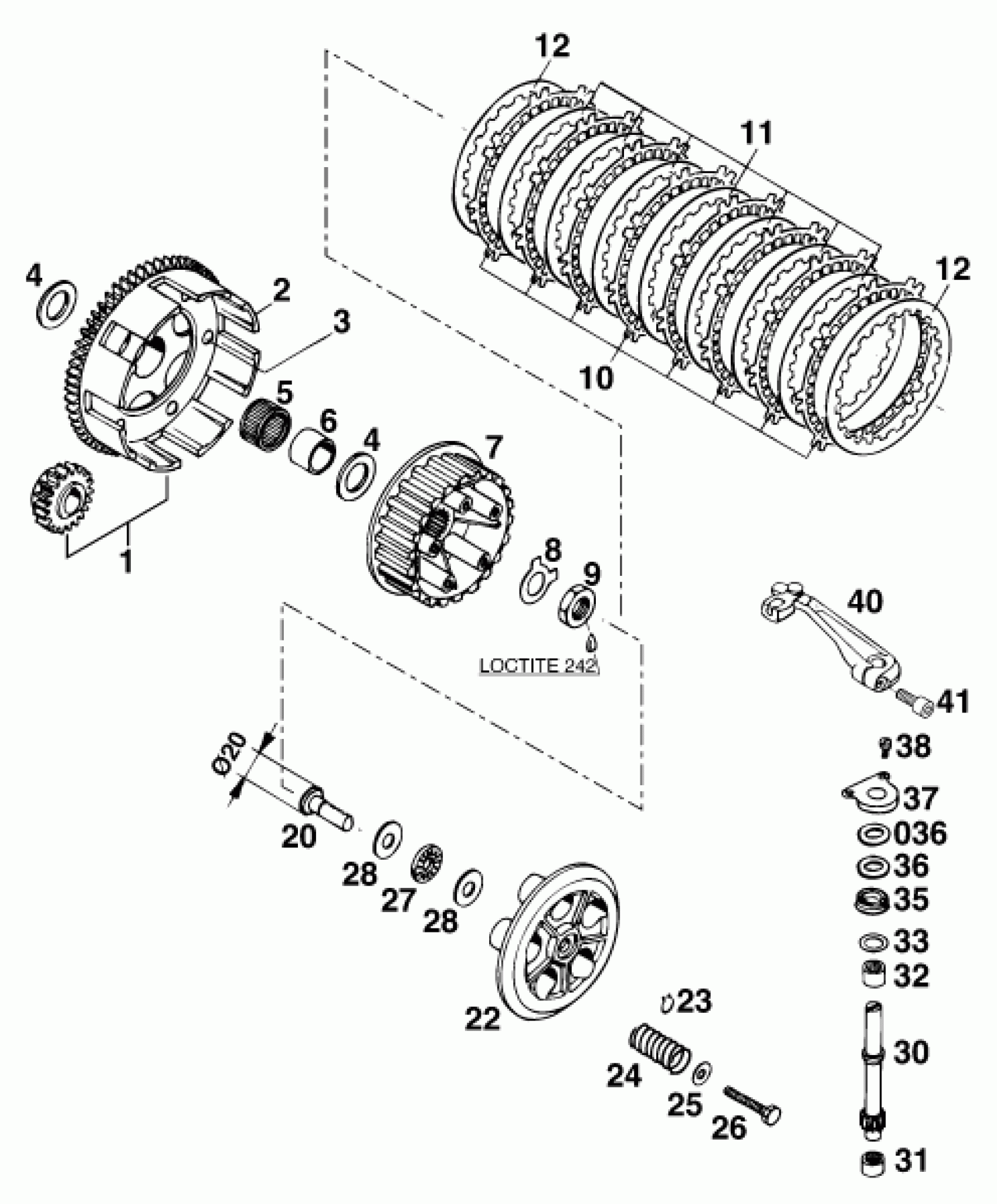

KTM 125 EXC M/Ö <1996> CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH HUB 125 '88-2

50232001661

$260.13

2

OUTER CLUTCH HUB LOOSE

50232001000

$60.58

3

RIVET DIN660 5x10 steel

0660050100

$1.49

4

STOP DISK 20,2X32X1,5

50132010000

$4.11

5

NEEDLE BEARING K24X28X17

50132095000

$19.31

6

* INNER RING 20X24X17

50132096000

Unavailable

7

INNER CLUTCH HUB 2MM

50132002200

Unavailable

8

LOCK WASHER

50132018100

$4.51

9

HEXAGON NUT DIN936 M16x1,5

0936160155

Unavailable

10

SINTERED LINING DISC 2MM '96

50232005300

$32.41

11

STEEL DISC 1MM

50132009100

$8.54

12

STEEL DISC 1,4MM

50132009200

$23.81

13

STOP DISK 14,3X20X2

49033031200

$1.49

20

PUSH BOLT

50332017000

$42.51

22

PRESSURE CAP

50132003200

$66.86

23

CIRCLIP DIN0471-10X1

0471100010

$2.05

24

CLUTCH PRESSURE SPRING 2,6X38

50232002000

$5.29

25

WASHER 6,2X18X2

50232050000

$5.23

26

HH SCREW DIN0933-M 6X20

0933060203

$1.49

27

*NEEDLE BEARING LOOSE10X28,3X2

56032030052

Unavailable

28

AXIAL WASHER 10,1X23,8X1

56032030050

Unavailable

30

CLUTCH RELEASE SHAFT 125 '92

50332015000

Unavailable

31

NEEDLE SLEEVE HK 0908 '92

50232095200

Unavailable

32

NEEDLE SLEEVE HK 1010

54637096000

$5.98

33

STOP DISK 10,1X17X1

50232030050

$2.61

35

GROOVE RING 10X20X5 PA 150

50332093000

$6.66

36

STOP DISK 14,3X20X1

49033031000

$5.23

37

RETAINING PLATE

50232013000

$2.77

38

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

40

CLUTCH RELEASE LEVER 125 '93

50232016200

$37.97

41

AH SCREW DIN0912-M 6X16

0912060163

$1.49
