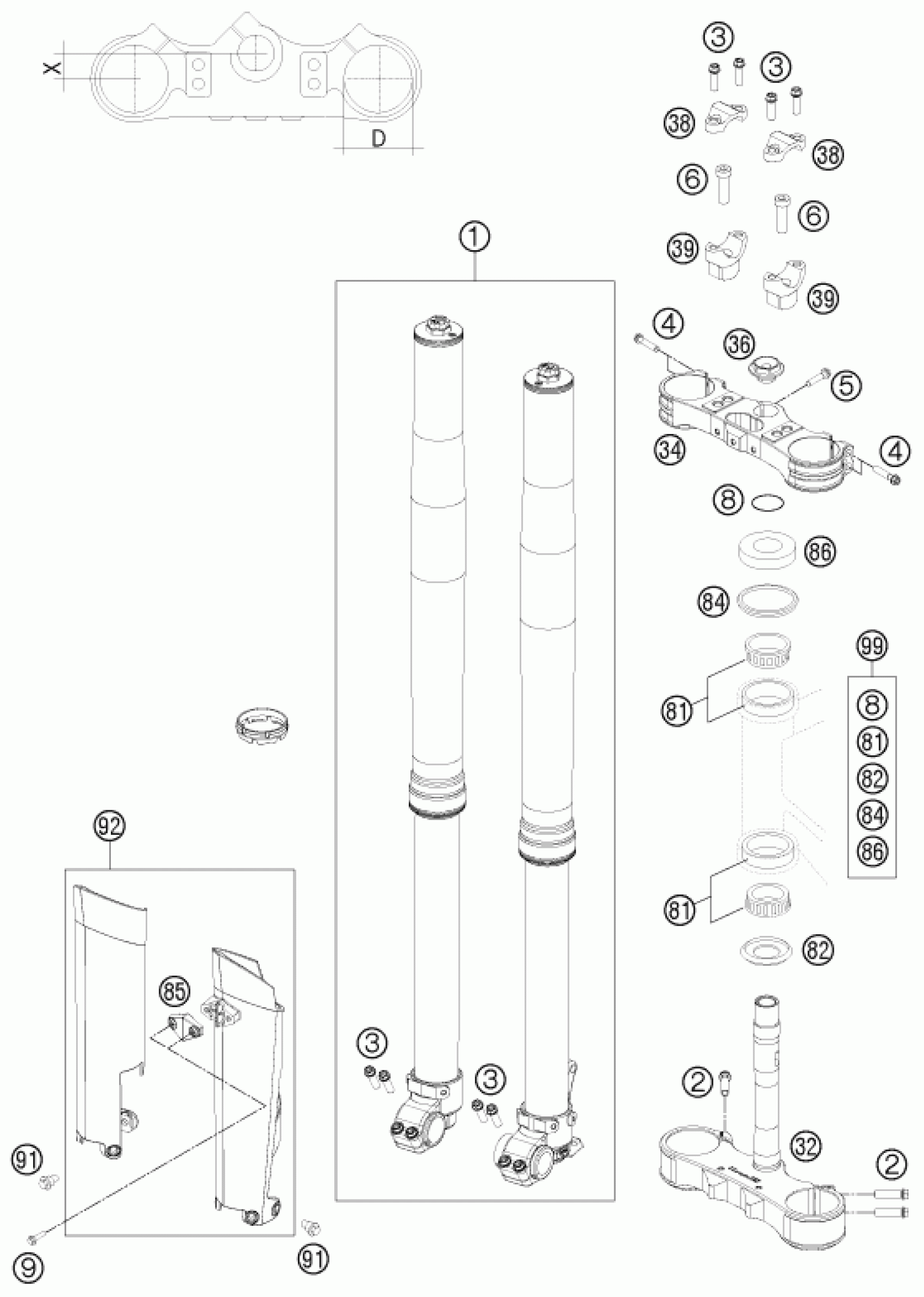

KTM 125 EXC FACTORY EDIT. 2011 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK KTM 125/200 EXC/XC-W2010

14187J0201

Unavailable

3

HH collar screw M8x25

0025080256

$2.05

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

HANDLEBAR CLAMP 28MM 05

59401038000

$25.05

39

Handlebar mount D28mm-H37mm

59401039037

Unavailable

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

5

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

32

BOT.FORK PLATE CPL.22MM ORANE

7800103202204

Unavailable

34

TOP TRIPLE CLAMP X=22MM OR

7720103402204

$271.80

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP F. SPEED. CABLE D=6MM 08

7800108500028

$5.23

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT L/S+R/S WHITE 09

7800109410028

$30.94

2

HH collar screw M8x35 TX40

0025080356

$4.11

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
