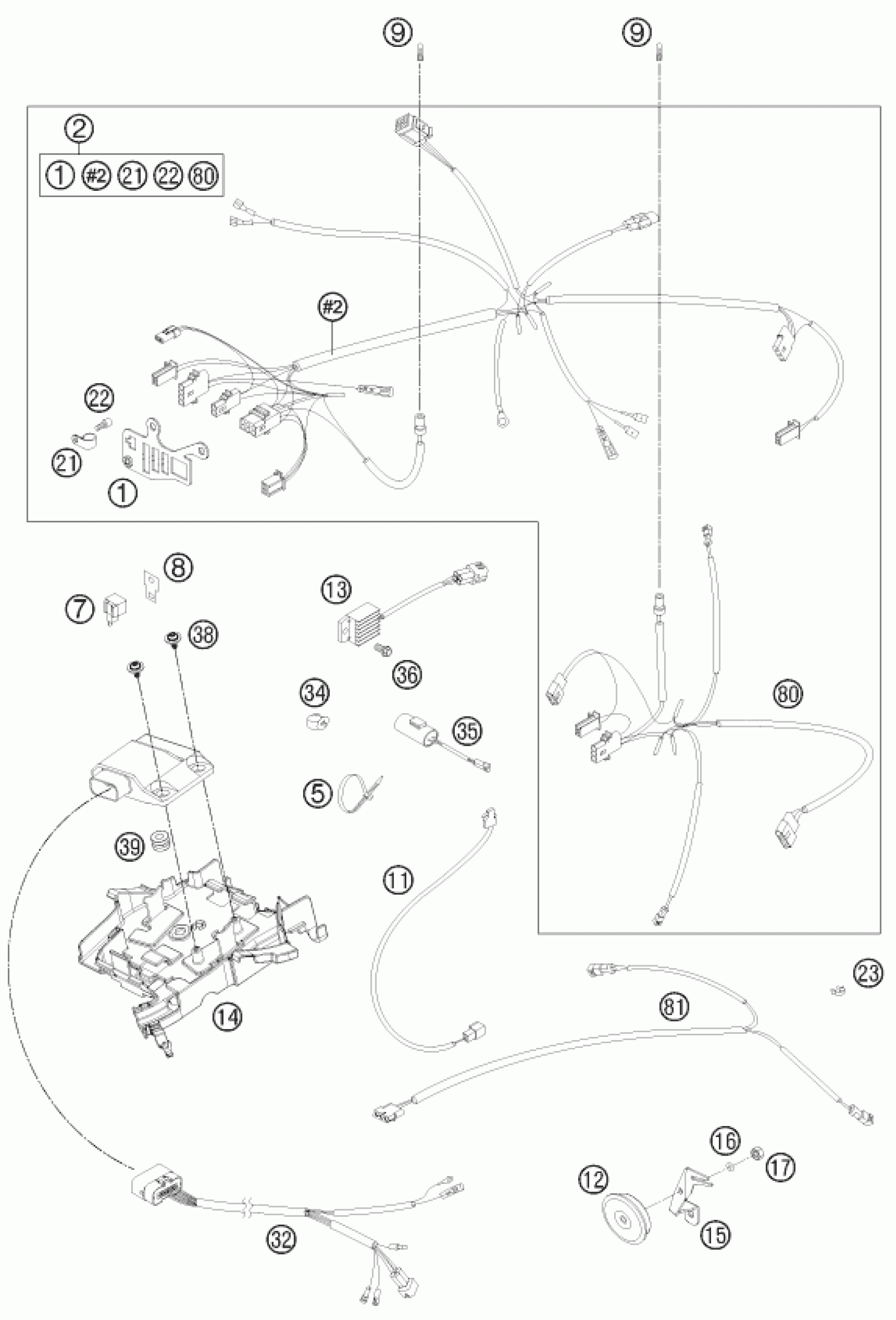

KTM 125 EXC 2012 WIRING HARNESS Diagram

#

Description
Price

5

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

7

FLASHER UNIT 97

44611207200

$49.83

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

9

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

11

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

12

DC HORN 12V 07

50311060200

$32.44

13

VOLTAGE REGULATOR 04

80011034000

$99.57

15

HORN BRACKET EXC 08

78011061000

$5.23

16

WASHER DIN0125-A 5,3

0125050003

$1.49

17

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

21

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

22

SHCS DIN 912 M5x8

0912050083

$1.49

23

WIRING HOLDER 12MM

57013072000

Unavailable

23

WIRING HOLDER 16MM

57013072100

Unavailable

34

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

35

CONDENSATOR 2200MF ADP-48 2000

50311035000

$76.01

36

COLLAR SCREW M6X12 TX

0023060123

$2.05

80

FLASH. WIRINGHARNESS FRONT 06

59011080100

Unavailable

81

REAR FLASHER WIR. HARNESS 12

77411081000

$23.37

14

ELECTRIC BOX

51511094000

$16.17

32

WIRING HARNESS FOR CDI 2-ST.07

54839032200

$78.53

38

EJOT PT SCREW K50X12 WN5452

0081650121

$2.05

39

rubber grommet 16x10.8x3

58214069051

$5.23

1

SUPPORT BRACKET EXC 2005

54811083100

$16.82

2

WIRING HARNESS 125/200EXC CP12

50311075900

Unavailable
