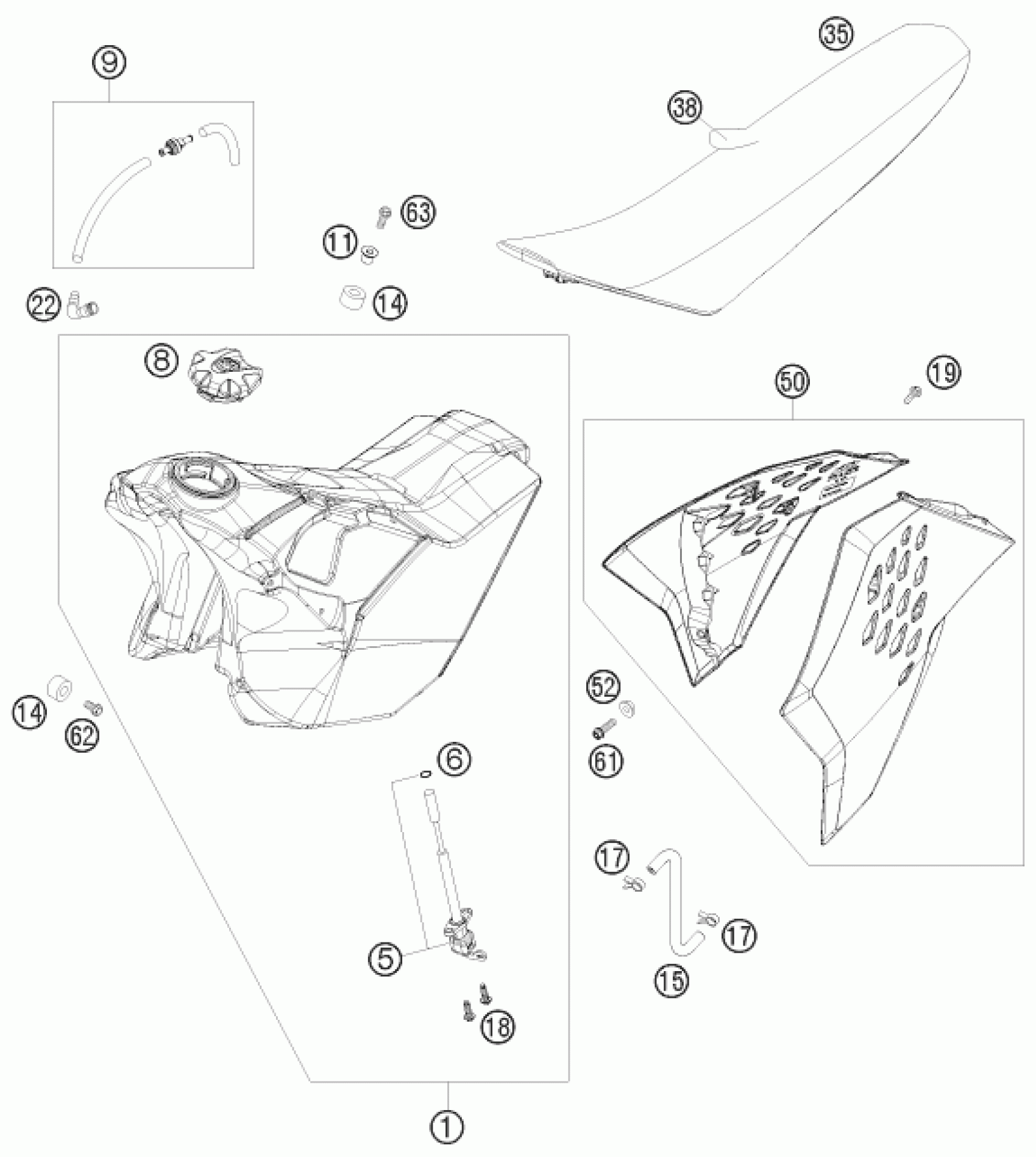

KTM 125 EXC 2010 TANK, SEAT Diagram

FUEL TANK CPL. 9,5L EXC 08

7700721306630

$274.86

GAS COCK ON/OFF/RES 08

78007004000

$28.04

O-RING 11X2 VITON

0770110021

$2.05

TANK PLUG ORANGE/BLACK

7800700804404

$29.07

TANK BREATHER HOSE + VALVE

78007029000

$21.68

TANK BUSHING 07

77307026000

$4.11

TANK ROLLER 12X26X12 '98

50307014000

$11.02

FUEL HOSE 2ST EXC 08

54807016100

$11.96

CLAMP YDNAC 10128 12MM

58031005000

$3.08

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

SEAT SX 07

77307040000

$153.80

SEAT COVER 07

77307040050

$54.22

SPOILER KIT ORANGE EXC/XC-W 10

7730805410004B

$66.05

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

HH collar screw M6x20 TX30

0025060206

$3.08

HH collar screw M6x12 TX30

0025060126

$3.08

COLLAR SCREW M6X27 TX

0024060273

$3.08
