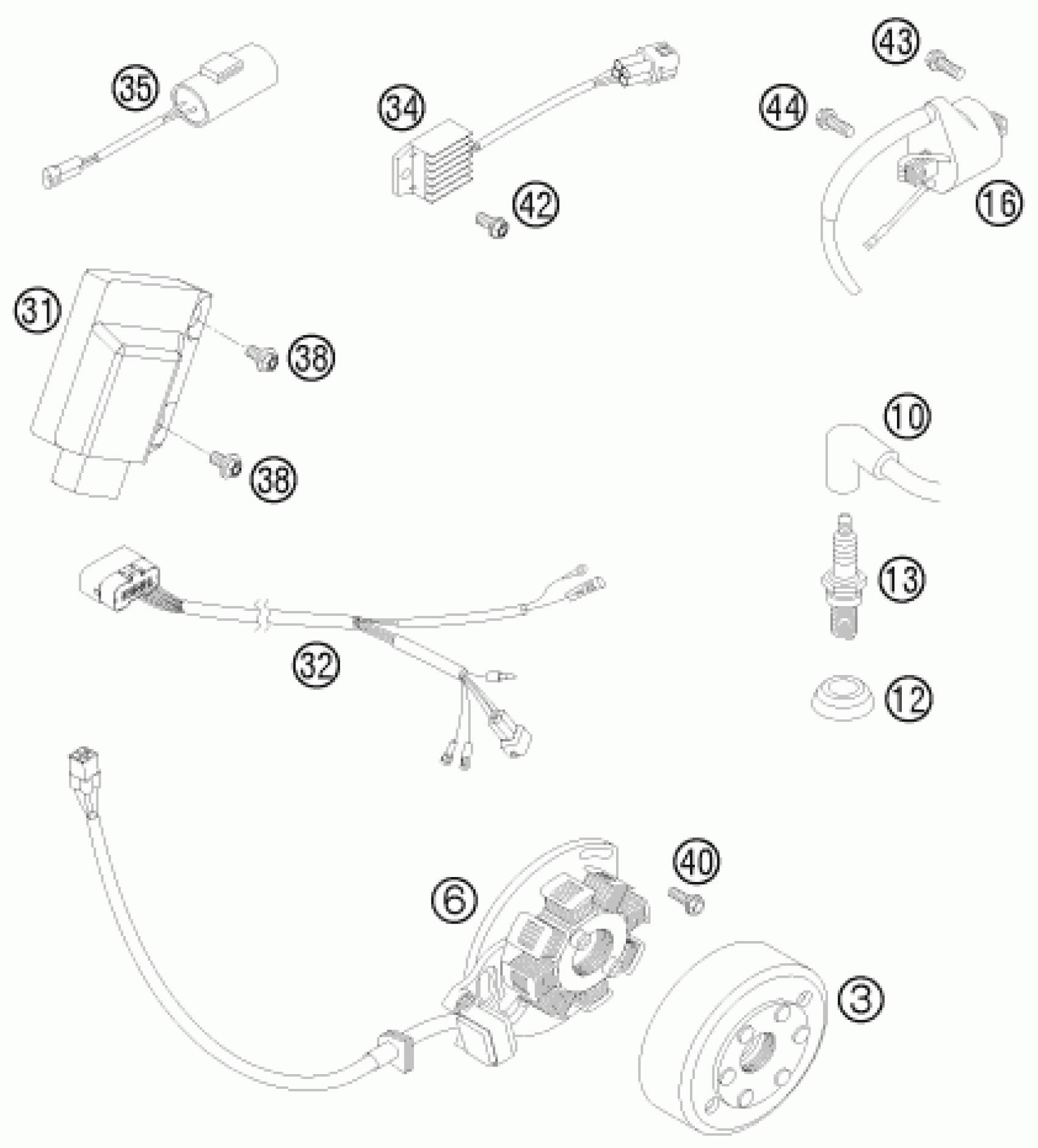

KTM 125 EXC 2010 IGNITION SYSTEM Diagram

#

Description
Price

3

FLYWHEEL KOKUSAN 2K-3 '98

50339005200

$263.76

6

STATOR KOKUSAN 2K-3 2005

54839204000

$245.90

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

$31.44

12

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

13

SPARK PLUG

51539093000

$17.57

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

31

CDI UNIT 125 EXC 07

50339031800

Unavailable

32

WIRING HARNESS F.CDI 2-ST.SX07

54839032300

$65.44

34

VOLTAGE REGULATOR 04

80011034000

$99.57

35

CONDENSATOR 2200MF ADP-48 2000

50311035000

$76.01

38

COLLAR SCREW M6X12 TX

0023060123

$2.05

40

HH collar screw M5x16 TX30

0025050166

$2.05

42

HH collar screw M6x12 TX30

0025060126

$3.08

43

HH collar screw M6x16 TX30

0025060166

$3.08

44

HH collar screw M6x20 TX30

0025060206

$3.08
