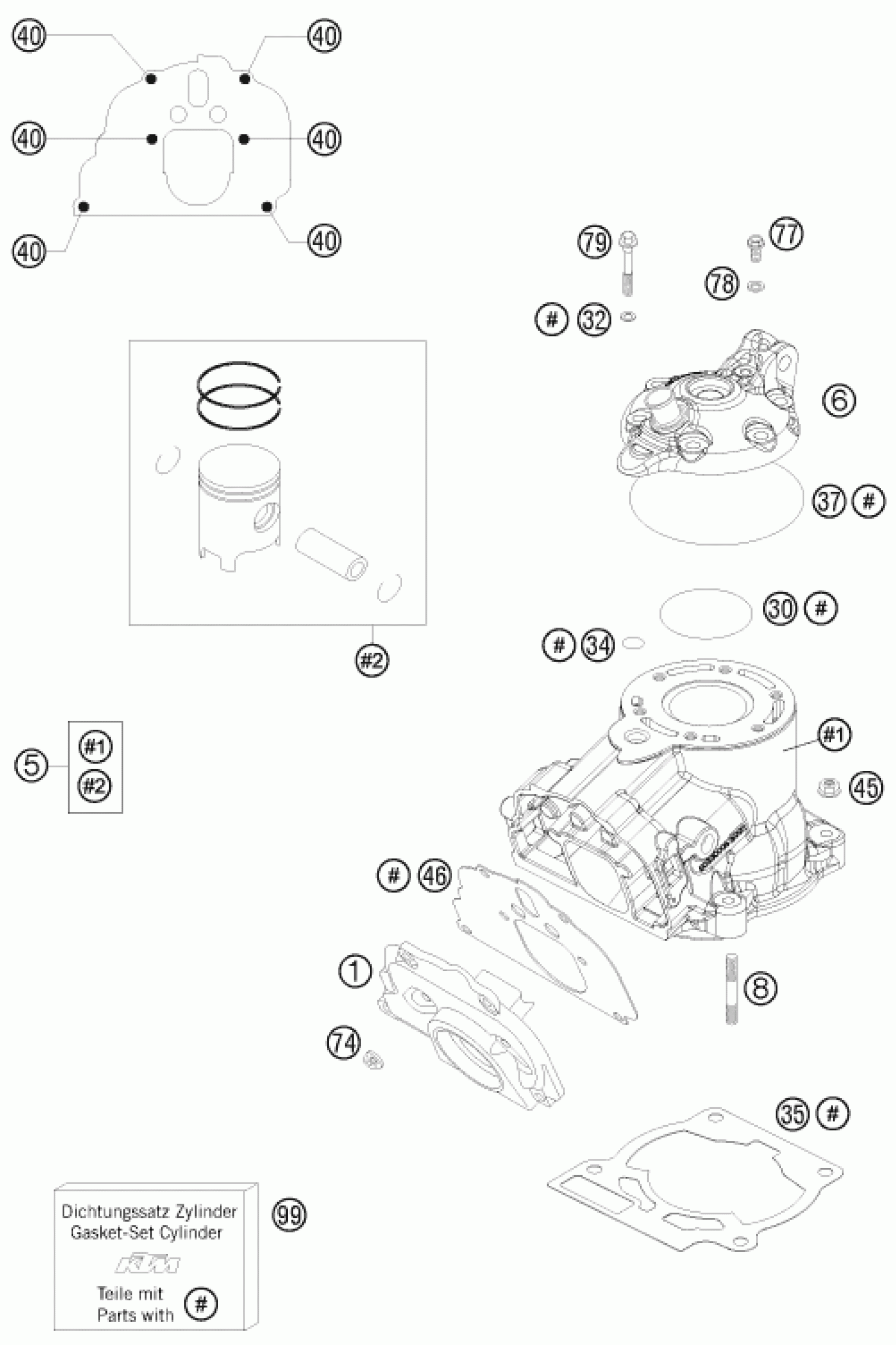

KTM 125 EXC 2010 CYLINDER, CYLINDER HEAD Diagram

CYLINDER+PISTON CPL.

50330038600

$884.50

CYLINDER HEAD 125 SX/EXC 07

50330006500

$173.53

STUD DIN0835-M 8X27

0835080276

$3.08

O-RING 62,00X2,00 VITON

0770062020

$9.34

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

O-RING 12X2 VITON GREEN

0770012021

$2.05

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

O-RING 86X2 VITON75SHORE GREEN

0770086020

$6.07

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

INTERMED. GASKET 125 06

50337046200

$8.03

RETAINING PLATE

51005074000

$3.08

HH collar screw M6x10 TX30

0025060106

$3.08

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

CYL. HEAD BOLT M 7X30 WS=10

50330079000

$3.08

CYLINDER GASKET SET 125/200 07

50330097100

Unavailable

INTERMEDIATE FLANGE 125 06

50337001200

$49.02
